Supporting transmission

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2011 BMW 323i, 2010 BMW 335xi, and 2010 BMW 335i. However, it is still accessible from the selected car via links, so may be relevant.

Support transmission with special tools 23 4 050 and 23 4 030 .

Secure transmission to mounting with tensioning strap (1).

Tasks are described in TRANSMISSION BRACKET .

After completion of work, check transmission oil level.

Fig 1: Supporting Transmission Using Special Tools 23 4 050

G04725990

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screws and nuts.

Remove cross-member (1).

Tightening torque 23 71 1AZ/2AZ .

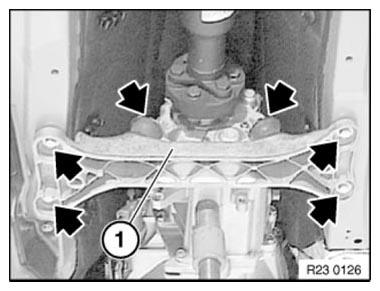

Fig 2: Locating Cross-Member Screws And Nuts

G06902873

Courtesy of BMW OF NORTH AMERICA, INC.

Remove propeller shaft from transmission.
Release center bearing.
Tie propeller shaft to one side.

Tasks are described in Removing PROPELLER SHAFT

NOTE: Pressure line of clutch slave cylinder remains connected.

IMPORTANT: Relieve tension on clutch slave cylinder slowly; otherwise air will be drawn in through sealing sleeve.

Release nuts (2) and remove clutch slave cylinder (1).

Fig 3: Locating Clutch Slave Cylinder Nut

G04725970

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE, 21 52 5AZ .

Detach locking clip.

Fig 4: Removing Locking Clip

G04726003

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: New retaining clips fitted as from 04.08.
Retaining clip must interlock captively with retaining web (1) behind shift rod pin.

Fig 5: Identifying Retaining Web

G05778020

Courtesy of BMW OF NORTH AMERICA, INC.

Pull shift rod (1) out of shift rod joint (2).
