2611000 Removing and installing propeller shaft (cardan universal joint) completely

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 BMW 328i, 2011 BMW 323i, 2010 BMW 335i, 2010 BMW 328i, and 2010 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

With four-wheel drive and on renewal only:
according to installation with BMW diagnosis and information system under control unit function

Perform functional check of transfer box (calibration)

Necessary preliminary tasks:

Remove front muffler (N45/N46/N46T/N45T/N53)
Remove complete EXHAUST SYSTEM (N51) or EXHAUST SYSTEM - REPAIR (N52)
Remove underbody protection
Remove heat shields

Release screws.

Installation:

Replace ZNS bolts and self-locking nuts.
Grip mounting bolts of flexible disk at nuts and tighten down by way of bolts.

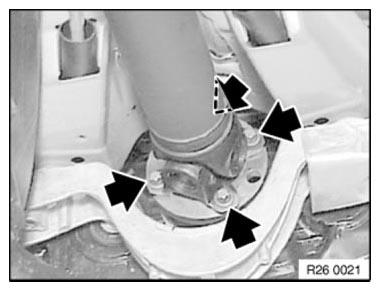

Fig 1: Locating ZNS Bolts And Self-Locking Nuts
Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws/bolts to specified torque.

Secure special tightening angle tool 00 9 120 TORSION ANGLE GAUGE with magnets 00 9 130 MAGNET to underbody and continue to bolt according to tightening angle. Tightening torque: 26 11 1AZ .

Fig 2: Securing Angle Of Rotation Using Special Tool (00 9 120) With Magnets (009130)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: To avoid complaints of humming:
Before removing propeller shaft, mark cardan universal joint to drive flange of rear differential.
Reinstall joint in accordance with marking.

Fig 3: Aligning Mark - Cardan Universal Joint To Drive Flange Of Rear Differential

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Graphic similar

Release screws.

Installation:

Replace ZNS bolts.

Fig 4: Locating ZNS Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Graphic similar

Tighten down screws/bolts to specified torque.

Secure special tightening angle tool 00 9 120 TORSION ANGLE GAUGE with magnets 00 9 130 MAGNET to underbody and continue to bolt according to tightening angle.

Tightening torque: 26 11 4AZ .

Fig 5: Securing Angle Of Rotation Using Special Tool (00 9 120) With Magnets (009130)

Courtesy of BMW OF NORTH AMERICA, INC.

Grip propeller shaft at center mount and release screws.

Tightening torque: 26 11 6AZ .

Detach propeller shaft from transmission output flange and remove towards bottom.

Fig 6: Identifying Centre Mount Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Check centering mount.

If necessary, replace damaged CENTRE BEARING .

Grease centering mount.

Grease: BMW Service. See PROPELLER SHAFT - OPERATING FLUIDS .

Fig 7: Locating Propeller Shaft Centering Mount
Courtesy of BMW OF NORTH AMERICA, INC.
