65 75 572 Removing and installing/replacing module for passenger compartment protection

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for center console. Refer to 51 16 212 REMOVING AND INSTALLING TRIM FOR CENTER CONSOLE .

Remove screws (1) and (2).

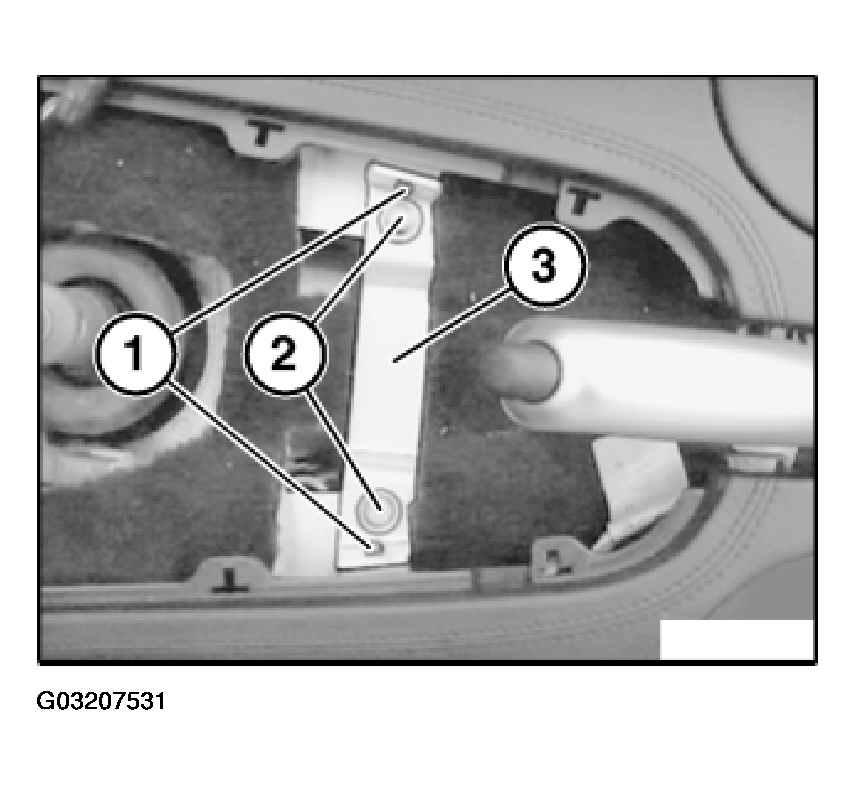

Fig 1: Removing Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Remove holder (3).

Cut floor carpet (1) at marked point.

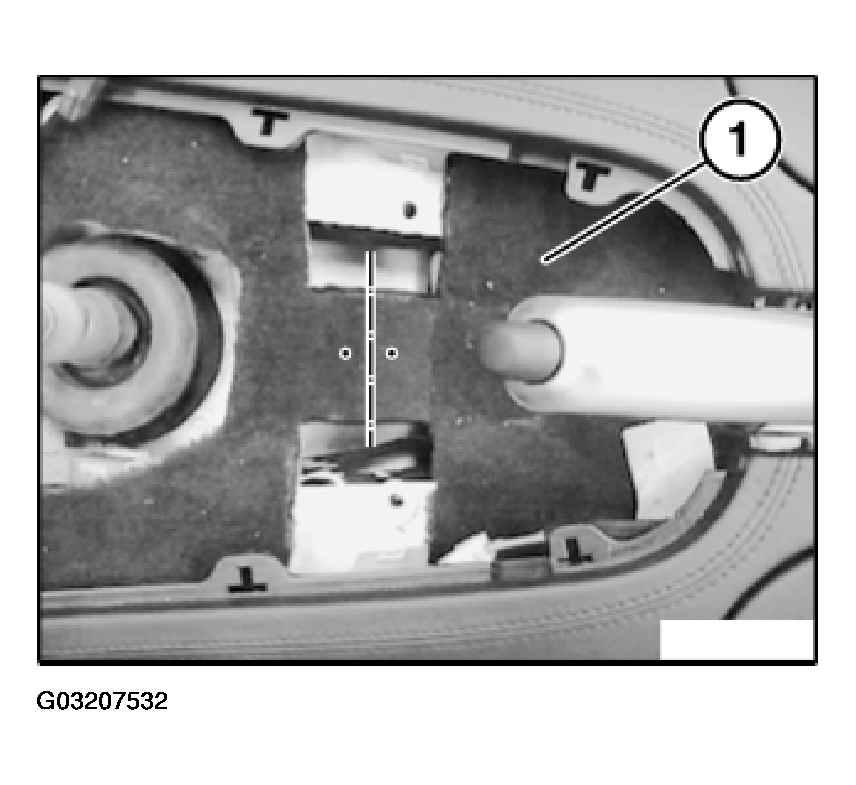

Fig 2: Identifying Marked Point On Floor Carpet

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Join cutting line at marked points with cable tape.

Insert a suitable screwdriver between module for passenger compartment sensor and holder.

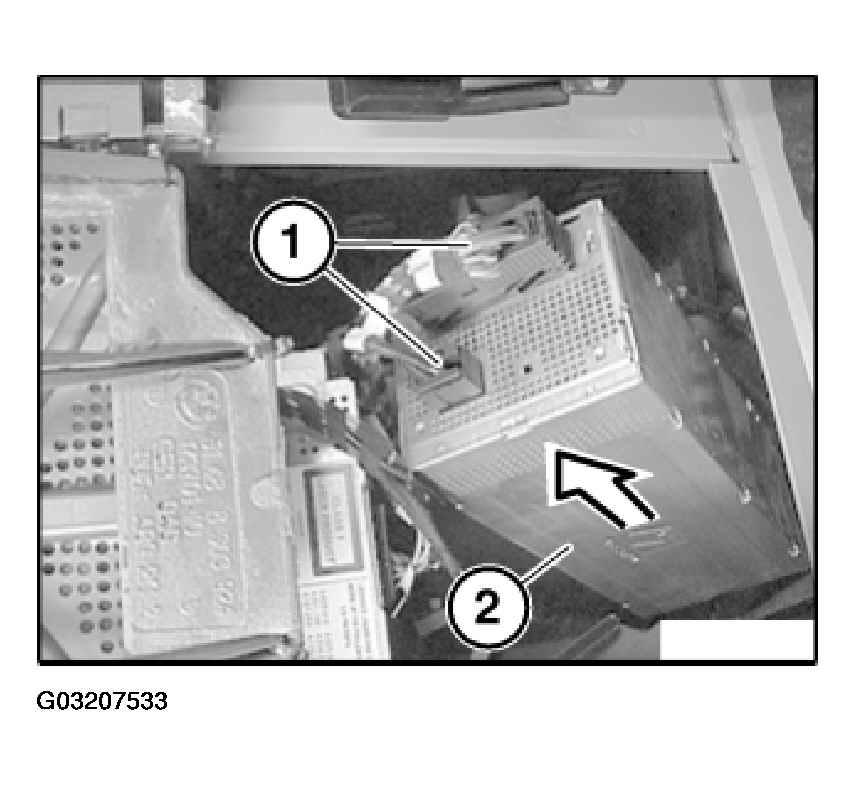

Fig 3: Detaching Module For Passenger Compartment Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Press down holder lock (1) by gently turning screwdriver.

Detach module for passenger compartment sensor (2) in direction of arrow from holder. Disconnect plug connection.

Installation:

If necessary, move lock (1) of holder to its original position. Make sure module for passenger compartment sensor is in correct installation position (arrow on housing pointing in direction of travel) and correct seating.
