64 11 834 Replacing servodrive of stratification flap

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove right glovebox with housing. Refer to 51 16 366 REMOVING AND INSTALLING RIGHT GLOVEBOX WITH HOUSING .

Remove heating duct for footwell on right. Refer to 64 11 820 Replacing servodrive of fresh air flap .

Disconnect plug connection (1).

Unclip servodrive (2) and pull out in direction of arrow.

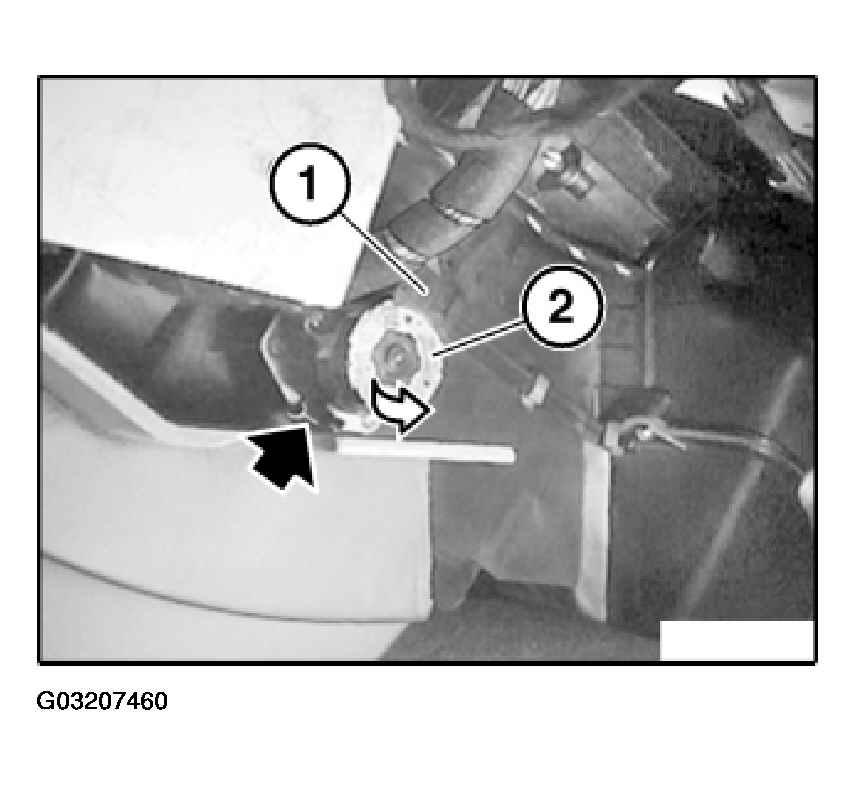

Fig 1: Removing Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, align shaft of ventilation flaps to position of servodrive.

Fig 2: Aligning Shaft Of Ventilation Flaps

Courtesy of BMW OF NORTH AMERICA, INC.
