64 11 271 Replacing water valve for heater

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Follow instructions for working on cooling system. Refer to 17 00 INSTRUCTIONS FOR WORKING ON COOLING SYSTEM .

WARNING: Danger of scalding!

Only perform this work after engine has cooled down.

Disconnect plug connection (1).

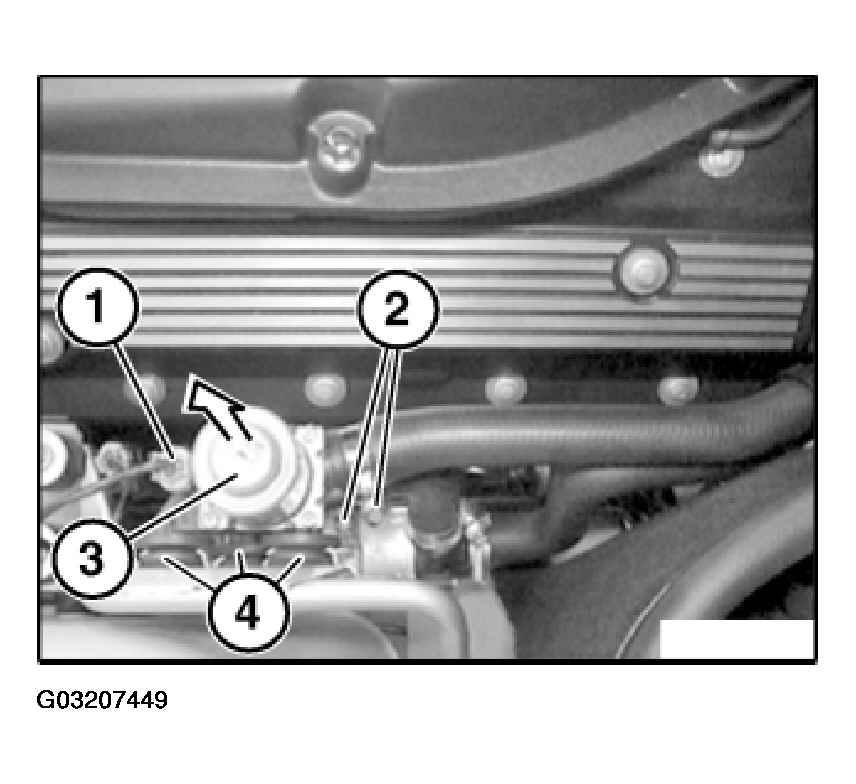

Fig 1: Pulling Out Water Valve For Heater

Courtesy of BMW OF NORTH AMERICA, INC.

Release hose clamps (2) and detach water hoses.

Pull out water valve for heater (3) in direction of arrow and remove.

Installation:

Ensure grommets (4) are correctly seated.

Top up coolant. Refer to 17 00 005 DRAINING AND ADDING COOLANT (S62) .
