64 11 213 Removing and installing/replacing blower for heater/air conditioner

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove resistor for heater blower. Refer to 64 11 220 Removing and installing/replacing resistor for heater blower .

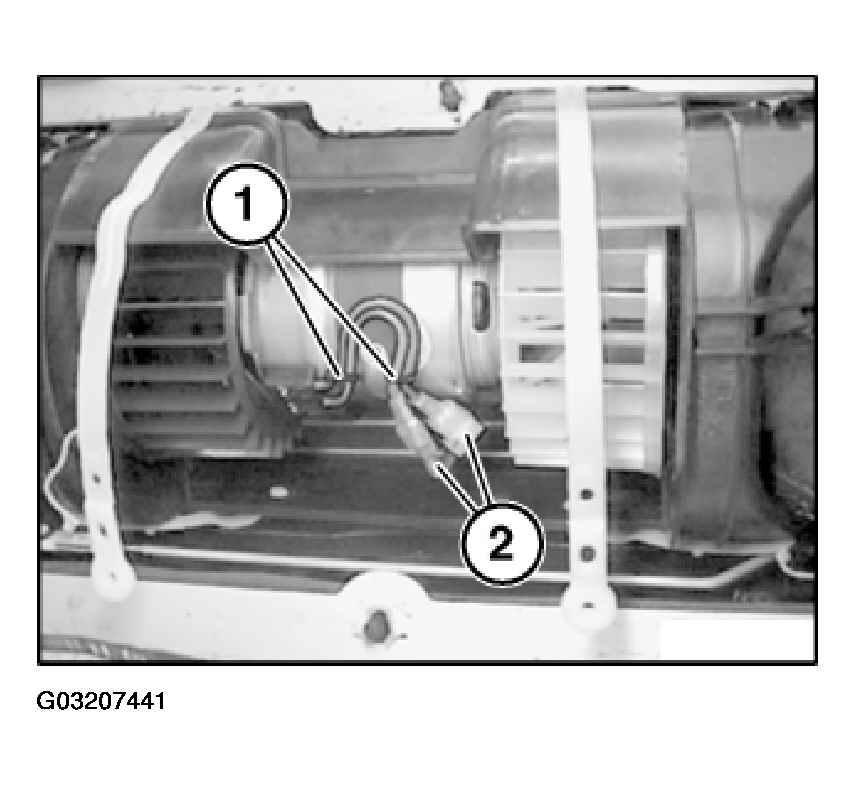

Release cable ties (1).

Disconnect plug connections (2).

Fig 1: Disconnecting Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

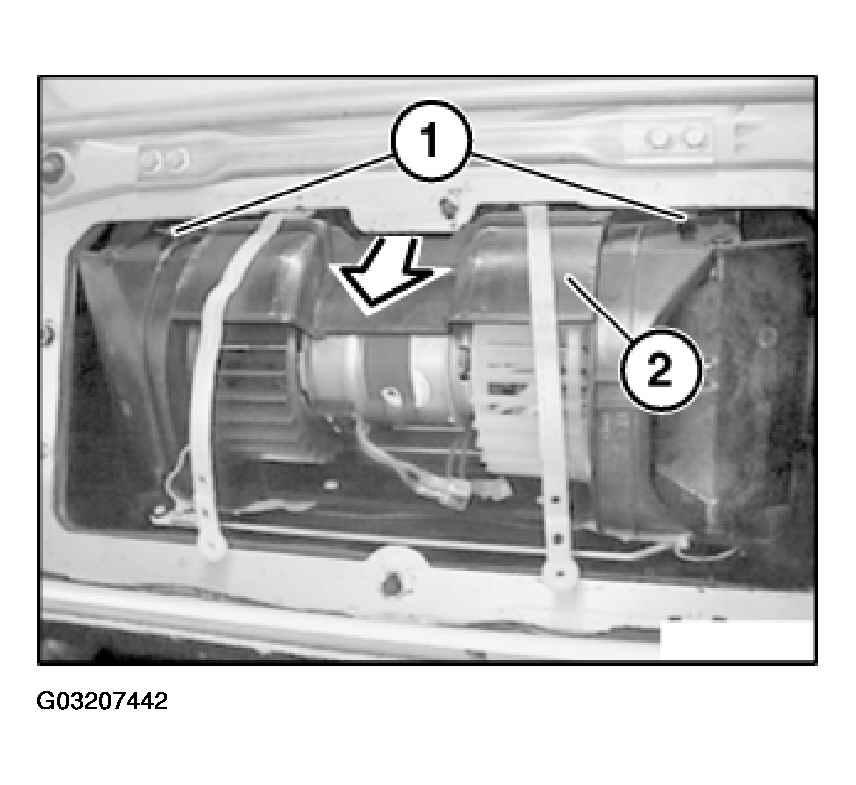

Unclip retainers (1).

Lift off blower tray (2) carefully in direction of arrow.

Fig 2: Removing Blower Tray

Courtesy of BMW OF NORTH AMERICA, INC.

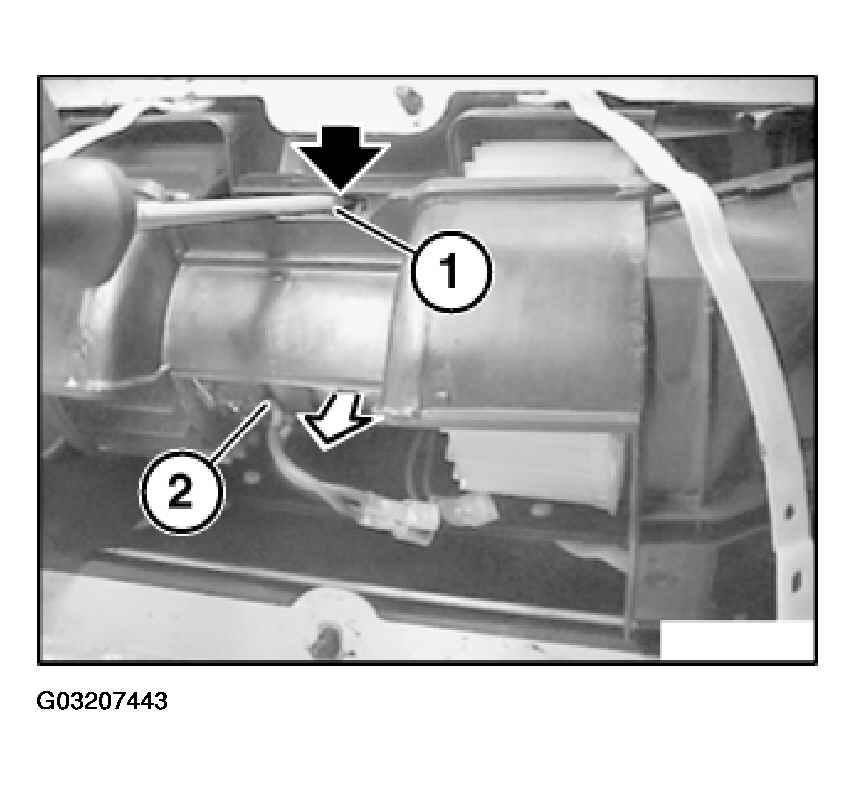

Lever out lug (1) with screwdriver and feed out.

Remove blower for heater - A/C unit (2) in direction of arrow.

Fig 3: Removing Blower For Heater - A/C Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

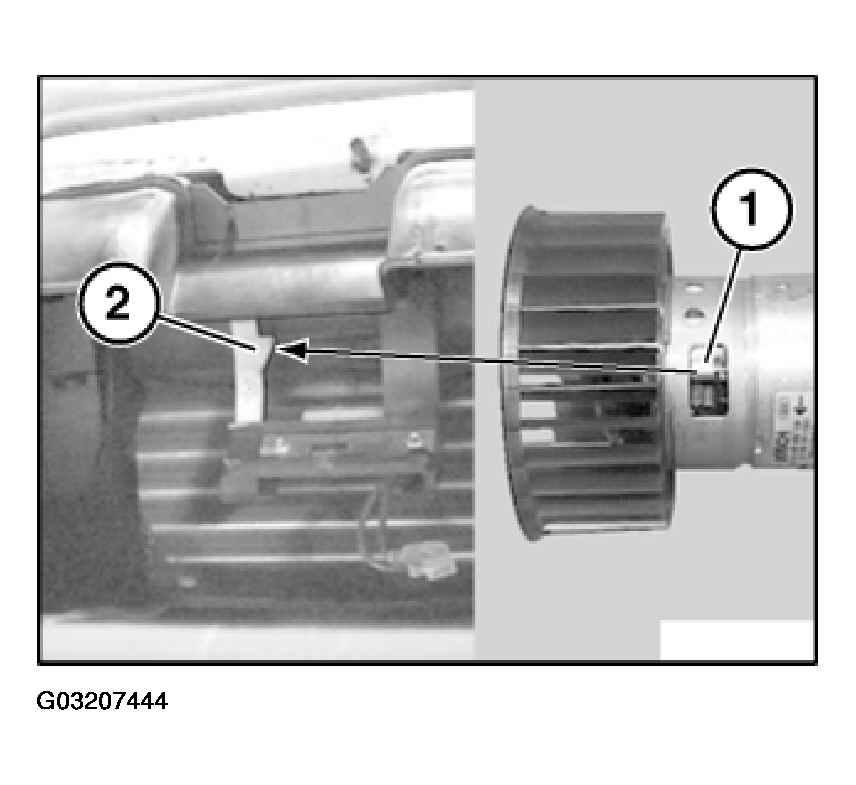

Window (1) of blower motor must snap into place in link (2).

Fig 4: Identifying Window Of Blower Motor

Courtesy of BMW OF NORTH AMERICA, INC.
