63 99 401 Replacing bulb for left or right license-plate light

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove license plate light. Refer to 63 26 020 Removing and installing/replacing both license plate lights .

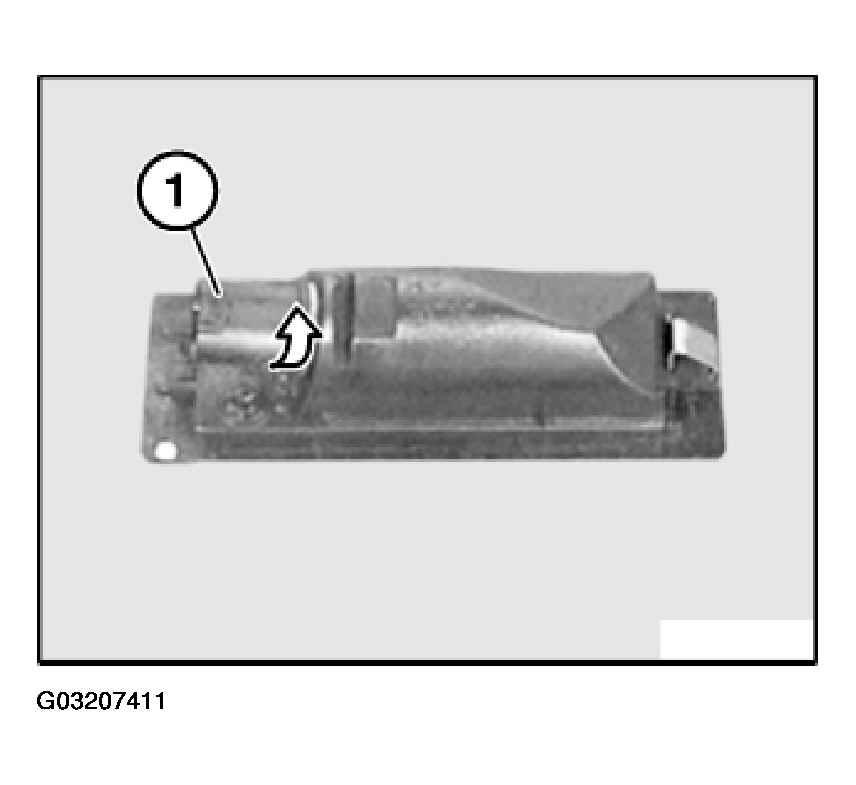

Turn bulb holder (1) through approx. 90° in direction of arrow and pull out.

Fig 1: Removing Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

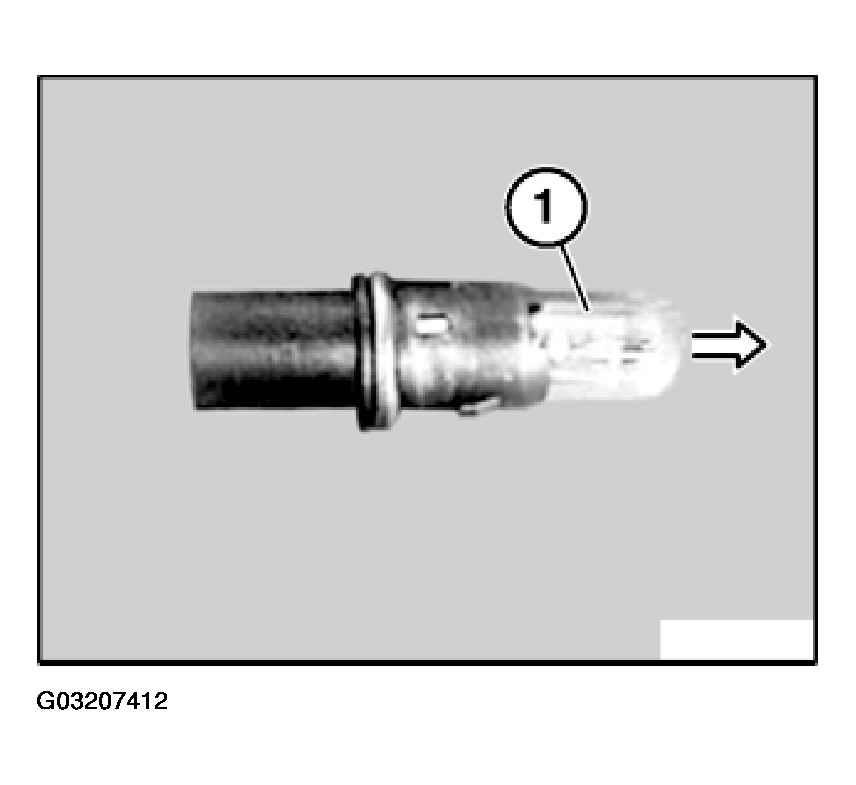

Detach bulb (1) in direction of arrow.

Fig 2: Detaching Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Do not touch glass part of bulb with bare fingers. Only take hold of bulb on base and use either a clean cloth or the lamp packaging.

NOTE: Note type of bulb. Refer to LIGHTS - TECHNICAL DATA .
