63 26 020 Removing and installing/replacing both license plate lights

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

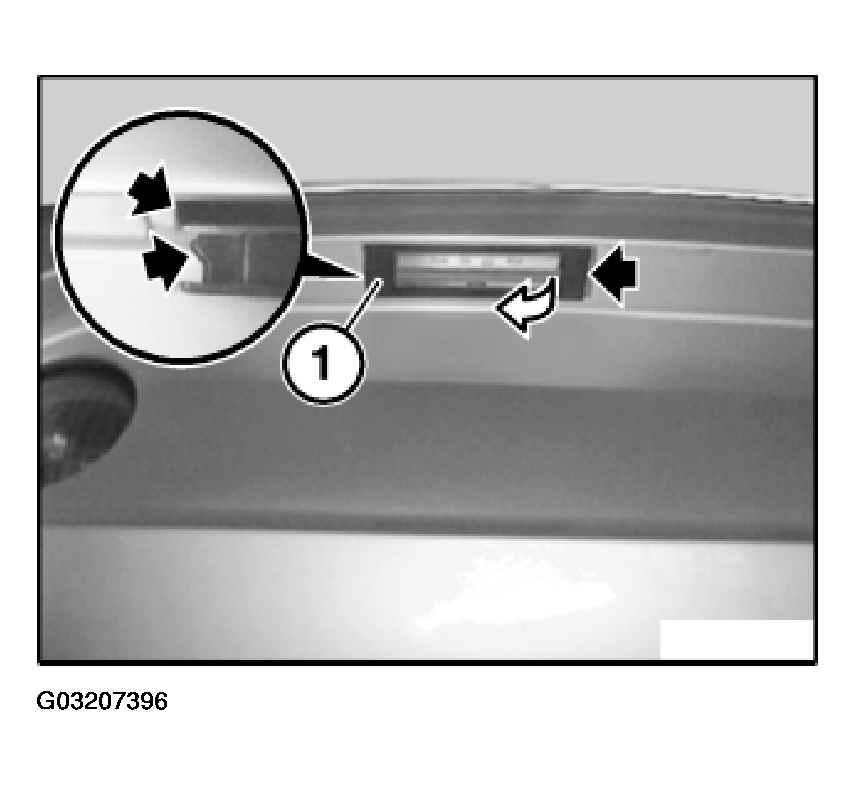

Lever out license plate light (1) from opening in direction of arrow and remove.

Fig 1: Removing License Plate Light

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection.

Installation:

First feed guide into rear lid.
