63 12 860 Replacing control unit for left xenon headlight

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove left headlight. Refer to 63 12 005 Removing and installing/replacing left headlight .

Pull off cap (1) in direction of arrow.

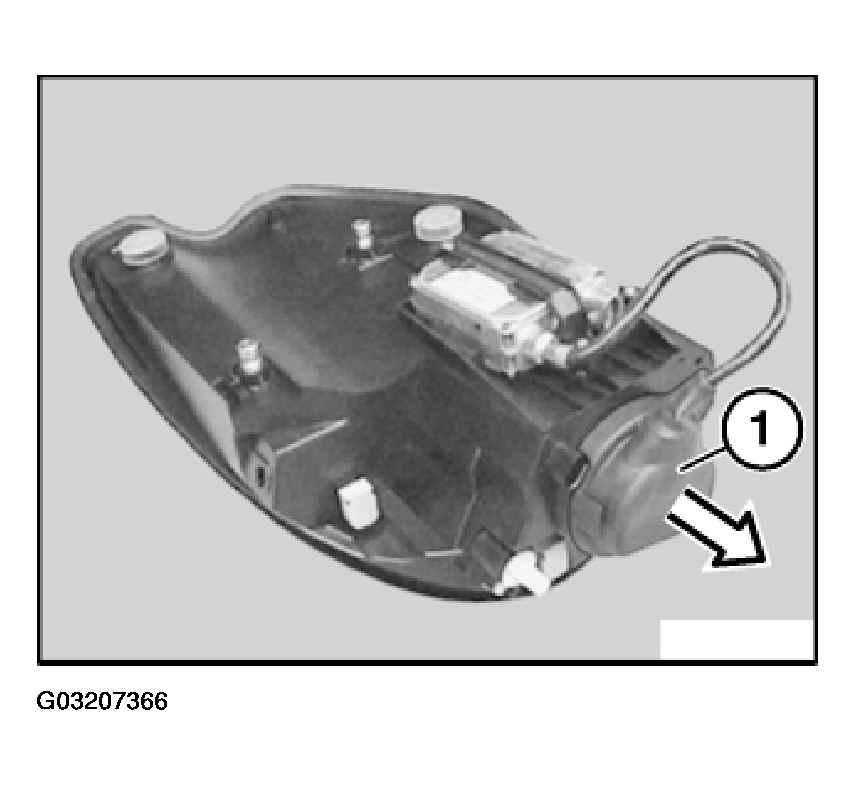

Fig 1: Pulling Off Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Turn plug connection (1) through approx. 45° in direction of arrow and disconnect.

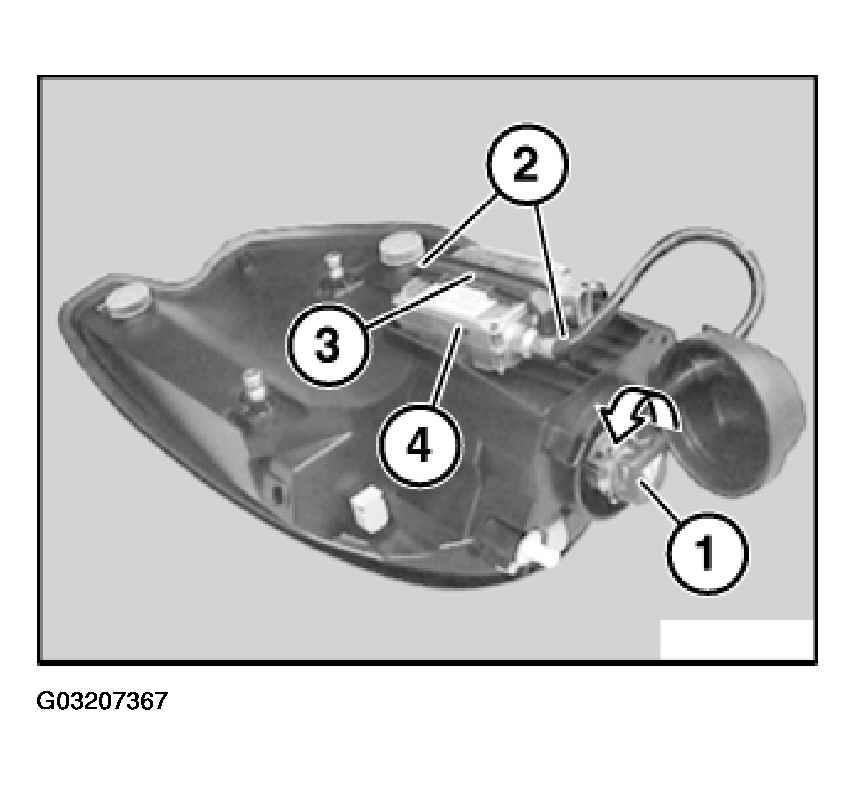

Fig 2: Removing Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) and remove bracket (3).

Lift off control unit for xenon headlight (4).
