61 11 ... Replacing wiring harness for right door
Open convertible top.
Necessary preliminary tasks:
- Remove right front seat. Refer to 52 16 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT .
- Disconnect battery negative lead. Refer to 12 00 ... Instructions for disconnecting and connecting battery .
- Remove footwell side trim panel from right A-pillar. Refer to 51 43 075 REMOVING AND INSTALLING/REPLACING SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, RIGHT .
- If necessary, remove footwell sound insulation under side trim panel from A-pillar.
- Remove sound insulation from right front door. Refer to 51 48 ... REMOVING AND INSTALLING/REPLACING ACOUSTIC INSULATION ON LEFT OR RIGHT FRONT DOOR .
Removal:
Subsequent removal of the wiring harness is described separately from installation.
- Ashtray light, front (X1213)
- Adapter plug, glovebox (X310B)
Above-mentioned operational leads remain fitted.
Repair faulty leads.

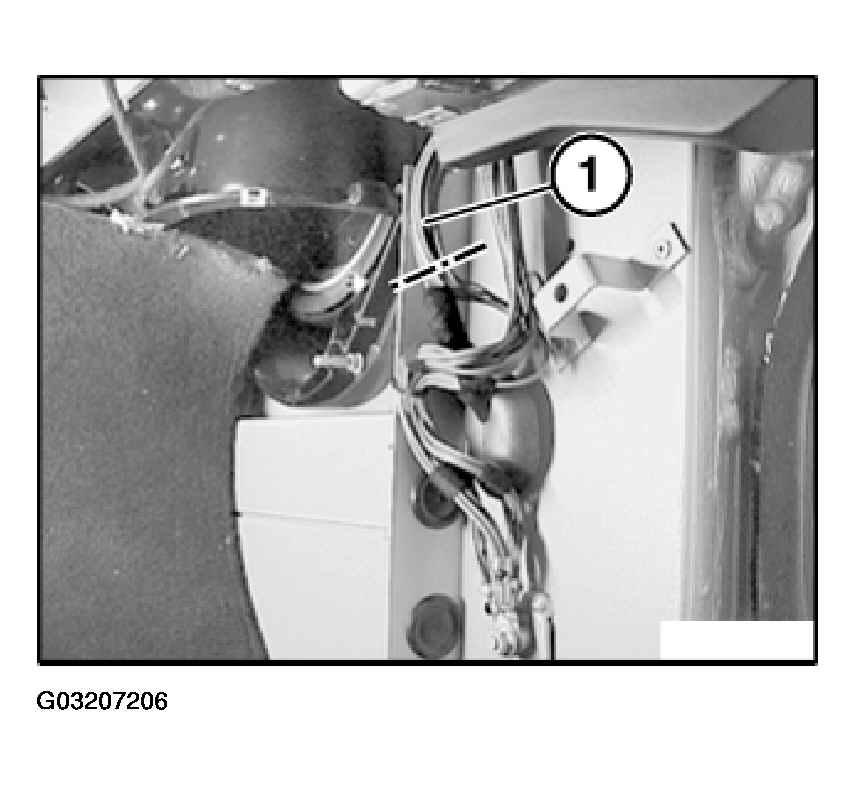

Cut through right door wiring harness (1) as illustrated with sufficient excess length.
Detach cut-off wiring harness from right door and remove.
If necessary, repair faulty leads.
Installation:
Installation of the wiring harness is described separately from removal.
General information:
Notes on assignment of repair connector:
Refer to DIS under Component and signal information / plug, fan and soldered connectors / connectors from X1... / X18993B.
Procedure:
- Fit all cut leads of main wiring harness with stop parts.
- Pin in leads in accordance with schematic in DIS.
- Strip insulation from cable.
- Crimp stop parts. Refer to 61 13 ... Crimping Micro Power Quadlock contacts (MPQ) and 61 13 ... Crimping Micro Quadlock System contacts (MQS) .
- Connect precrimped leads to corresponding plugs (refer to schematic).
- Follow notes and instructions on installing/removing multiple connector systems. Refer to 61 13 ... Opening plug housings and removing contacts of different plug systems .
- Replace cable ties that have been cut open.

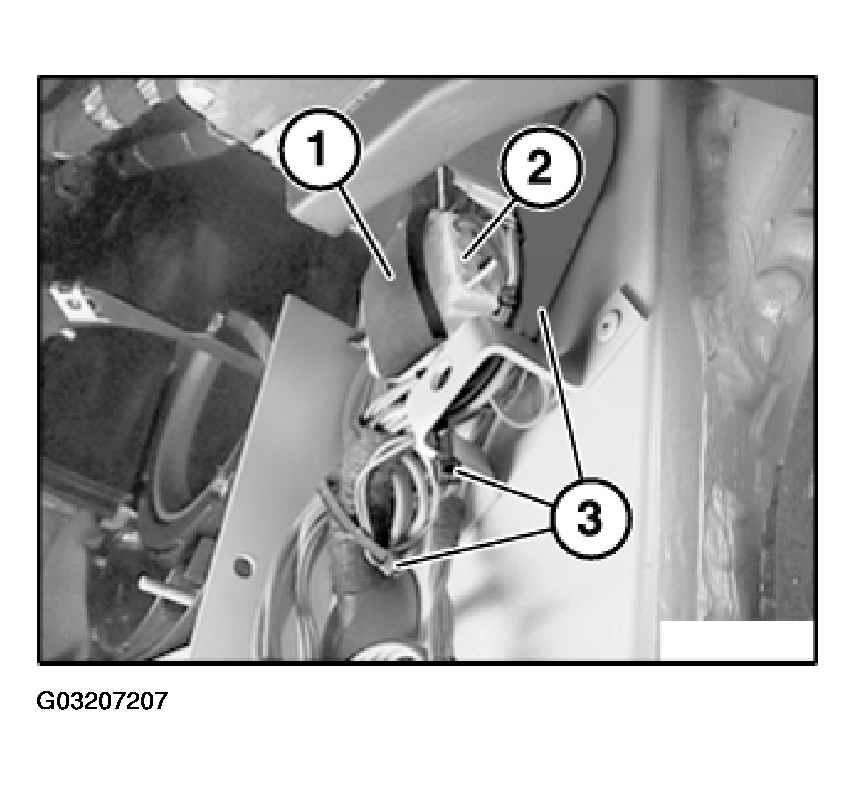

Stick foam pads (1) as illustrated around repair connector (2).
Secure repair connector (2) using cable ties (3) from repair kit.
