51 43 075 Removing and installing/replacing side trim panel, footwell, on A-pillar, right
WARNING: This page is about a different car, the 2003 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.
Remove trim for entrance at front right. Refer to 51 47 000 Removing and installing/replacing left or right entrance cover strip .
Remove cover for speaker on right. Refer to 51 45 135 Removing and installing/replacing speaker cover on right .

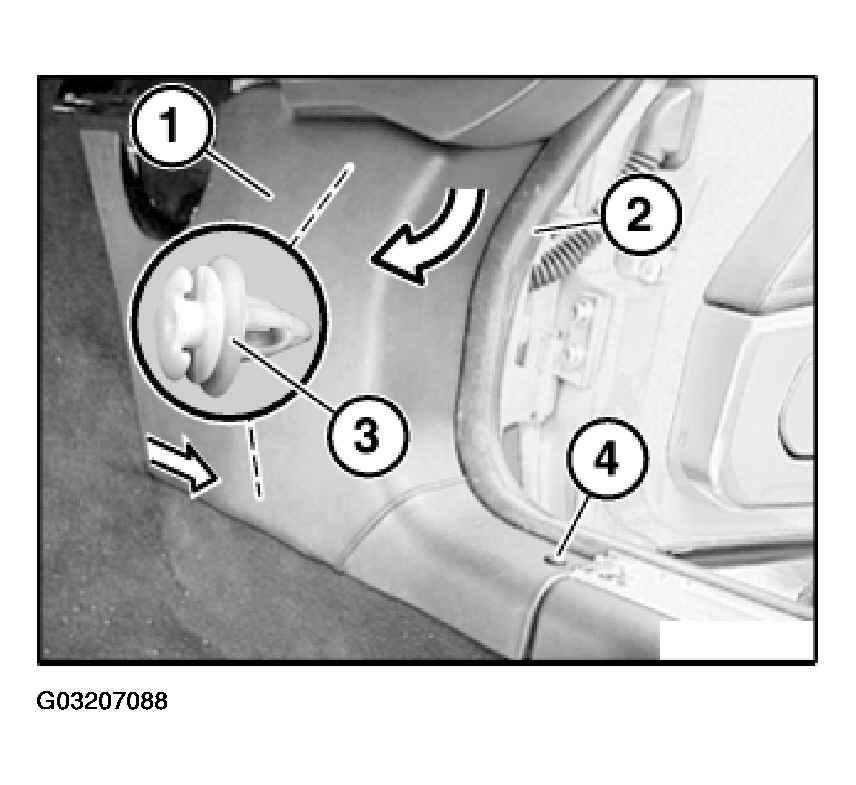

Partially detach door seal (2) in area of side trim panel (1).
Release screw (4).
Unclip clips (3).
Feed out side trim panel (1) under instrument panel and detach towards rear.
