61 71 015 Removing and installing/replacing a jet nozzle in windshield washer system

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Partially detach acoustic insulation in engine hood.

NOTE: For purposes of clarity, illustration shows engine hood without acoustic insulation.

Disconnect plug connection (1).

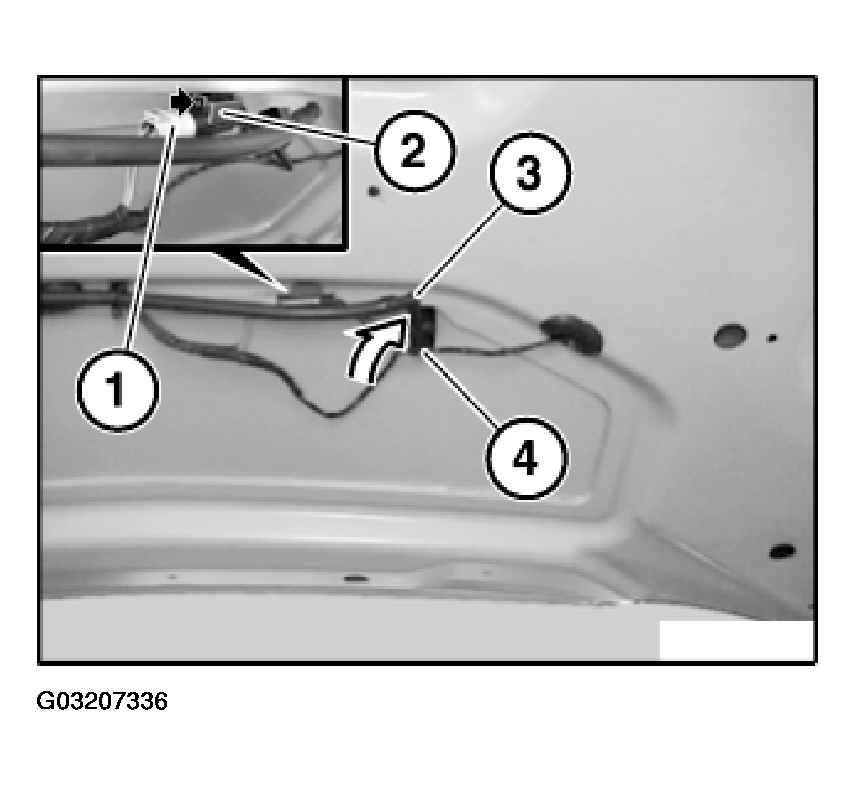

Fig 1: Removing Jet Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug housing (2) and disconnect.

Detach connector (3) or distributor from spray nozzle (4).

Press out jet nozzle (4) in direction of arrow and remove.

Installation:

Ensure hose is laid without kinks.

Adjust jet nozzle. Refer to 61 71 004 Adjusting windshield washer spray nozzles .
