61 71 004 Adjusting windshield washer spray nozzles

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 200

NOTE: Measurements apply to left-hand drive models.

View the measurements in mirror image fashion for right-hand drive models.

Reference edge: windshield seal.

The sprays must strike in the center of the area.

Mark points of contact with adhesive tape.

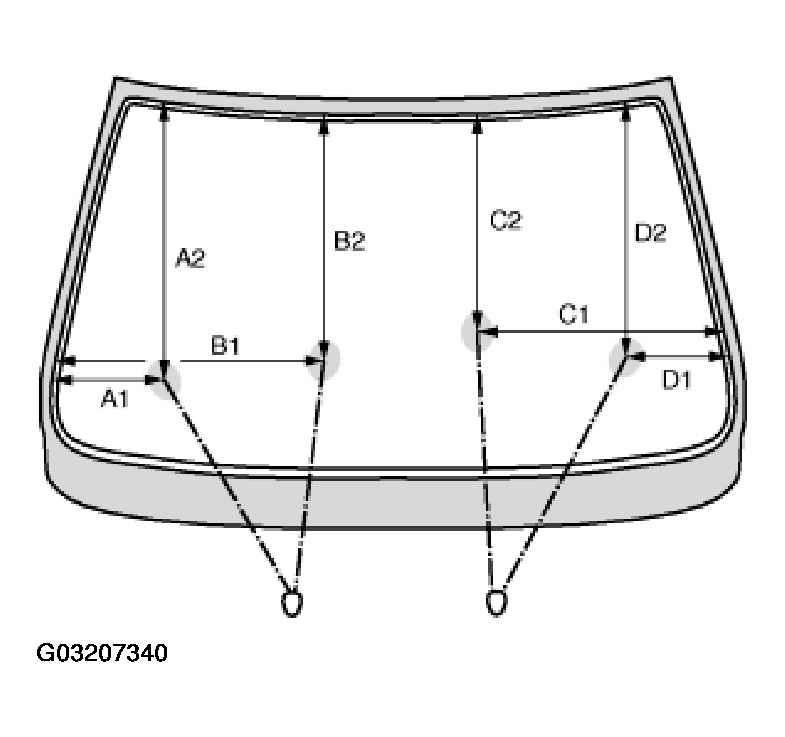

Fig 1: Identifying Adjustment Points

Courtesy of BMW OF NORTH AMERICA, INC.

Adjustment measurements:

ADJUSTMENT MEASUREMENTS

A1 340 mm	A2 430 mm
B1 610 mm	B2 380 mm
C1 570 mm	C2 370 mm
D1 330 mm	D2 445 mm

Adjust jet nozzles with special tool 00 9 200.

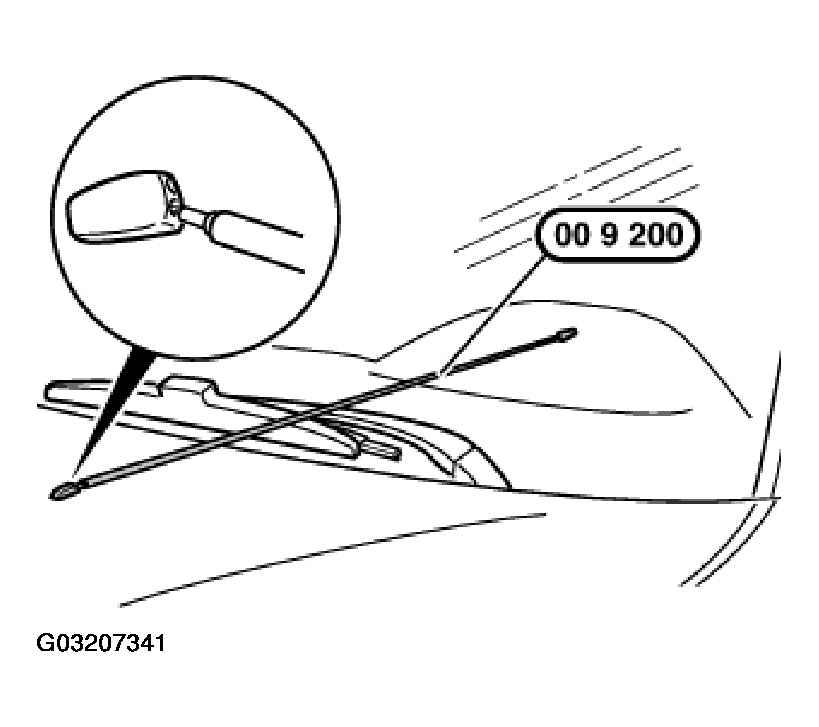

Fig 2: Adjusting Jet Nozzles With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
