61 71 061 Replacing fluid tank for windshield washer system

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove front right wheel arch cover (rear section). Refer to 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER .

NOTE: Drain fluid tank for windshield washer system

Disconnect plug connections (1).

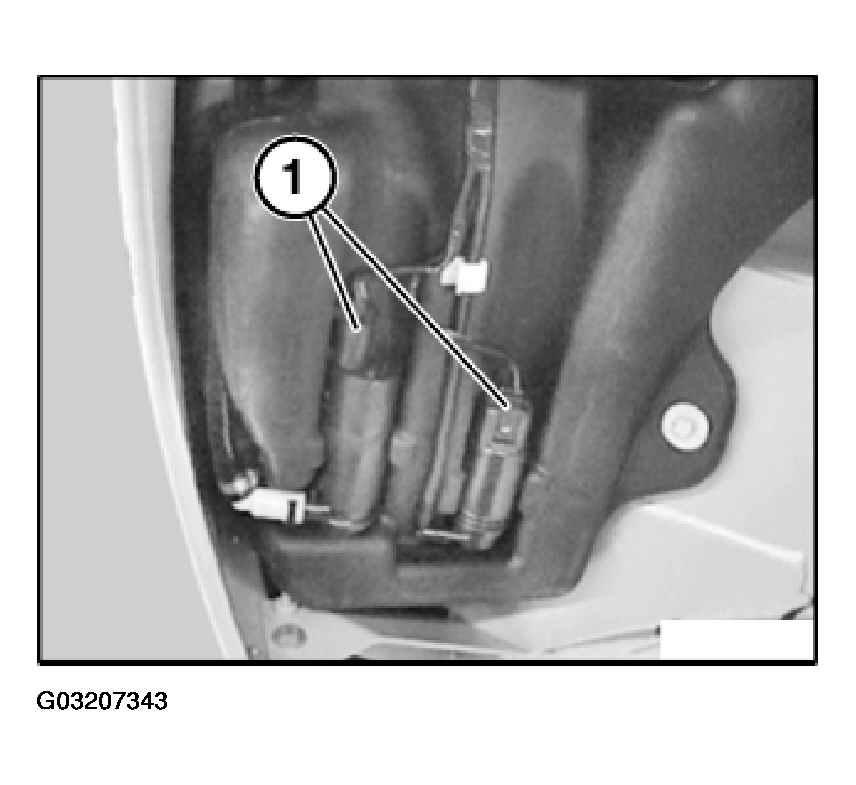

Fig 1: Disconnecting Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and detach connecting piece (1) of hose.

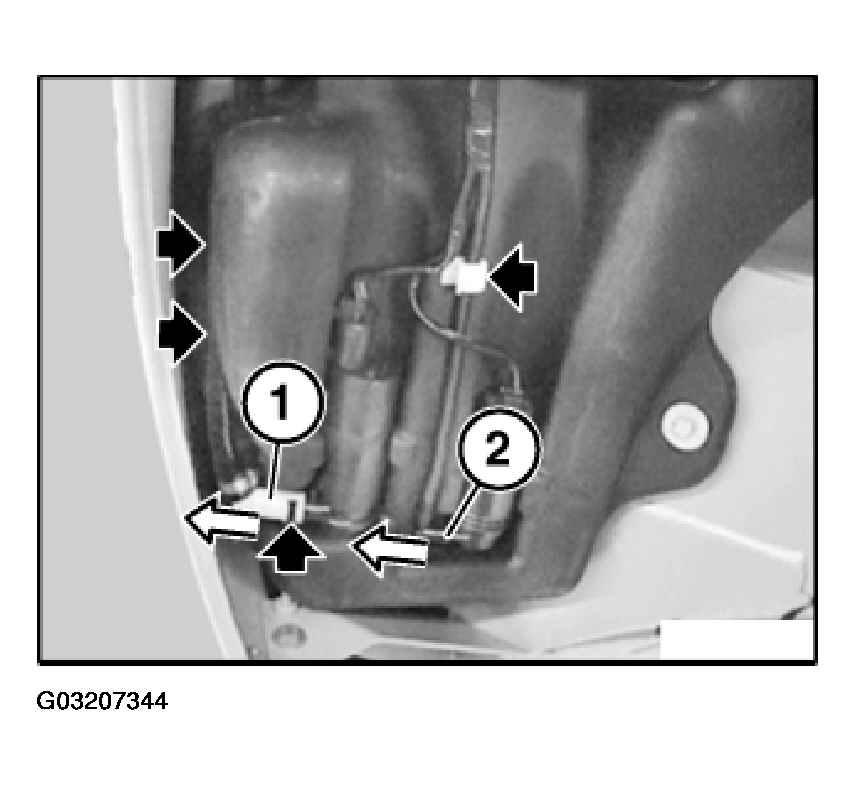

Fig 2: Detaching Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Detach hose with angle section (2).

Remove hoses from guides.

Installation:

Make sure hoses are laid without kinks.

Fill fluid tank for windshield washer system.

Loosen screws (1).

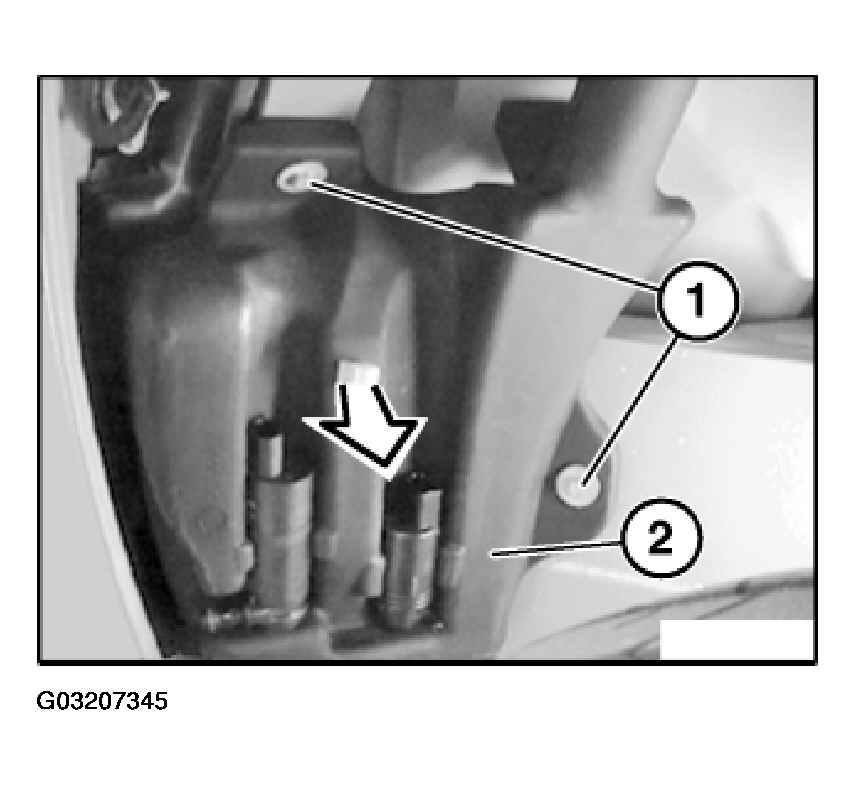

Fig 3: Removing Fluid Tank For Windshield Washer System

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fluid tank for windshield washer system (2).

Installation:

Replace grommet (2) if necessary.

Feed journal (1) into grommet (2).

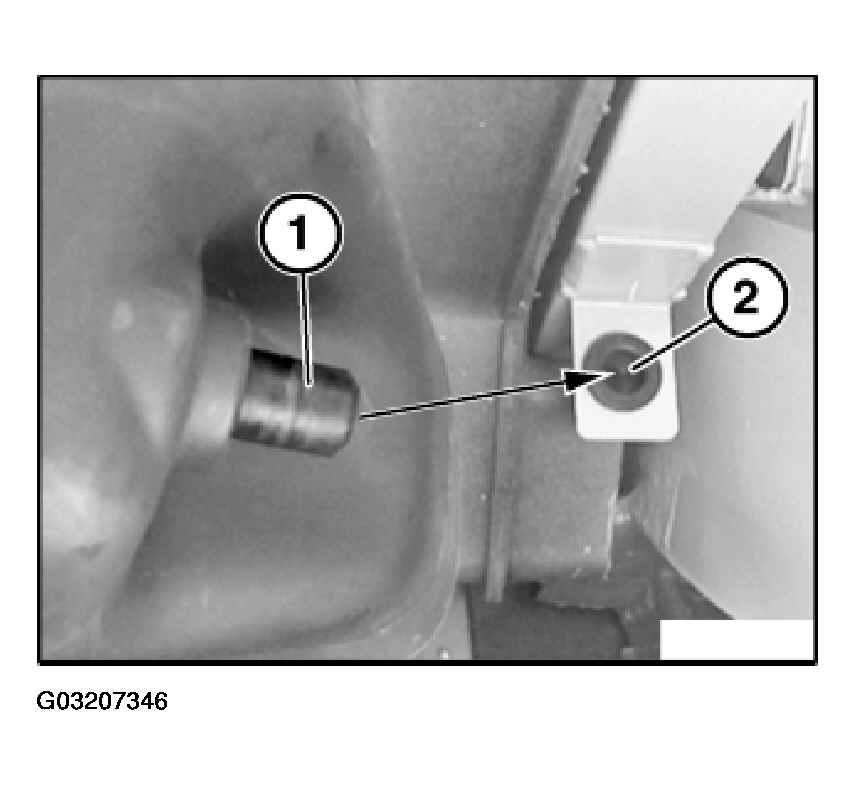

Fig 4: Feeding Journal Into Grommet

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cap on windshield washer tank (1).

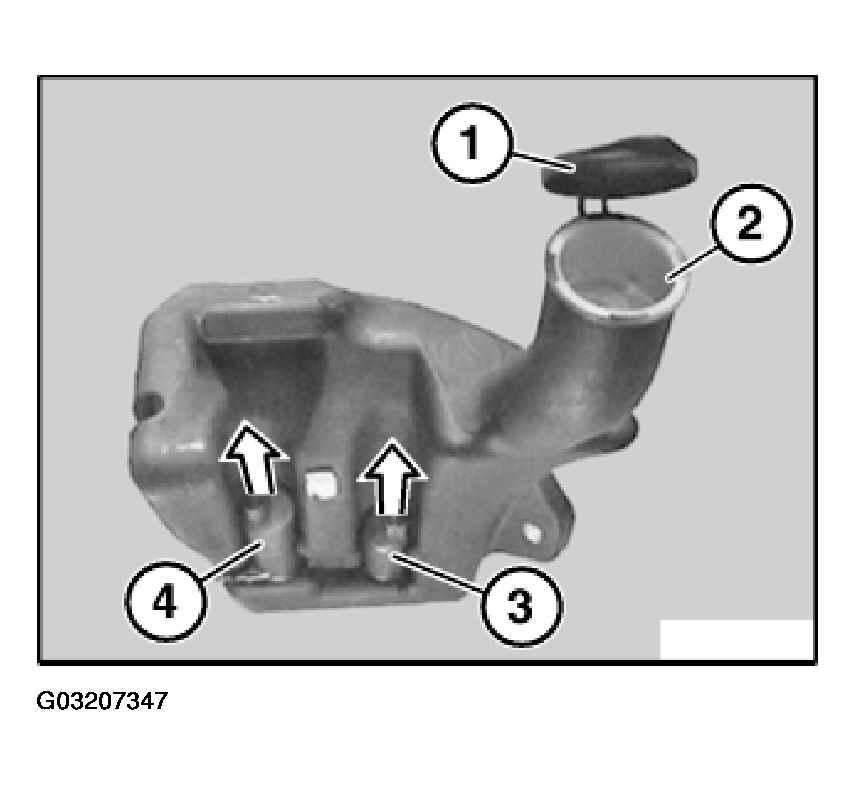

Fig 5: Removing Washer Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Remove strainer for fluid tank (2).

Pull washer pump for windshield washer system (3) and washer pump for headlight washer system (4) vertically upwards and remove.

Installation:

Coat sealing rings of washer pump with anti-friction agent.

Replace sealing rings/strainers on washer pumps.
