61 31 204 Replacing switch combination for seat adjustment

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 318

Remove seat trim on left or right front seat. Refer to 52 16 040 REMOVING AND INSTALLING/REPLACING OUTER COVER ON LEFT OR RIGHT FRONT DOOR .

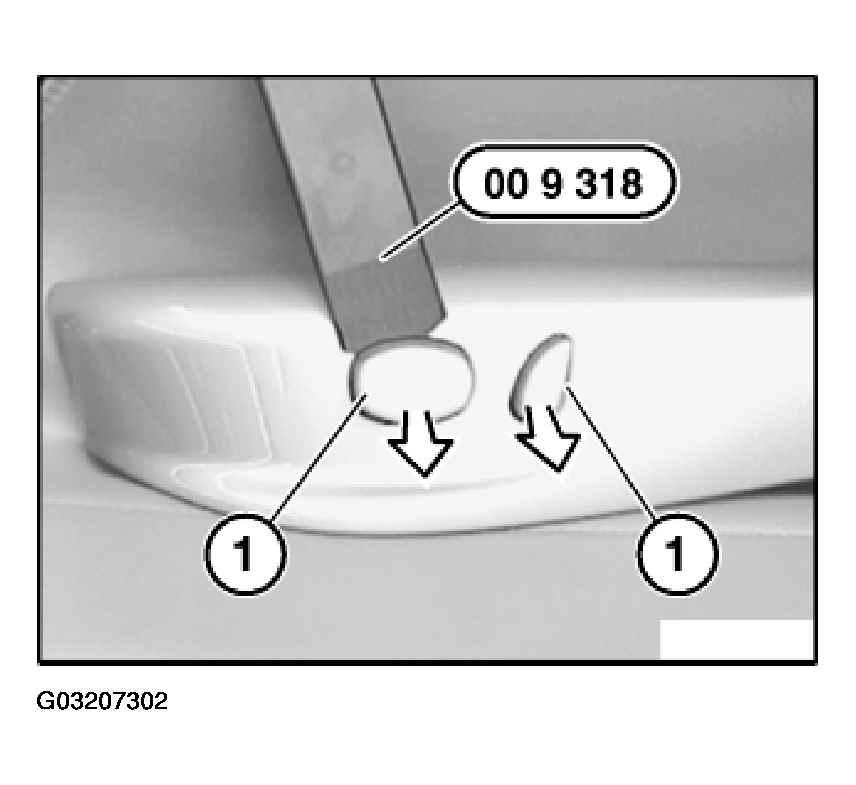

Lever out operating lever (1) with special tool 00 9 318 in direction of arrow.

Fig 1: Levering Out Operating Lever

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure switch combination (2) against falling out.

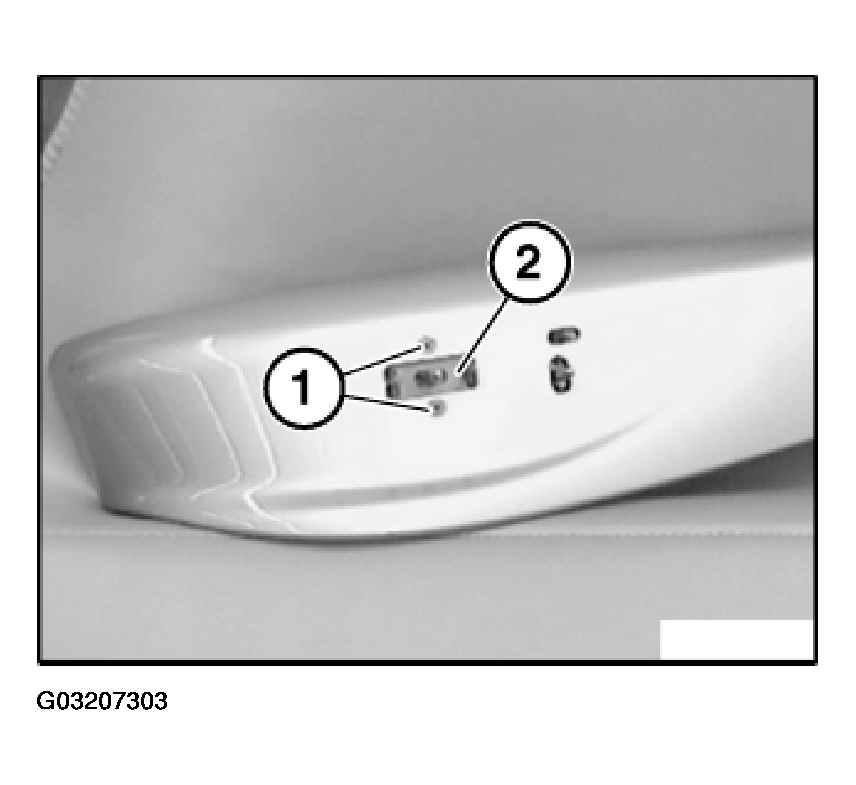

Fig 2: Removing Switch Combination

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Remove switch combination (2).
