52 16 040 Removing and installing/replacing outer cover on left or right front door

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

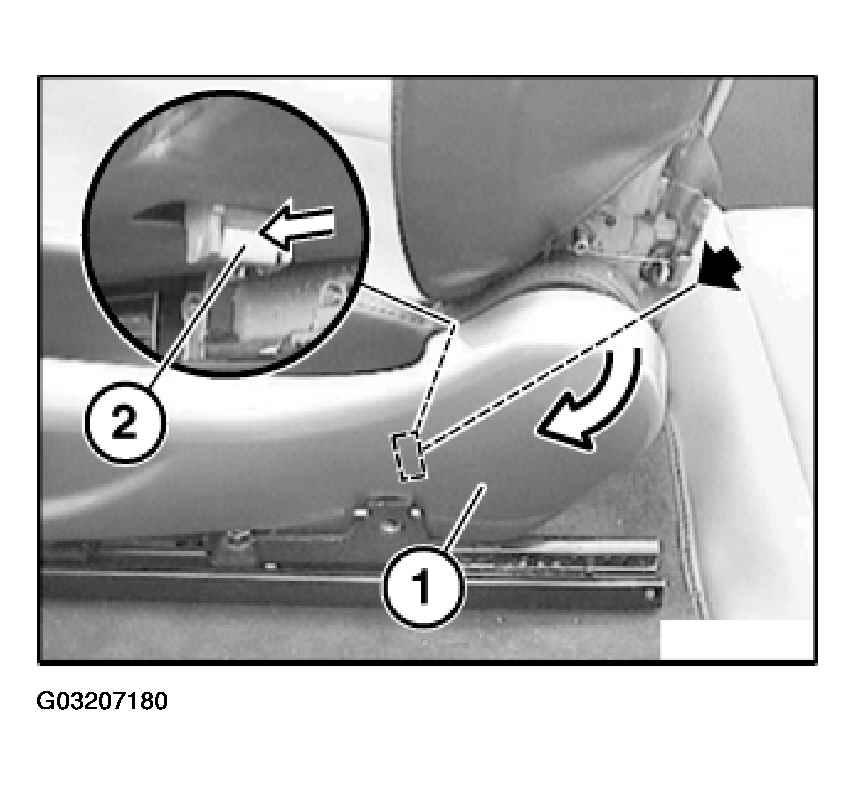

Using a suitable tool, unlock fixture (2) between seat trim (1) and seat.

Fig 1: Unlocking Fixture Between Seat Trim And Seat

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Slight deformation of the seat trim is necessary here.

Detach seat trim (1) at rear and slide forwards until it slips off front mounting bracket.

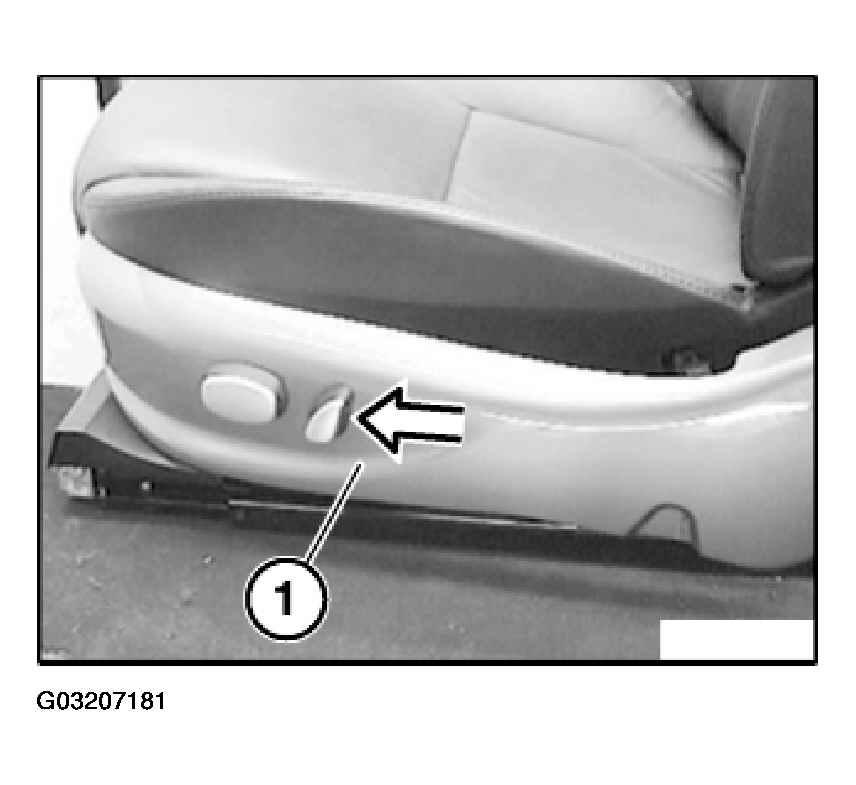

Fig 2: Detaching Seat Trim At Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Tilt seat trim (1) outwards slightly.

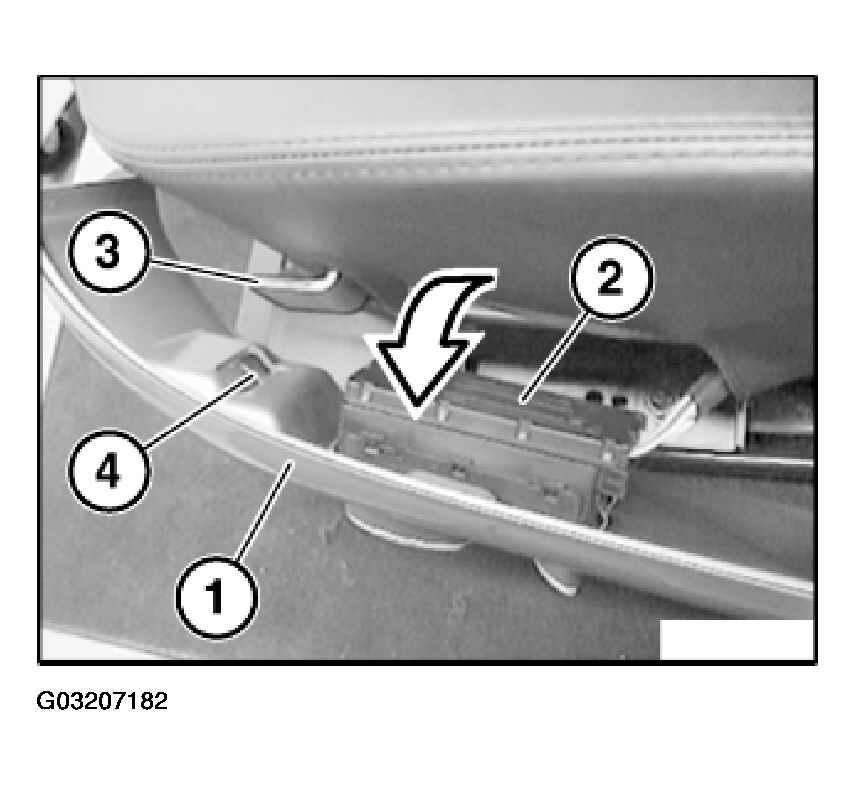

Fig 3: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (2) and disconnect.

Installation:

Insert mounting bracket (3) into opening (4).
