61 31 090 Removing and installing / replacing switch for left or right seat heating

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for center console. Refer to 51 16 212 REMOVING AND INSTALLING TRIM FOR CENTER CONSOLE .

Unscrew nuts (1).

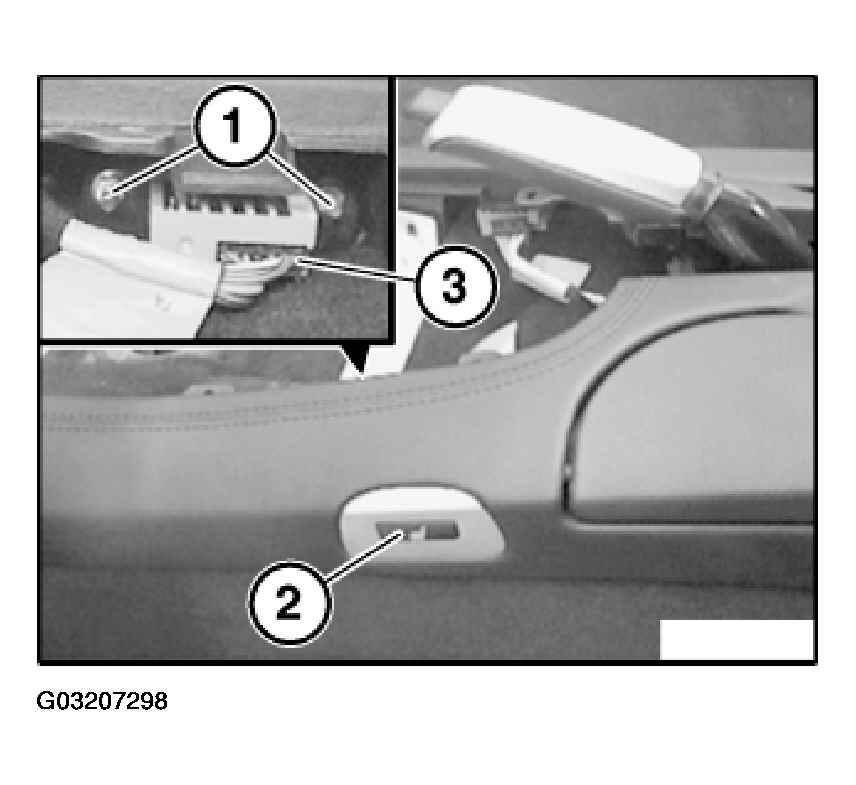

Fig 1: Removing Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Press out switch for seat heating (2) from inside to outside.

Disconnect plug connection (3).
