61 31 080 Removing and installing/replacing switch for hazard warning lights

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for center console. Refer to 51 16 212 REMOVING AND INSTALLING TRIM FOR CENTER CONSOLE .

NOTE: The procedure for removing and installing/replacing is the same for all switches in the center console trim.

Loosen screws (1).

Remove switch for hazard warning lights (2).

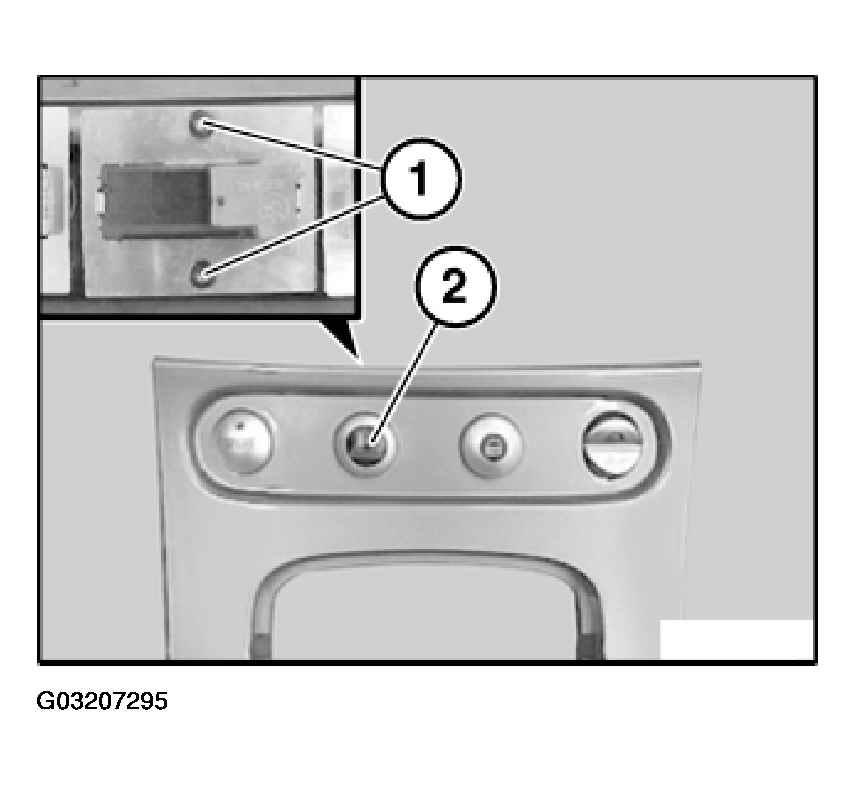

Fig 1: Removing Switch For Hazard Warning Lights

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Unclip switch for hazard warning lights (2) from mount (1).

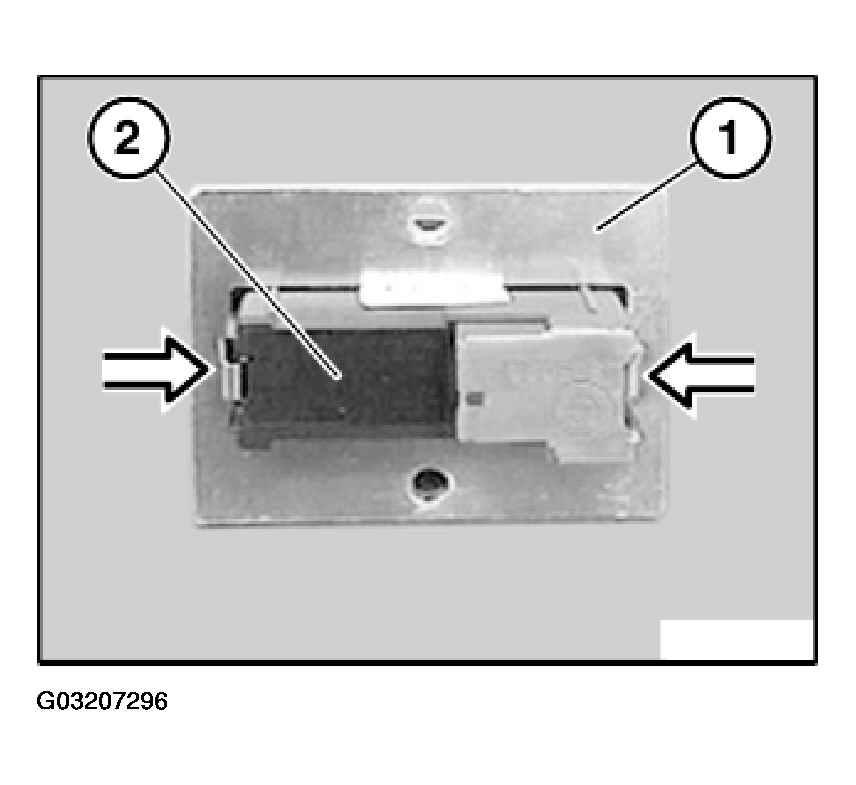

Fig 2: Unclipping Switch For Hazard Warning Lights From Mount

Courtesy of BMW OF NORTH AMERICA, INC.
