61 33 060 Removing and installing/replacing both fanfare horns

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove front left wheel arch cover (front section). Refer to 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER .

Disconnect plug connections (1).

Release nut (2) and remove fanfare horn(s) (3).

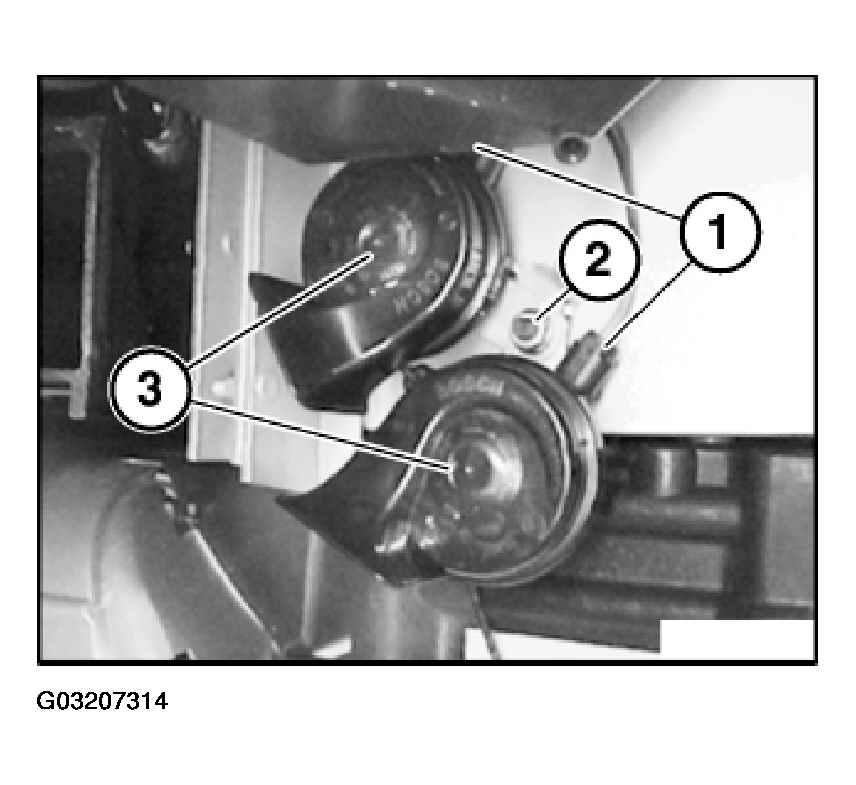

Fig 1: Removing Fanfare Horns
G03207314Courtesy of BMW OF NORTH AMERICA, INC.
