52 16 390 Removing and installing or replacing front left or right headrest
WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.
Remove backrest shell on front seat. Refer to 52 16 198 Removing and installing/replacing rear panel on left or right front seat backrest .

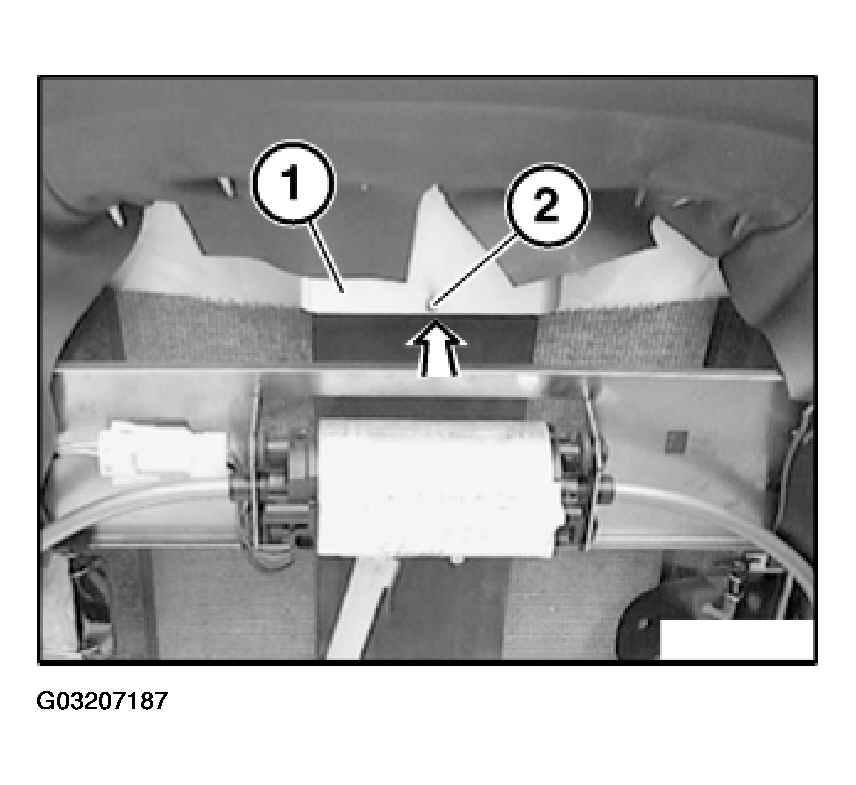

Unlock head restraint (1) and lower.
Drive out split pin (2) towards interior.
Unlock head restraint and pull out.
