52 16 198 Removing and installing/replacing rear panel on left or right front seat backrest

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Move seat as far forward at top as possible.

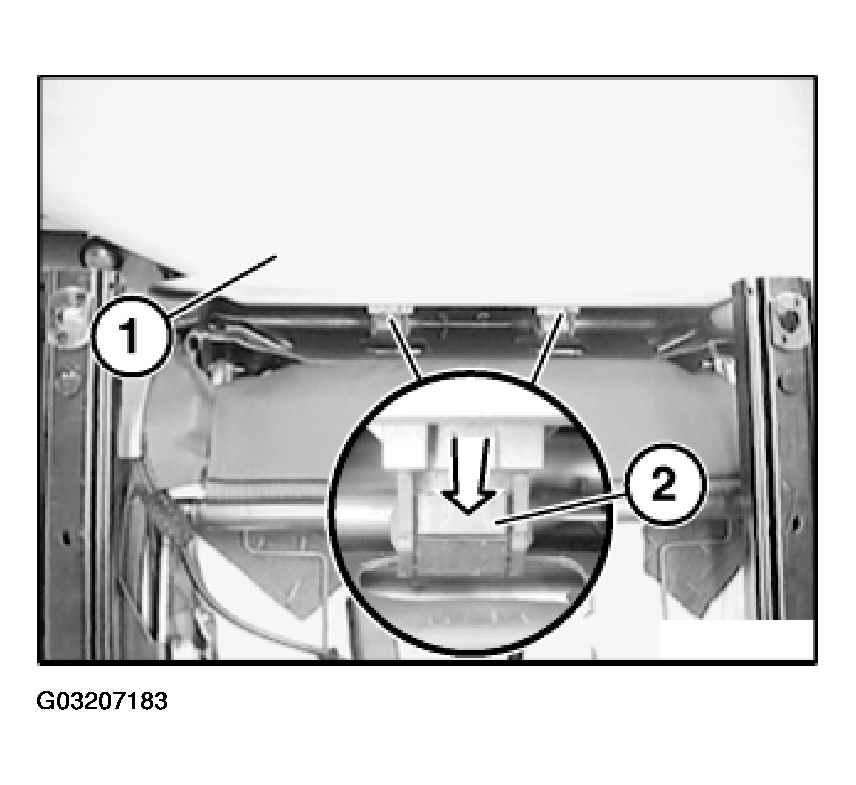

Unlock fixtures (2) under backrest shell (1) with a screwdriver.

Fig 1: Unlocking Fixtures Under Backrest Shell

Courtesy of BMW OF NORTH AMERICA, INC.

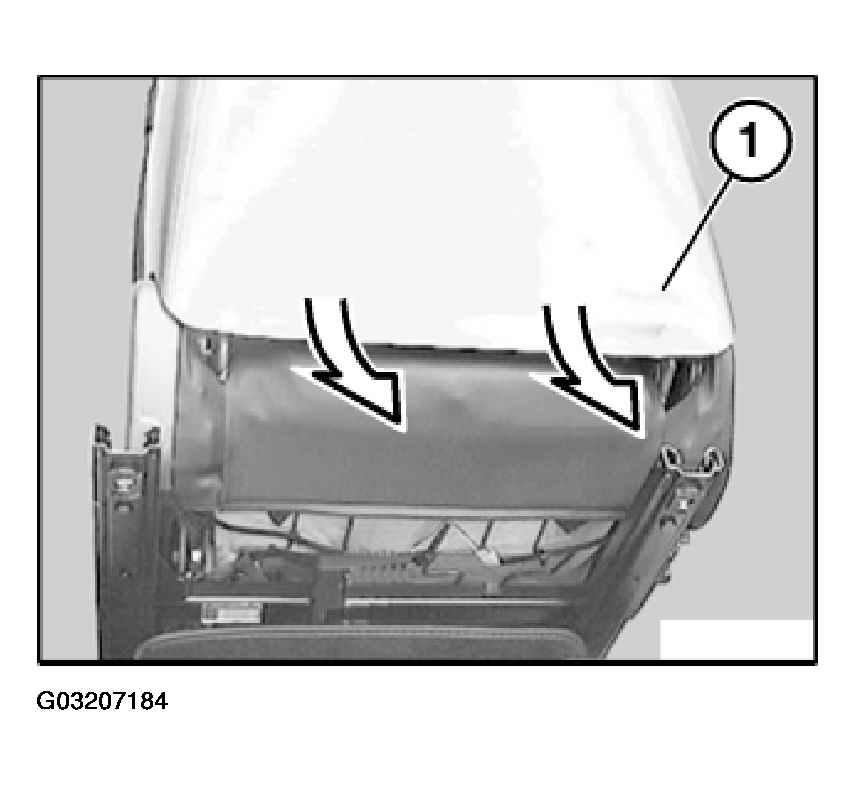

Lift backrest shell (1) off seat at bottom and side and detach towards bottom.

Fig 2: Lifting Backrest Shell Off Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

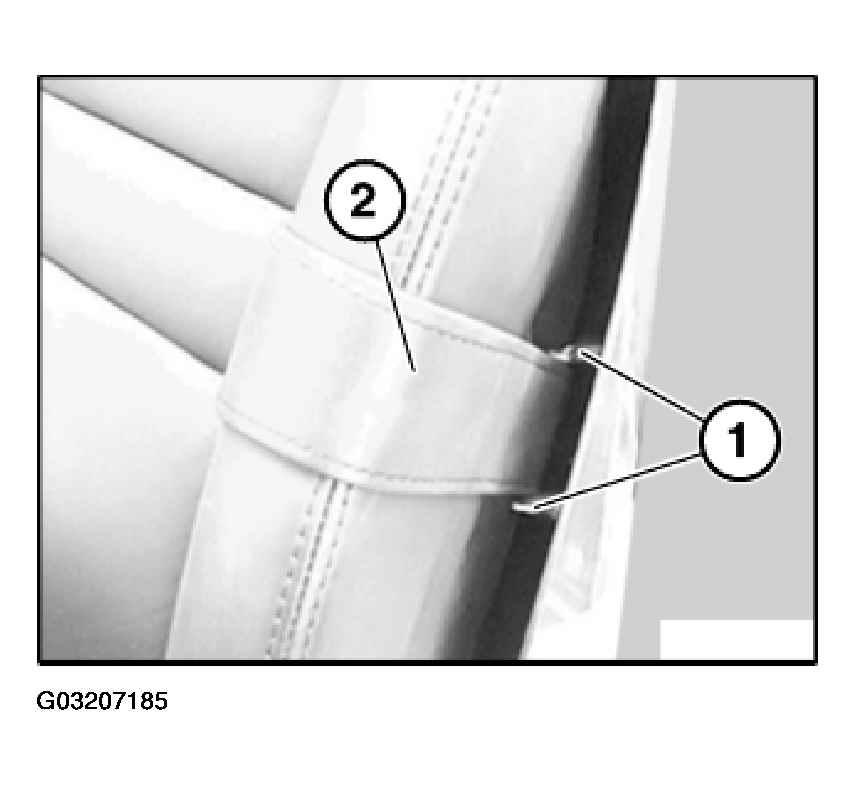

Insert openings for side guides (1) must not be covered by leather strap (2).

Fig 3: View Of Insert Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

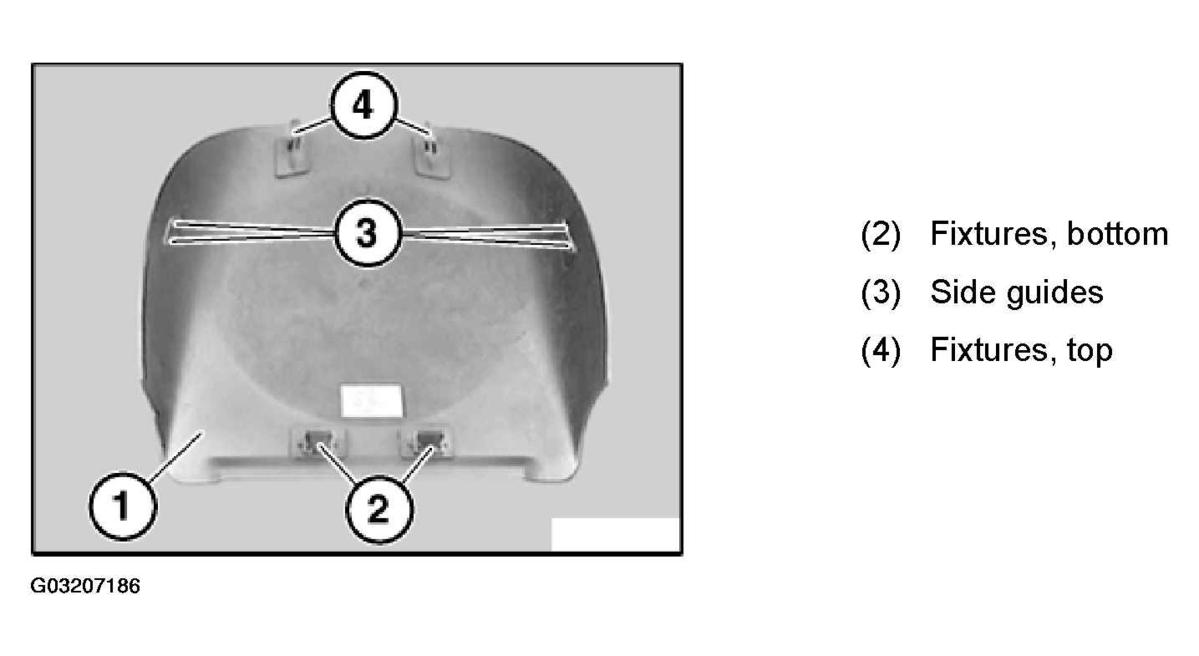

Examine retaining elements on backrest shell (1) for damage:

Fig 4: Inspecting Retaining Elements On Backrest Shell

Courtesy of BMW OF NORTH AMERICA, INC.
