51 44 150 Removing and installing/replacing trim for headliner at front (cowl at top)

WARNING: This page is about a different car, the 2003 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove panel for roof pillar at front left and right. Refer to 51 43 201 Removing and installing or replacing trim for front left or right roof .

Remove left and right sun visors. Refer to 51 16 104 Removing and installing/replacing left or right sun visor .

Remove complete ceiling light. Refer to 63 31 005 REMOVING AND INSTALLING/REPLACING LIGHTING PLATE (ABOVE INSIDE REARVIEW MIRROR) .

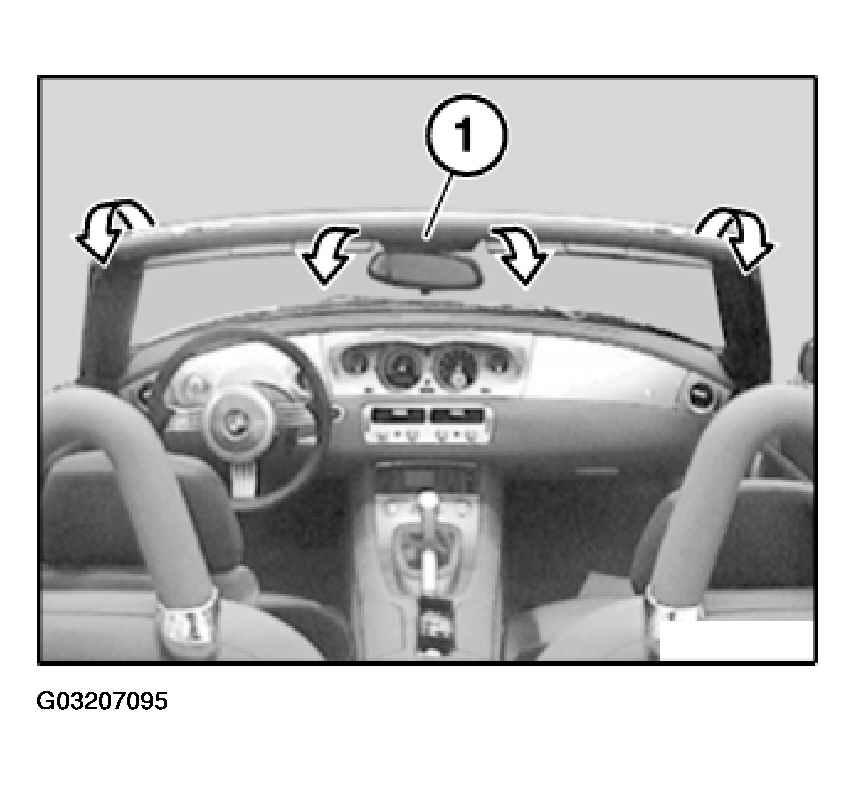

Release screws (1).

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

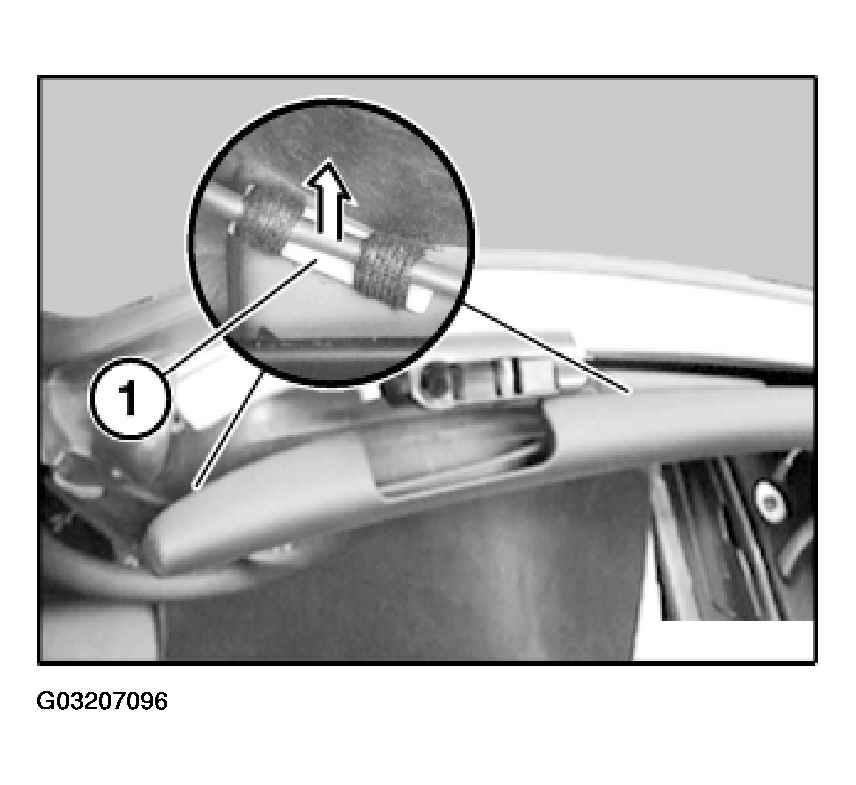

Release screw (1) on roof pillar on left and right.

Fig 2: Releasing Screw On Roof Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Fold back rubber cover (1) on cowl on left and right.

Fig 3: Folding Back Rubber Cover On Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out trim (1) on left and right and carefully lower.

Fig 4: Lifting Out Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cable holder (1) on left and right.

Fig 5: Unclipping Cable Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out cable in center and remove trim.
