63 31 005 Removing and installing/replacing lighting plate (above inside rearview mirror)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 340

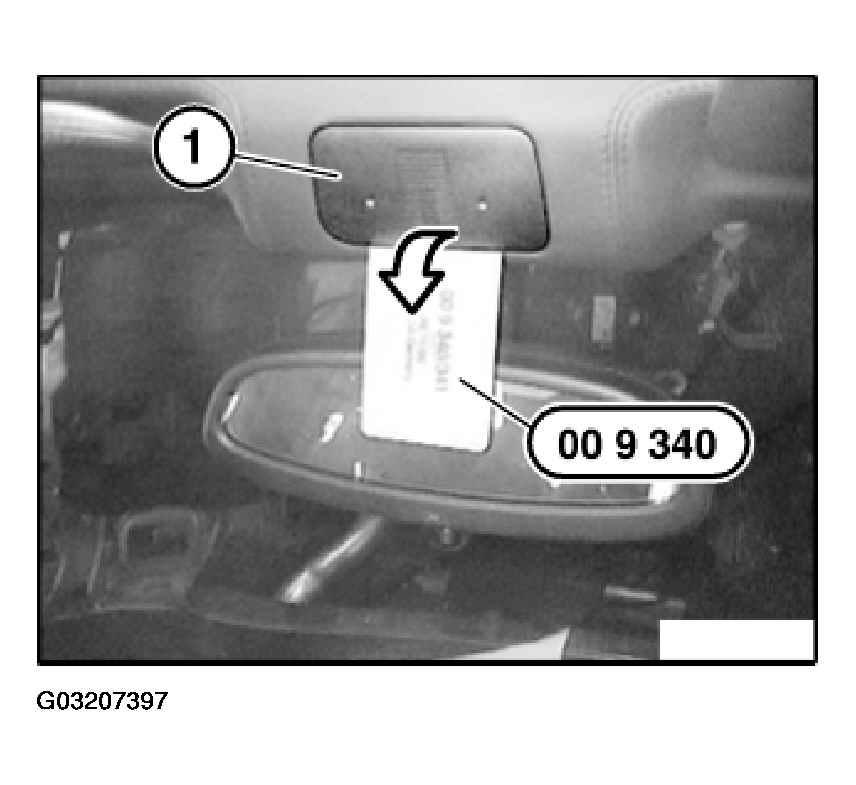

Lever out lighting plate (1) with special tool 00 9 340 in direction of arrow.

Fig 1: Removing Lighting Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections and remove lighting plate (1).

Installation:

Ensure correct cable routing.

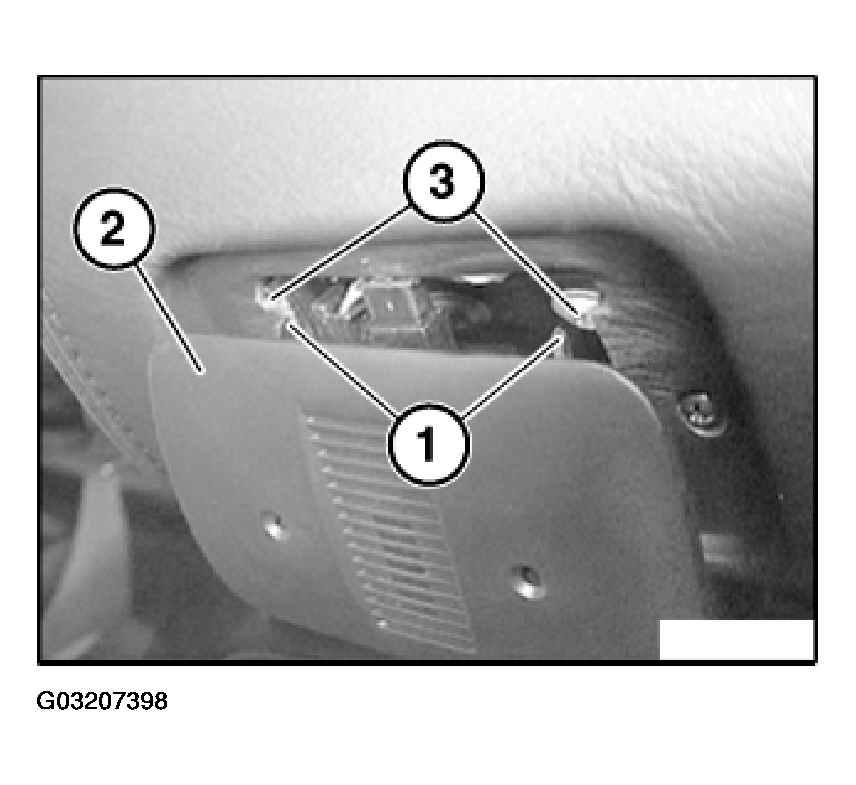

Feed hook (1) of lighting plate (2) into guide (3).

Fig 2: Installing Lighting Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

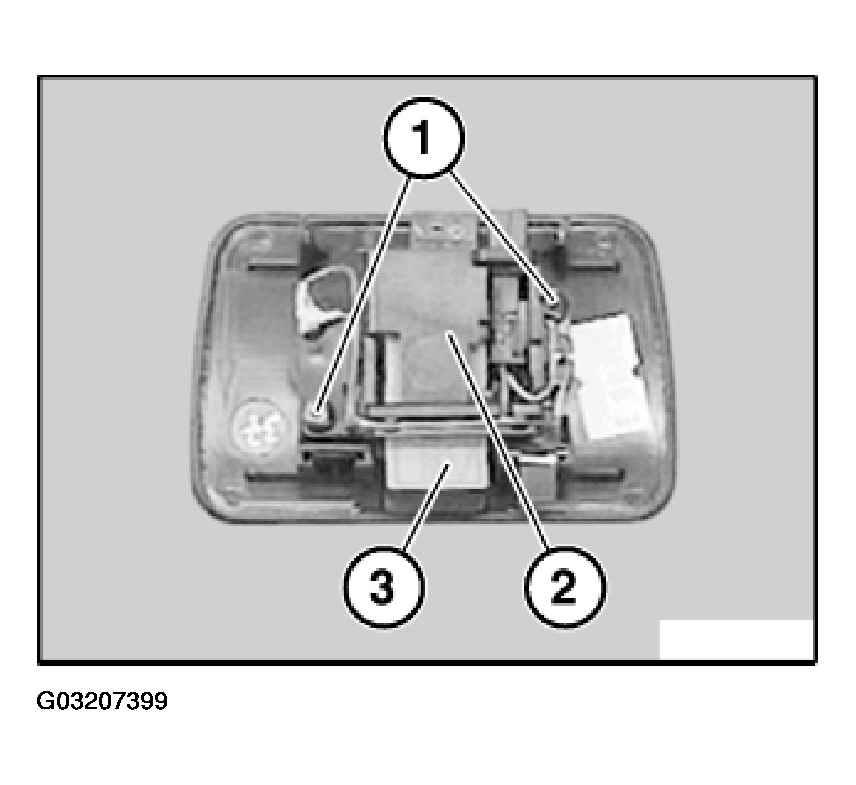

Loosen screws (1).

Fig 3: Removing Microphone For Hands-Free System

Courtesy of BMW OF NORTH AMERICA, INC.

Lift off plate (2).

Remove microphone for hands-free system (3).
