51 12 801 Replacing bracket for rear bumper at left or right

WARNING: This page is about a different car, the 2003 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

(Bumper removed)

If necessary, remove rear bumper completely. Refer to 51 12 000 Removing and installing complete rear bumper .

NOTE: If necessary, mark position of bracket on body.

Release rivets (1) and remove holder (2).

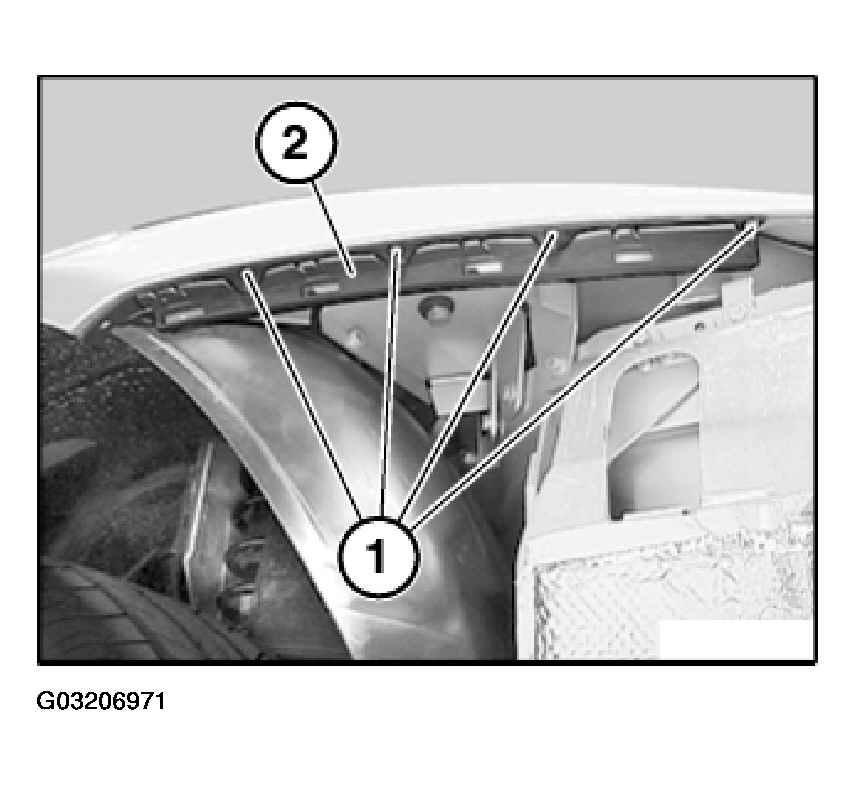

Fig 1: Removing Holder

Courtesy of BMW OF NORTH AMERICA, INC.
