51 12 742 Replacing a shock (impact) absorber for rear bumper

WARNING: This page is about a different car, the 2003 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

(bumper removed)

If necessary, remove rear bumper. Refer to 51 12 000 Removing and installing complete rear bumper .

NOTE: Mark position of shock absorber.

Release nuts (1) and remove shock absorber (2).

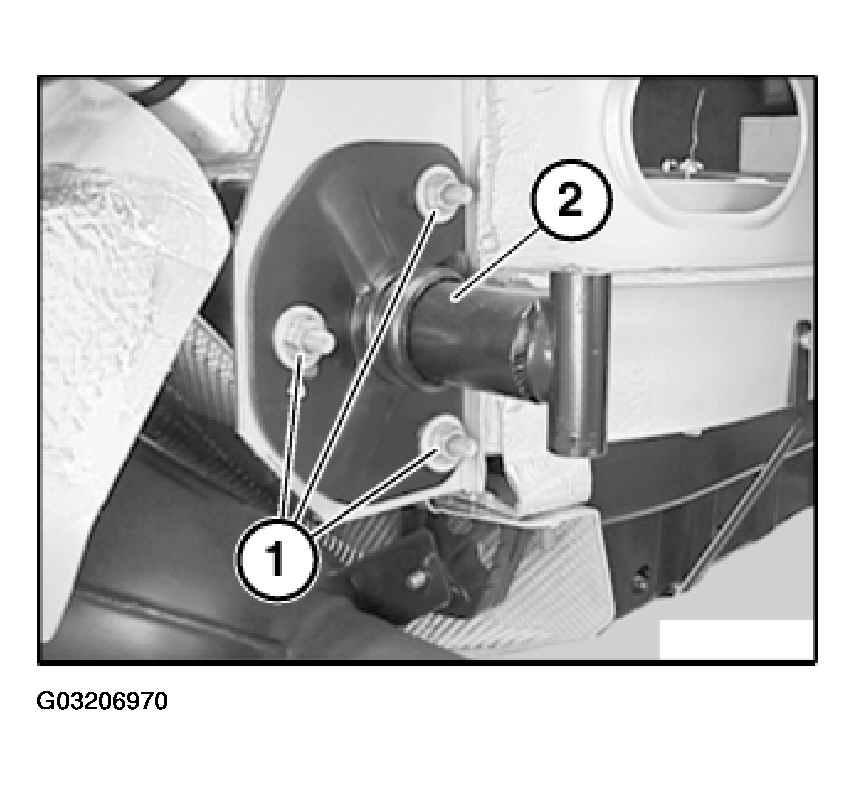

Fig 1: Removing Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, 51 12 3AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .
