51 12 160 Removing and installing/replacing rear lower bumper trim

Release screw (1) and expansion rivets (2) on left/right.

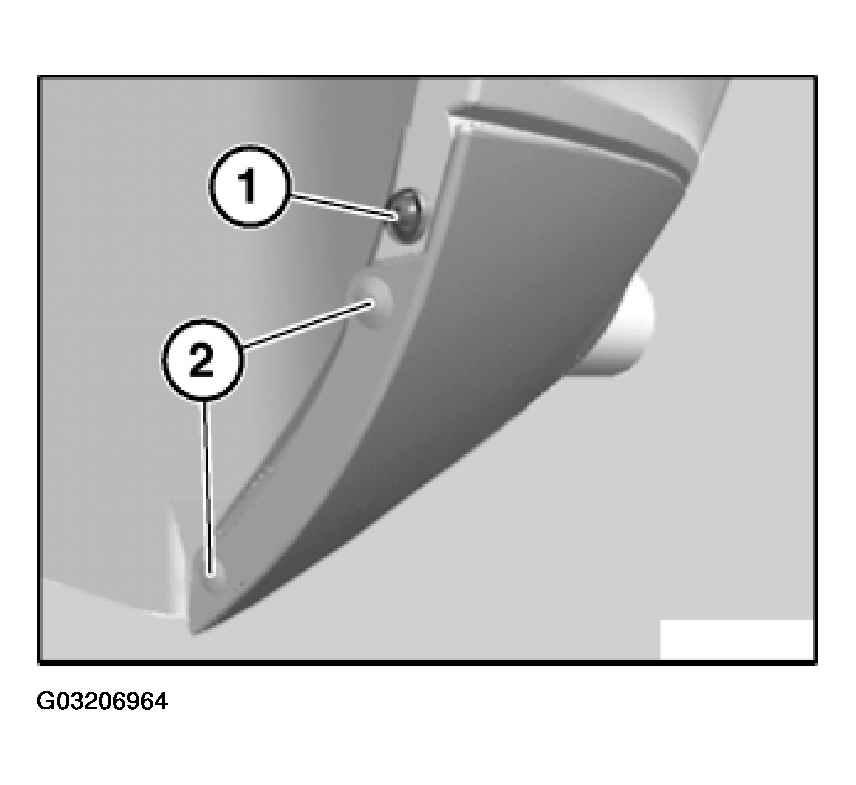

Fig 1: Releasing Screw And Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Unclip and remove lower bumper trim (2) completely from bumper (3).

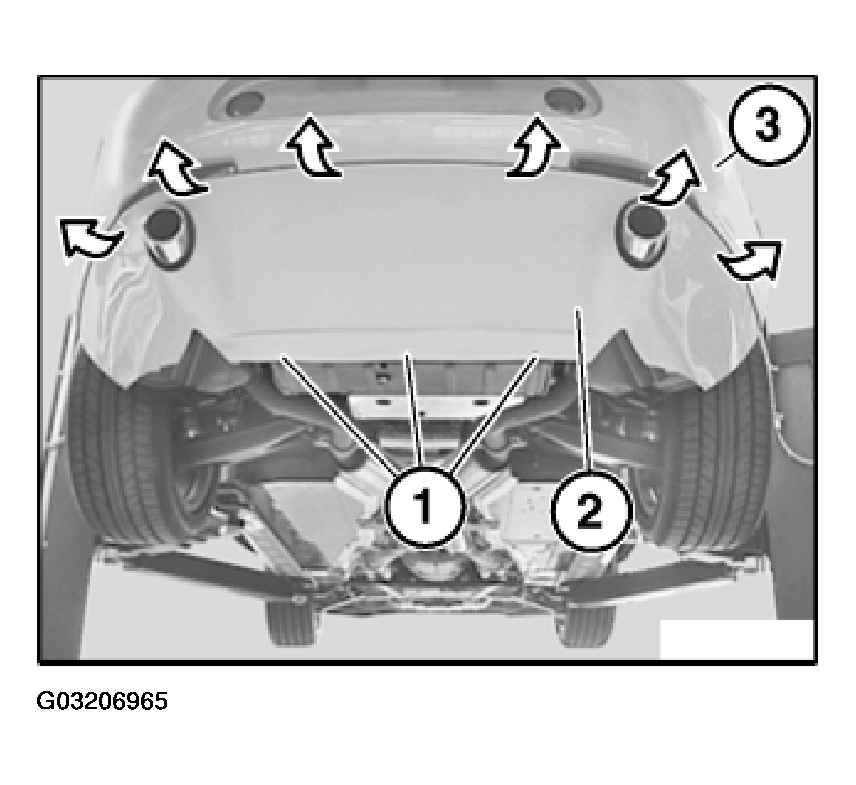

Fig 2: Removing Lower Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

All catches, from (1) left to (1) right, of lower bumper trim (2) must not be damaged.

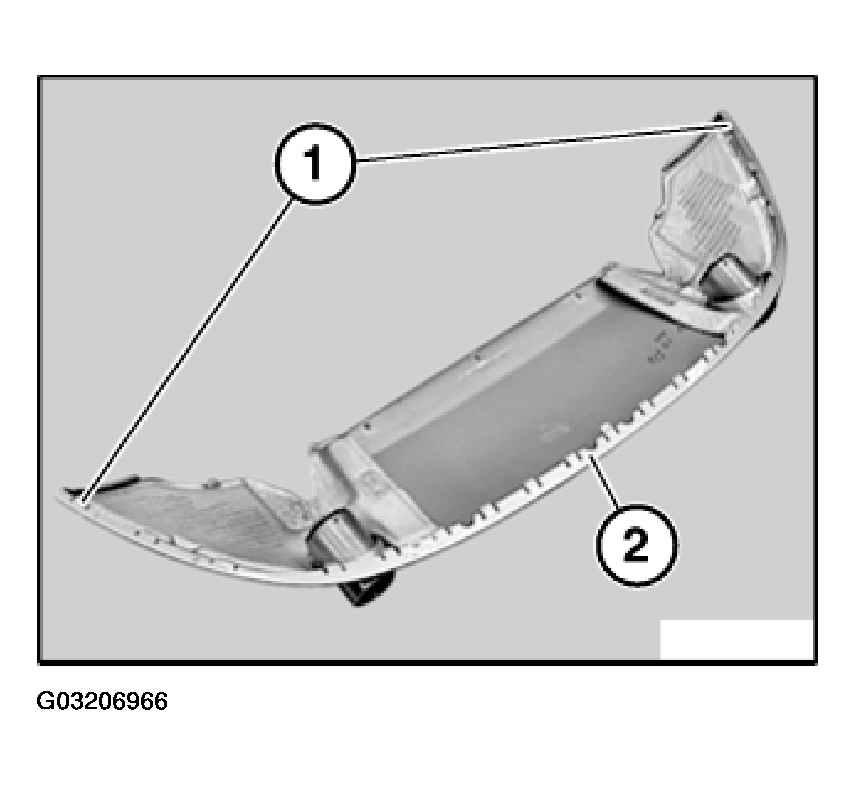

Fig 3: Identifying Lower Bumper Trim Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Release blind rivets (1) on left/right.

Remove thermal insulation (2) on left/right.

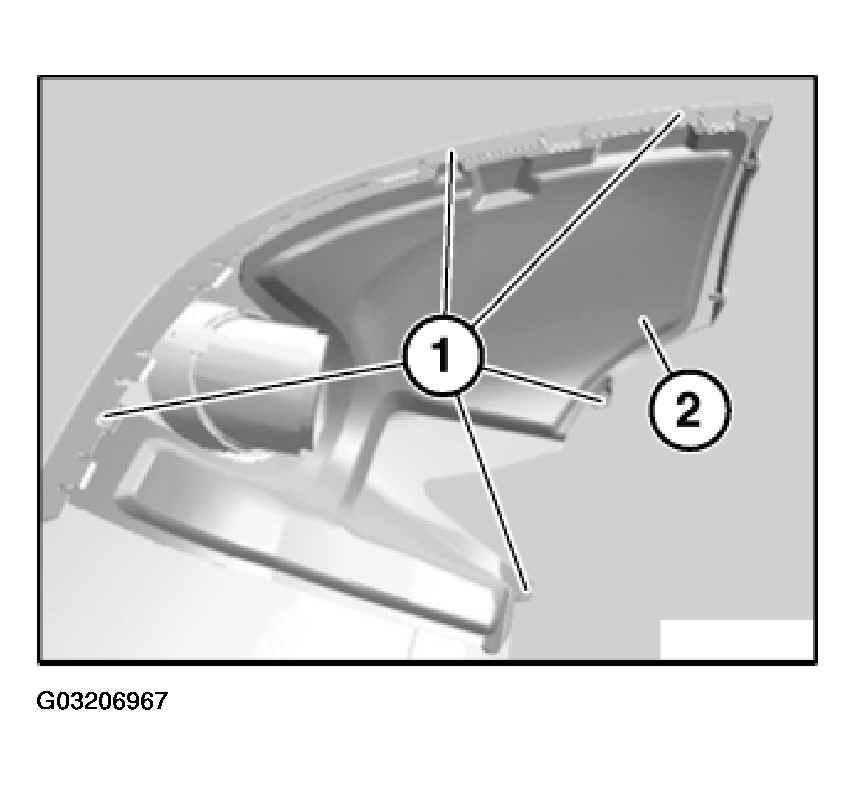

Fig 4: Removing Blind Rivets And Thermal Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

Release blind rivet (1) on left/right and (2).

Remove mounting (3) with trim (4) for rear muffler.

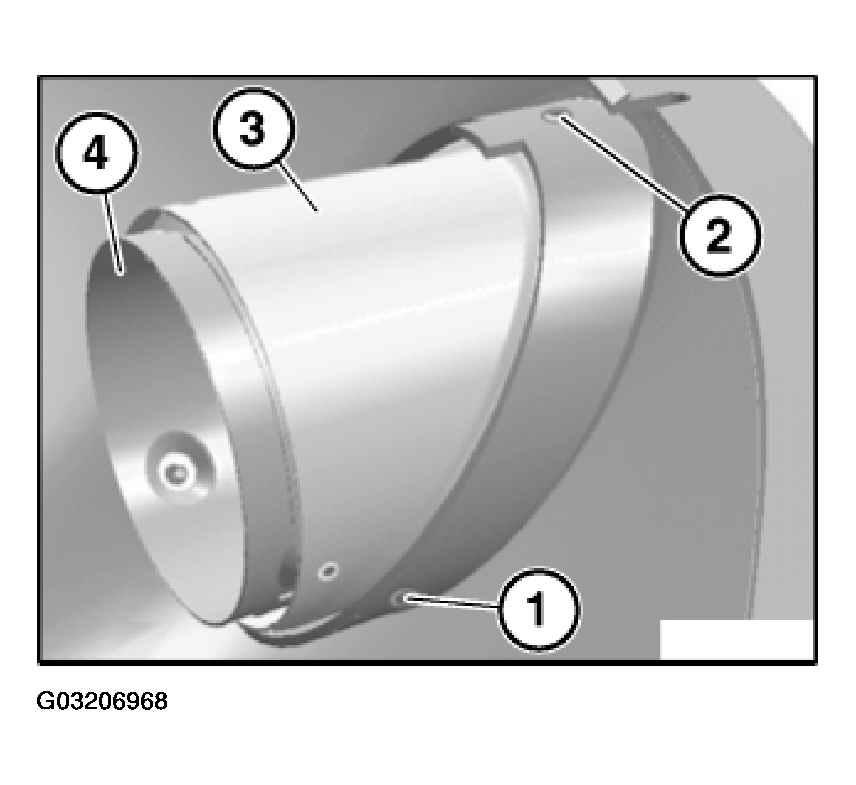

Fig 5: Removing Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Release blind rivets (1).

Remove mounting (2) from trim (3) for rear muffler.

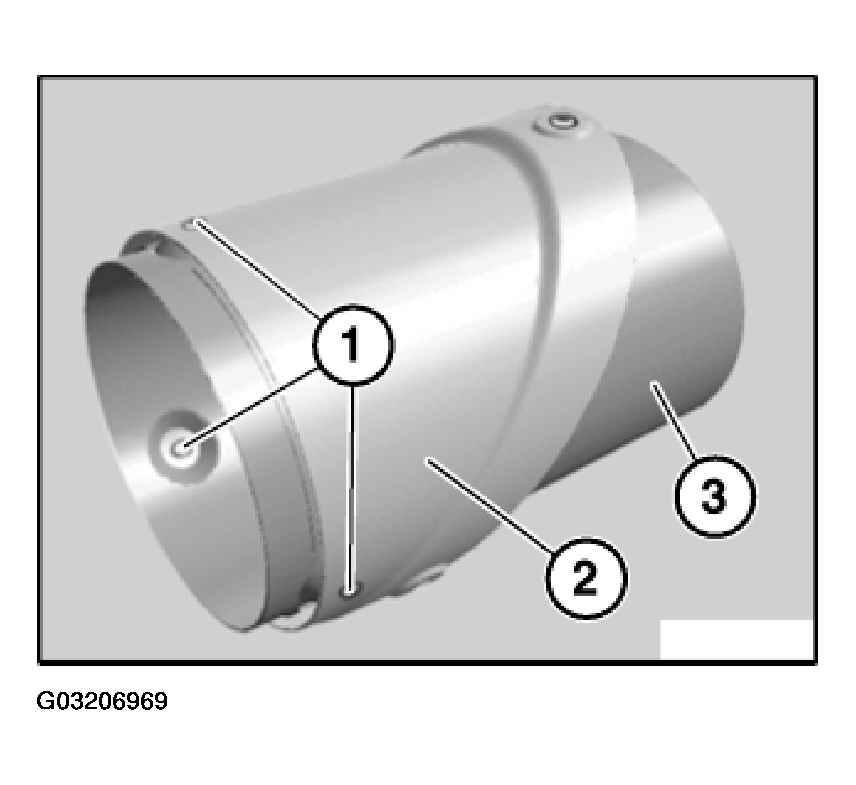

Fig 6: Removing Mounting From Trim For Rear Muffler

Courtesy of BMW OF NORTH AMERICA, INC.
