51 16 211 Removing and installing/replacing finisher for storage tray

WARNING: This page is about a different car, the 2003 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove knob for selector lever. Refer to SHIFT LEVER GRIP/KNOB .

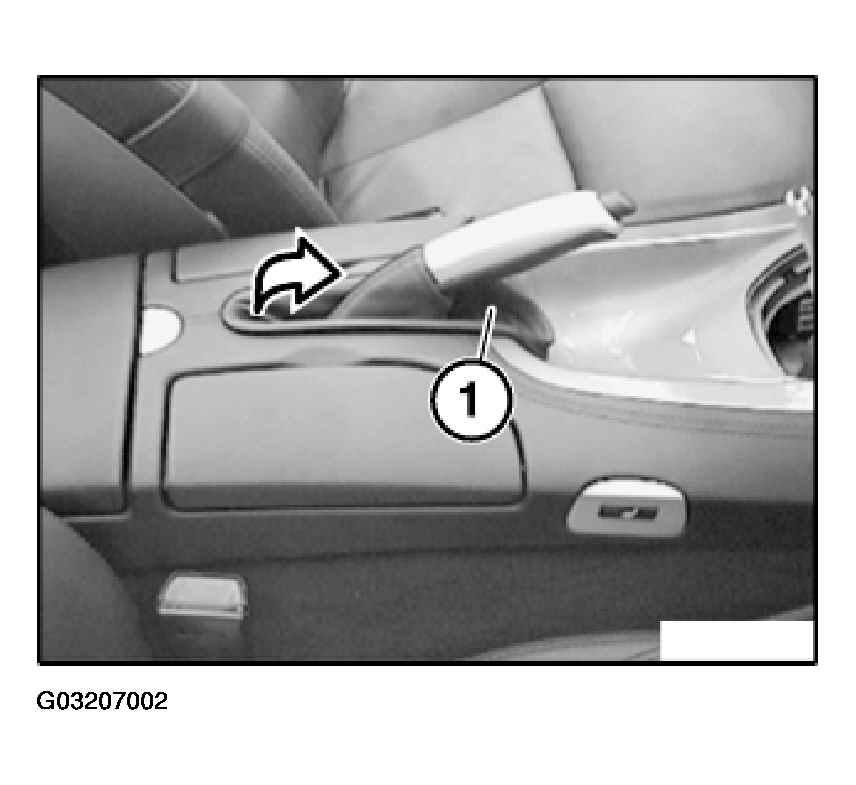

Lift out rubber gaiter (1).

Fig 1: Lifting Out Rubber Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

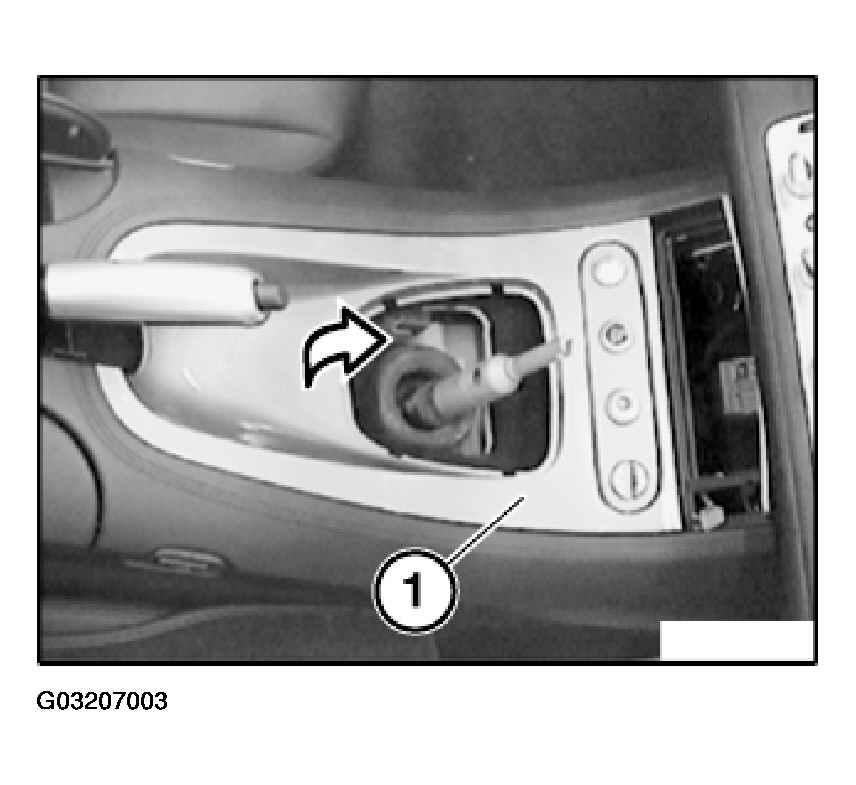

Unclip finisher (1) upward.

Fig 2: Unclipping Finisher

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection.

Replacement only:

Remove switch. Refer to 61 31 080 REMOVING AND INSTALLING/REPLACING SWITCH FOR HAZARD WARNING LIGHTS .
