51 16 000 Removing and installing/replacing mirror on left or right front door

WARNING: This page is about a different car, the 2003 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Partially undo sound insulation in front area but do not remove. Refer to 51 48 ... Removing and installing/replacing acoustic insulation on left or right front door .

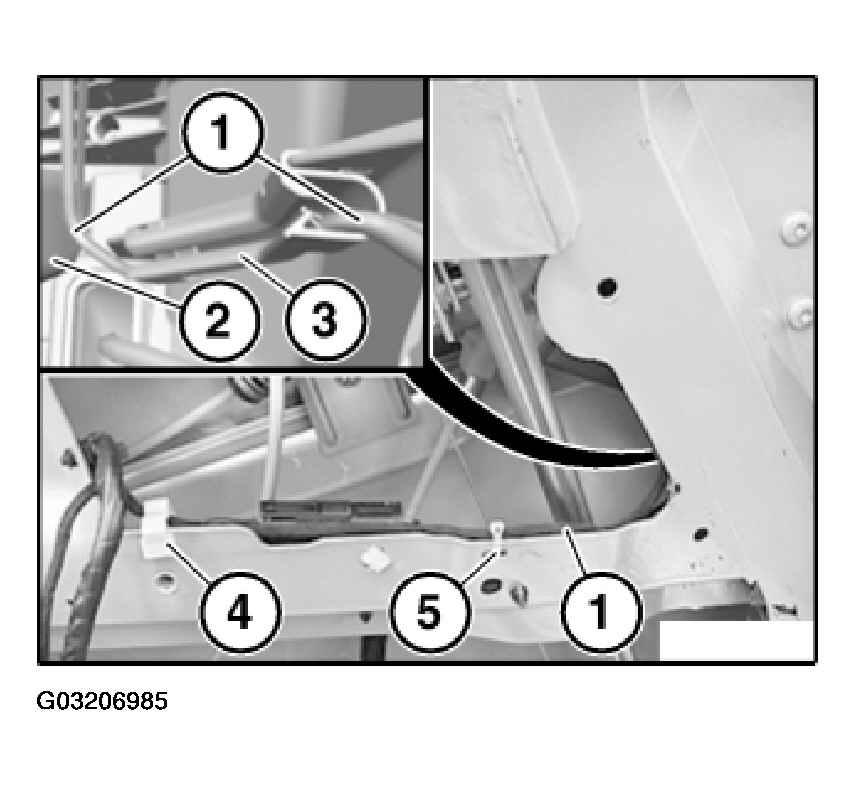

Lift cable (1) out of holders (3) and (4).

Fig 1: Lifting Cable Out Of Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Undo cable tie (5).

Feed out cable (1) after releasing mirror.

Installation:

Lay cable (1) in front of reinforcement (2).

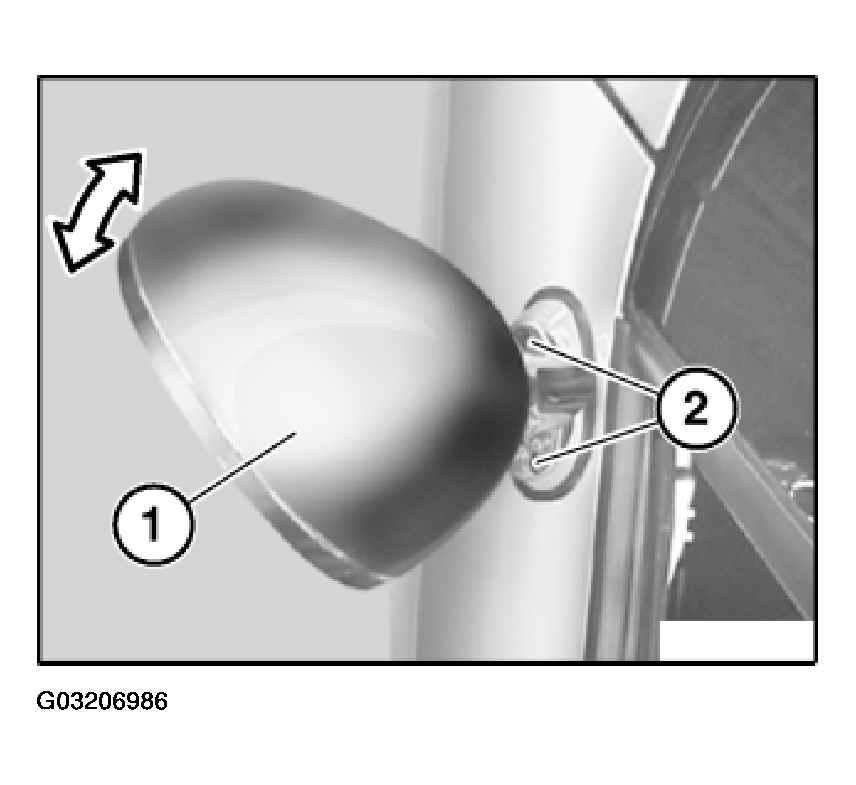

Turn mirror (1) through approx. 90° towards front until screws (2) are accessible.

Fig 2: Removing Mirror

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (2).

Remove mirror (1) and feed out cable.

Installation:

Tightening torque, 51 16 1AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Carry out function check.

Replacement only:

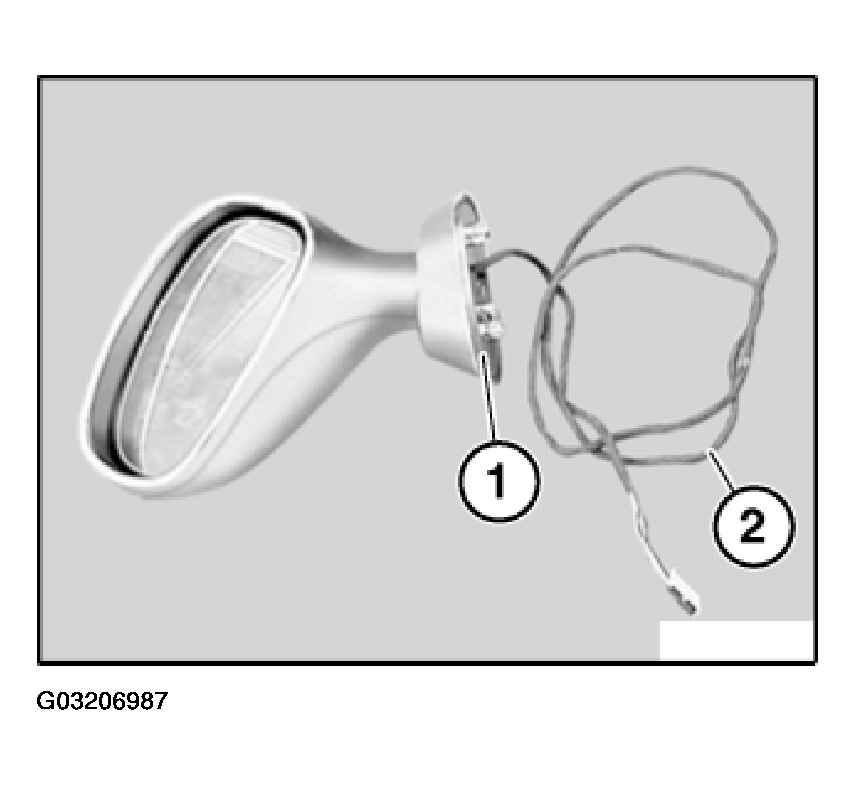

Detach liner (1) and feed out cable (2).

Fig 3: Detaching Liner

Courtesy of BMW OF NORTH AMERICA, INC.

Remove mirror glass. Refer to 51 16 026 Replacing mirror glass for rear-view mirror (on front door) .
