51 16 026 Replacing mirror glass for rear-view mirror (on front door)

WARNING: This page is about a different car, the 2003 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure car has room temperature to prevent the clips from breaking off.

Tilt mirror glass.

Remove cement between mirror glass and edge of housing (risk of damage).

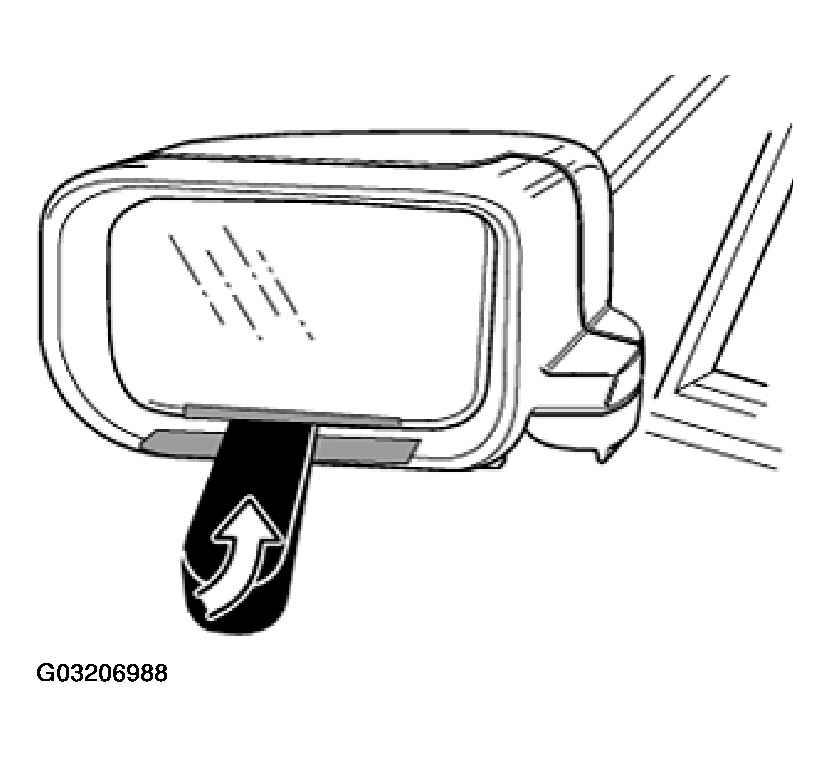

Fig 1: Removing Cement Between Mirror Glass And Edge Of Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip mirror glass using a wooden wedge.

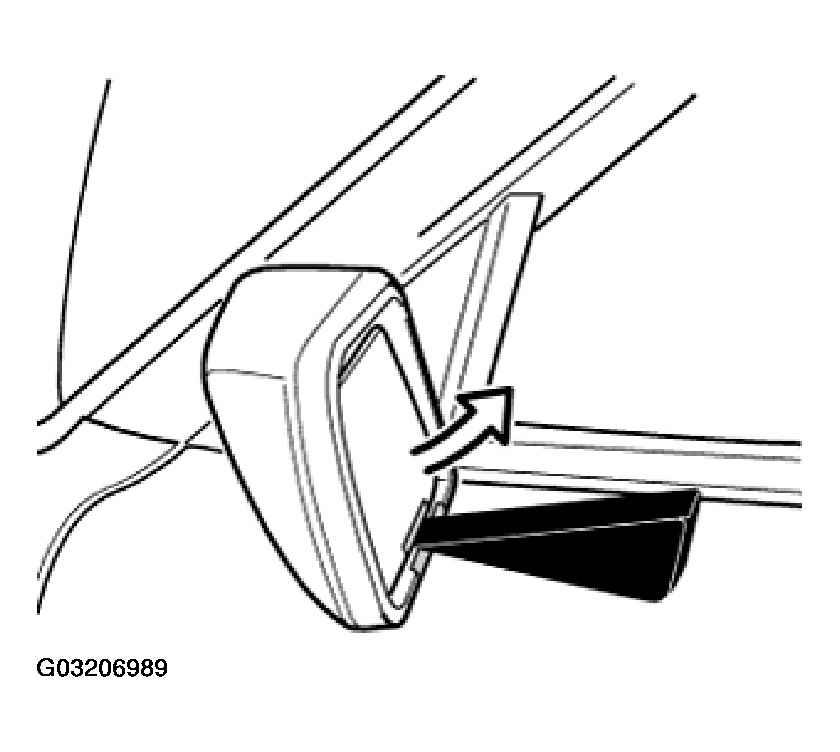

Fig 2: Unclipping Mirror Glass

Courtesy of BMW OF NORTH AMERICA, INC.

If applicable, remove connector (mirror glass heating) and remove mirror glass.

Installation:

Install mirror glass that clips are seated on tabs and clip on glass.

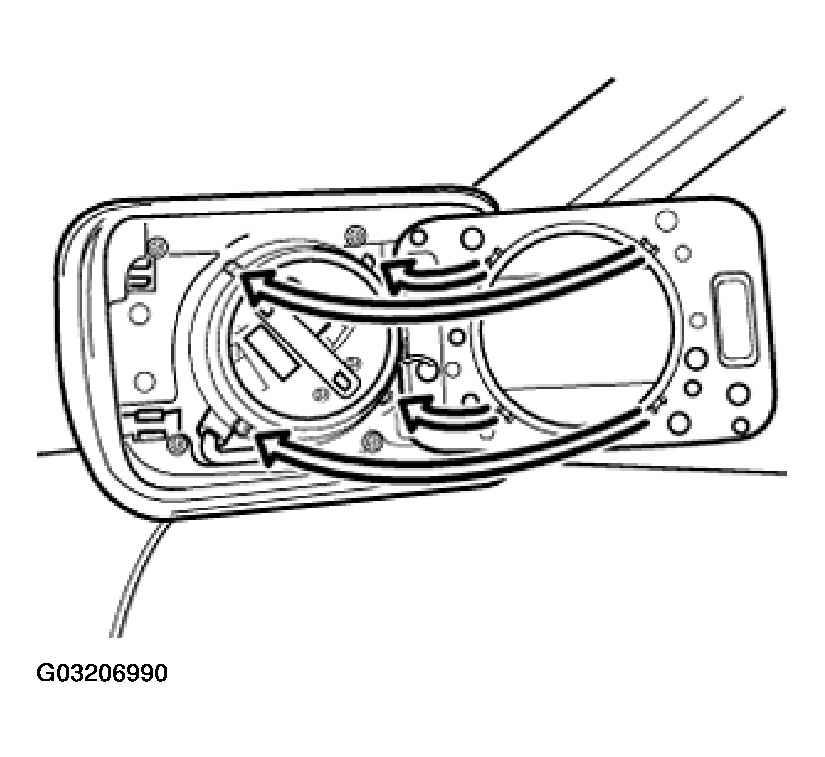

Fig 3: Installing Mirror Glass

Courtesy of BMW OF NORTH AMERICA, INC.

Ensure correct engagement.

Check function.
