51 45 051 Replacing trim for upper section of instrument panel

WARNING: This page is about a different car, the 2003 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for instrument panel (upper section). Refer to 51 45 050 Removing and installing trim for upper section of instrument panel .

Release screw (1) on left.

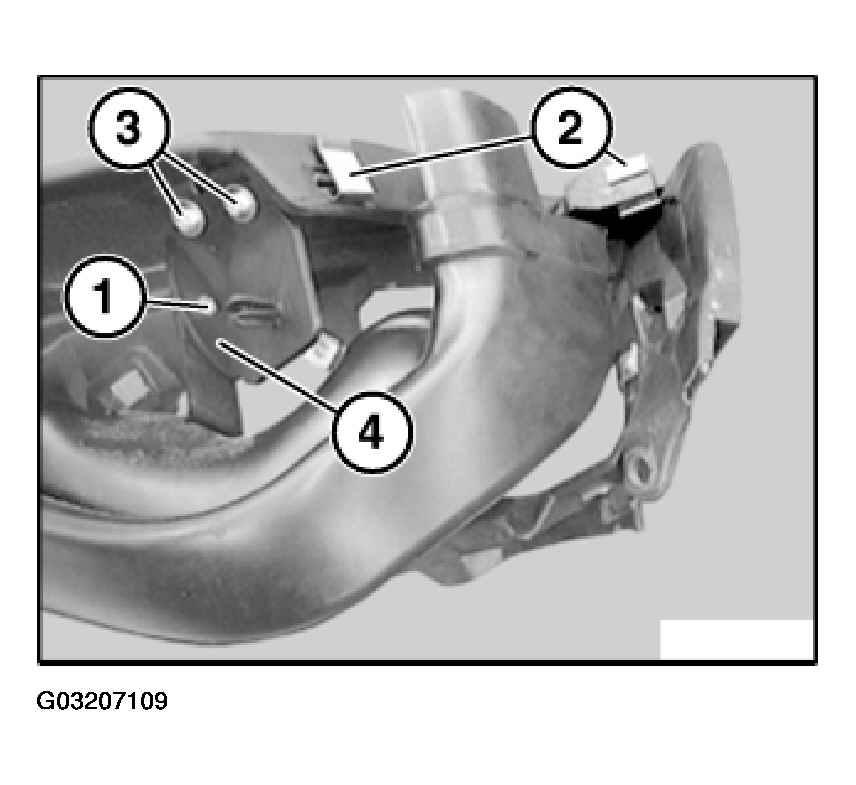

Fig 1: Removing Holder

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, detach retainers (2).

Release screws (3) and remove holder (4).

Release screws (1) on left.

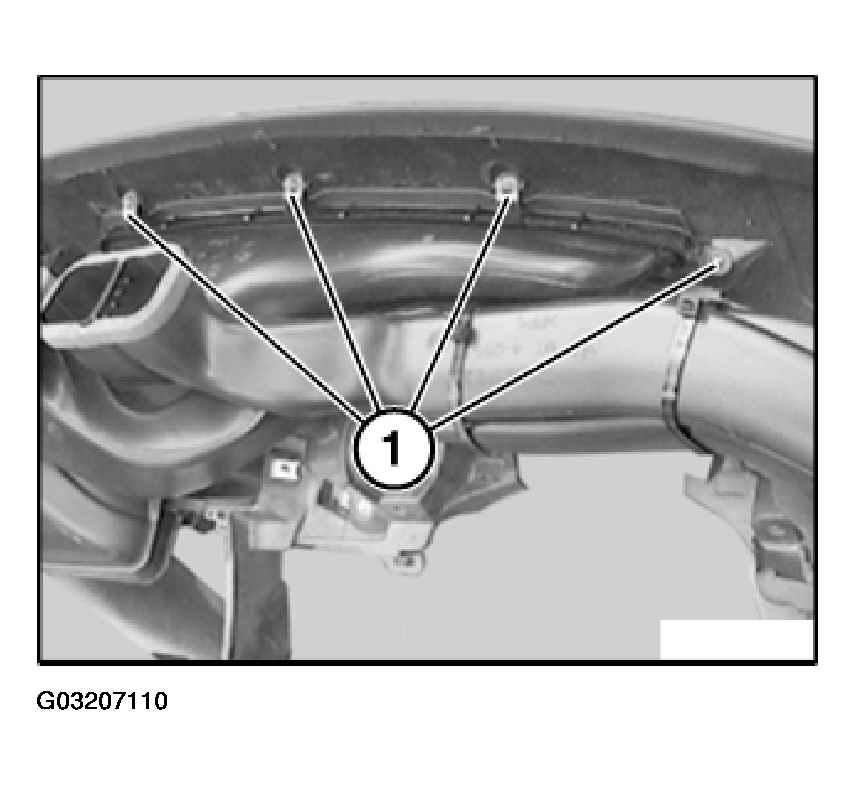

Fig 2: Releasing Screws On Left

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on right.

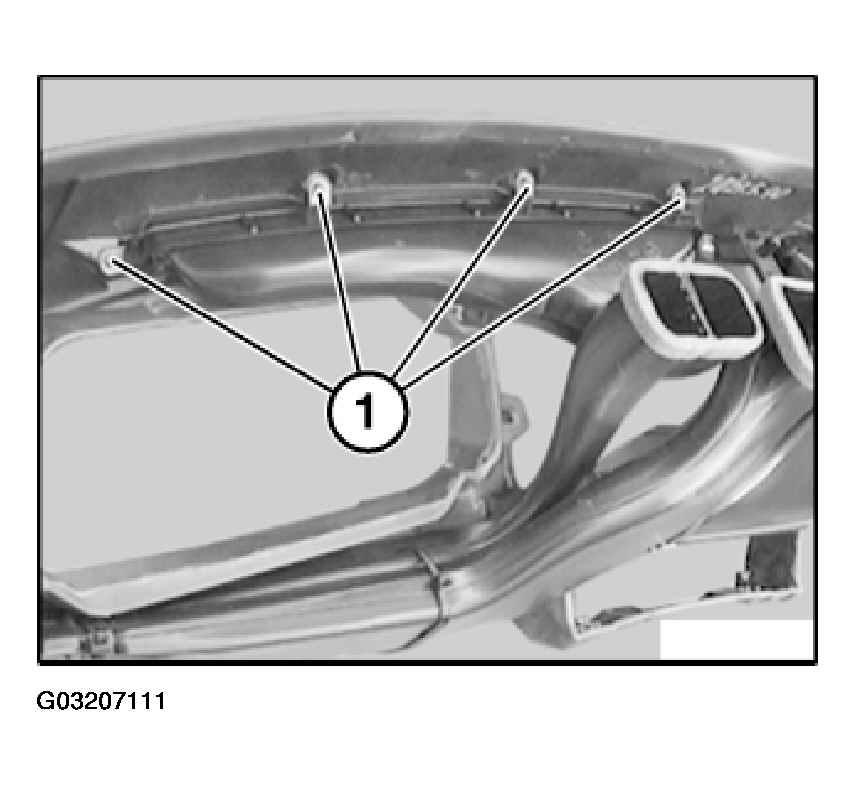

Fig 3: Releasing Screws On Right

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten right screw (1).

If necessary, detach retainers (2).

Release screws (3) and remove holder (4).

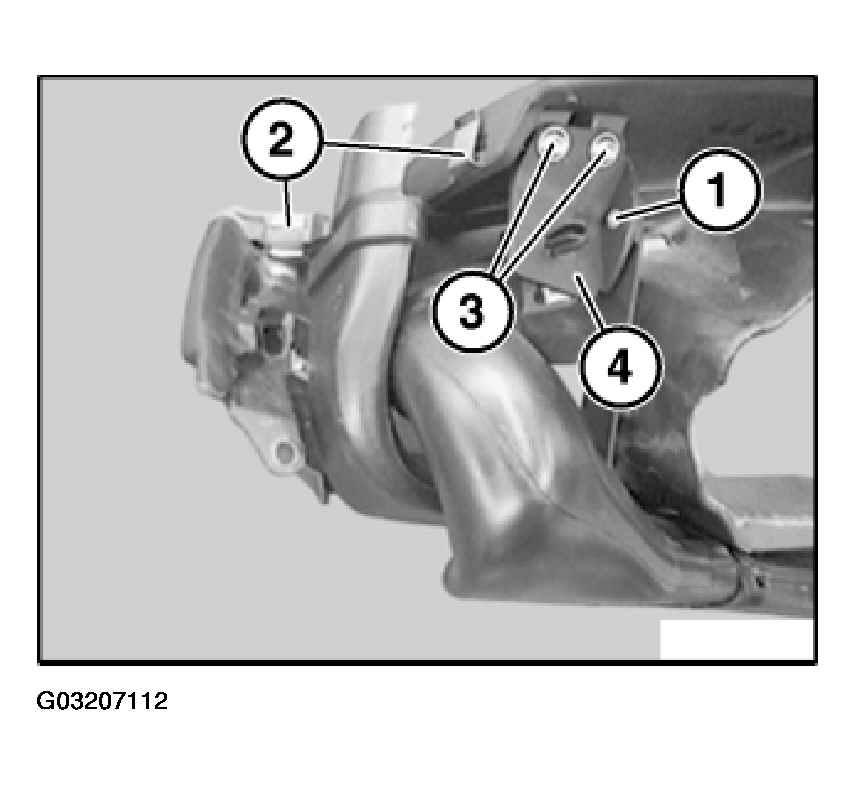

Fig 4: Removing Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and detach instrument panel from air duct.

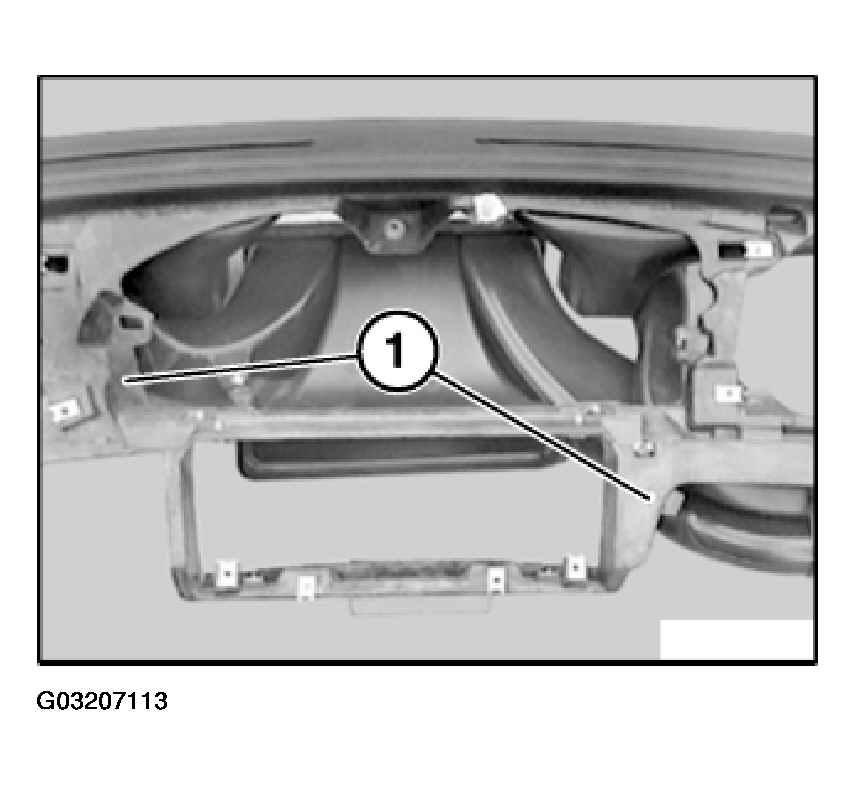

Fig 5: Detaching Instrument Panel From Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on reverse side in middle.

Remove centering block (2).

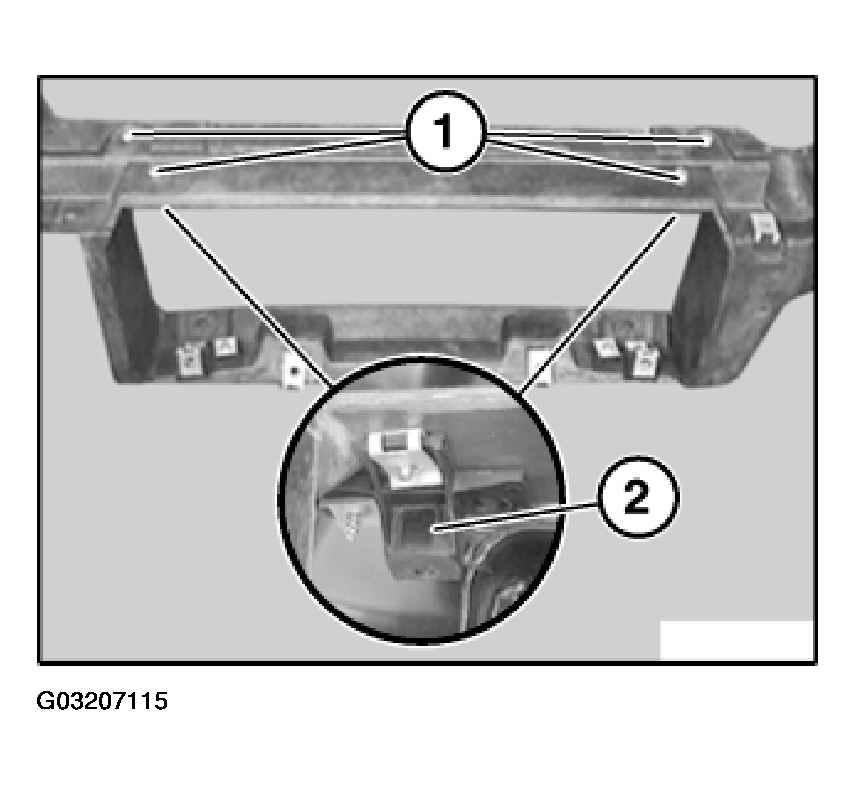

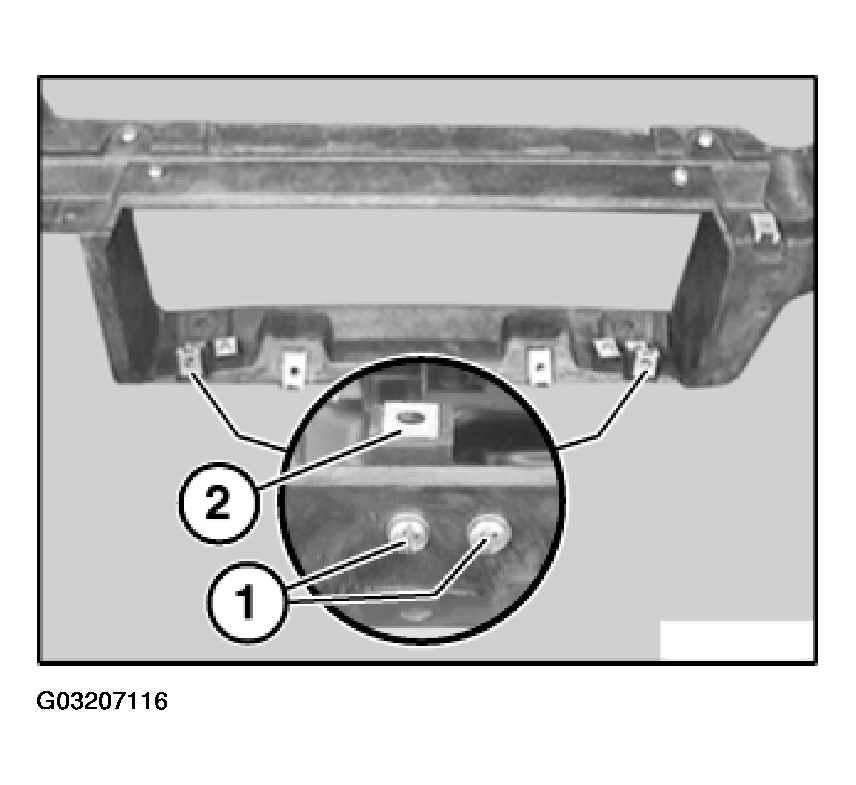

Fig 6: Removing Centering Block

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove retaining brackets (2) on left and right.

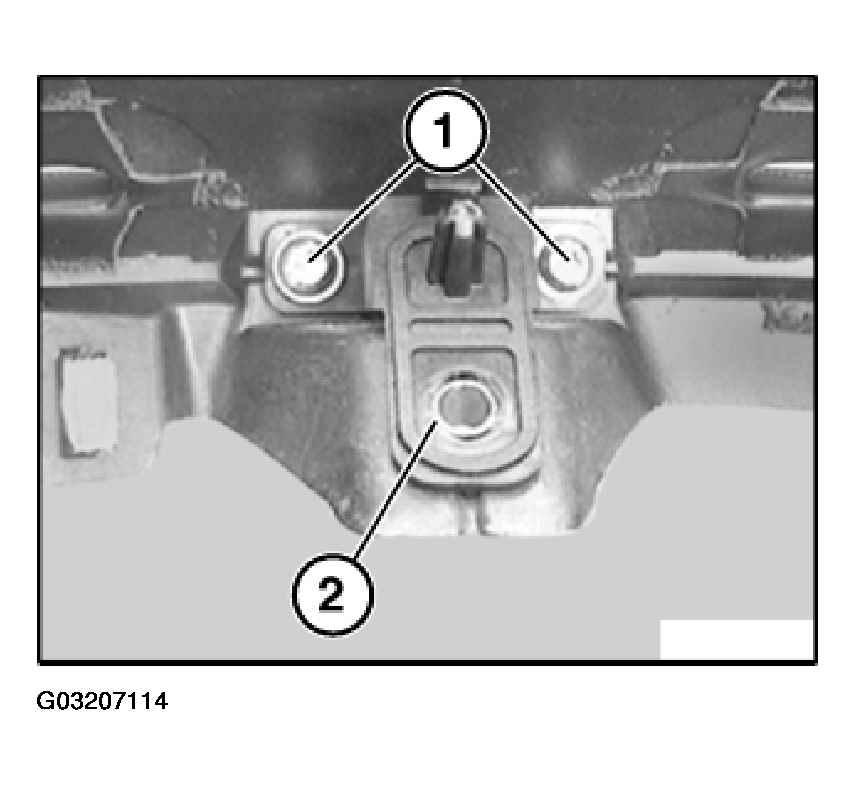

Fig 7: Removing Retaining Brackets

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove retaining brackets (2) on left and right.

Fig 8: Removing Retaining Brackets

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all metal nuts (10 x) from left part of instrument panel.

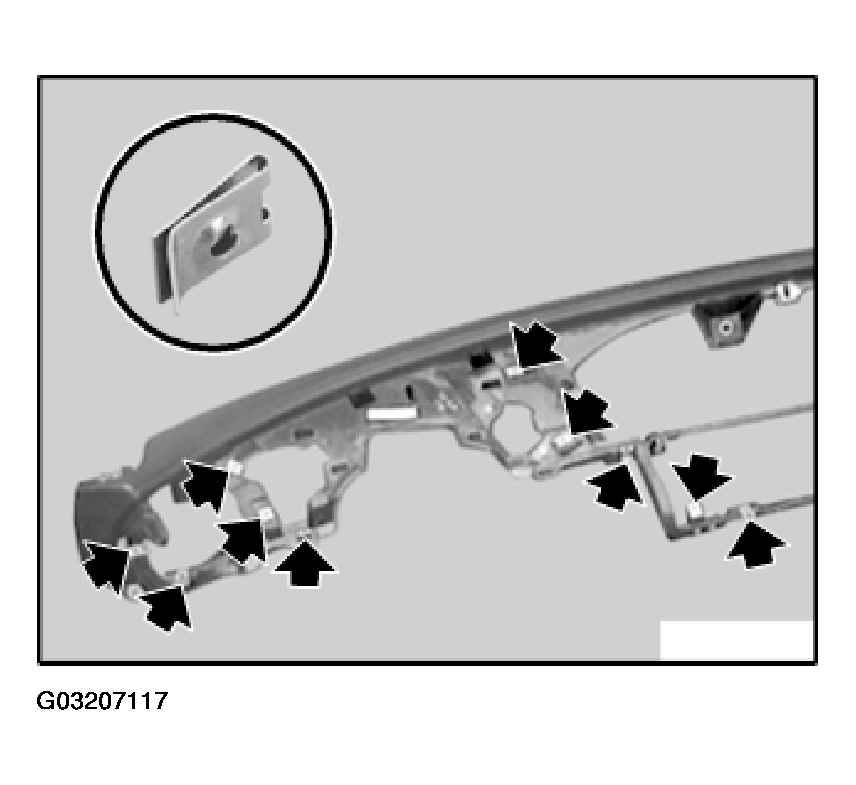

Fig 9: Removing Metal Nuts From Left Part Of Instrument Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty metal nuts.

Remove all metal nuts (9 x) from right part of instrument panel.

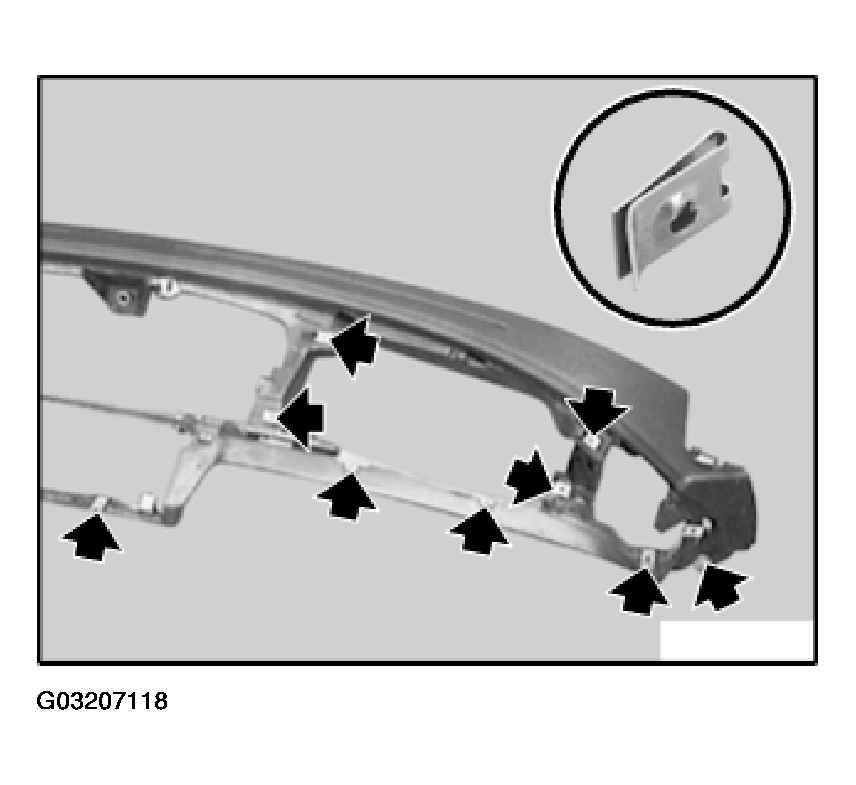

Fig 10: Removing Metal Nuts From Right Part Of Instrument Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty metal nuts.
