51 41 001 Replacing front left or right door trim

WARNING: This page is about a different car, the 2003 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove front door trim panel. Refer to 51 41 000 Removing and installing left or right front door trim panel .

Remove inside door opener in front door. Refer to 51 21 225 Removing and installing/replacing inner door opener on left or right front door .

Removing holder for door handle lighting:

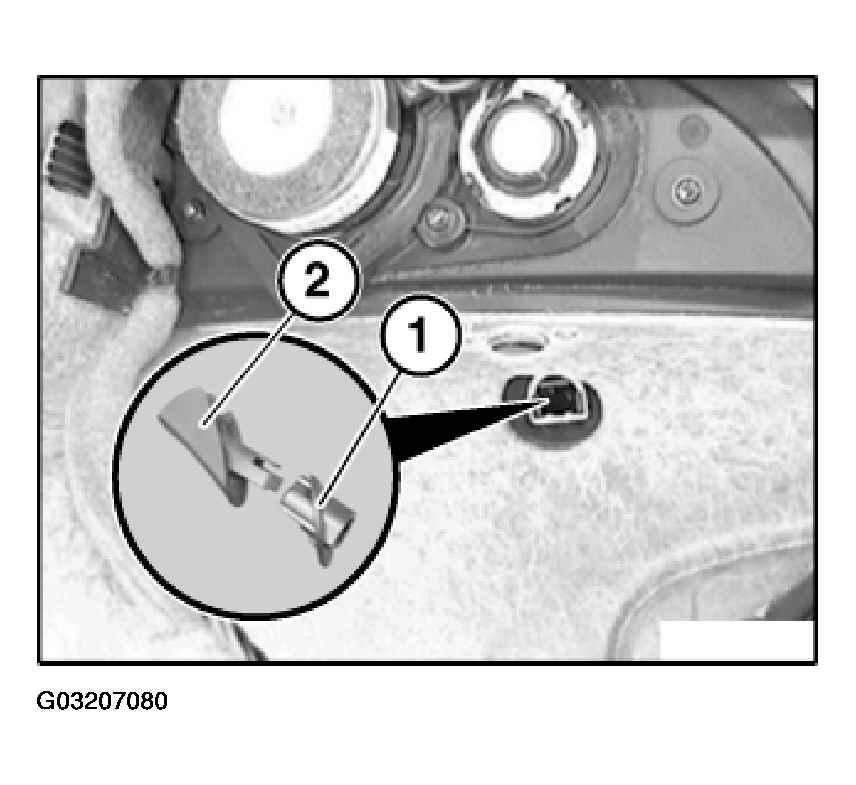

Detach inner section (1) and remove outer section (2) from door trim panel.

Fig 1: Removing Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Remove tweeter/mid-range speaker. Refer to 65 12 ... REMOVING AND INSTALLING/REPLACING TWEETER/MID-RANGE SPEAKER (LEFT OR RIGHT FRONT DOOR) .

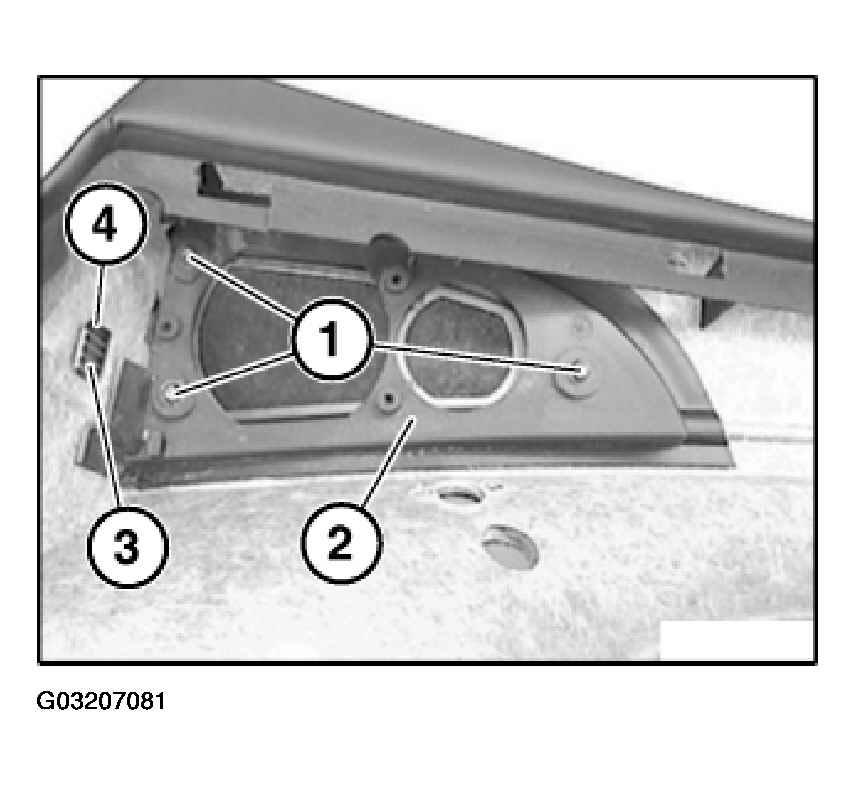

Release screws (1).

Fig 2: Removing Speaker Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Remove trim (2) for speaker.

Installation:

Feed lug (3) into opening (4).

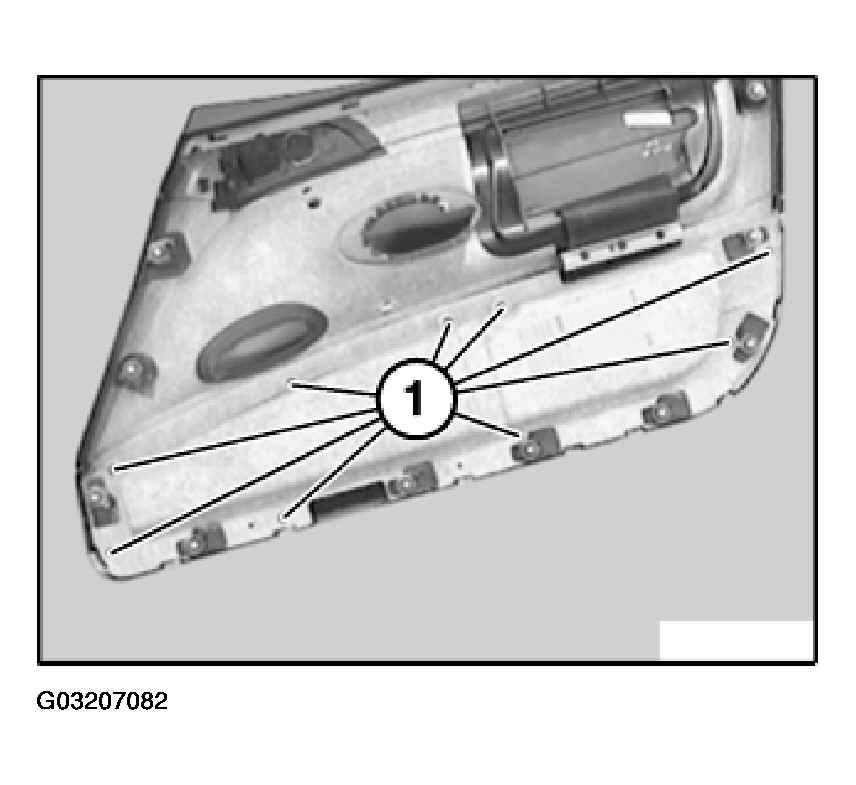

Release screws (1).

Remove storage trays from door trim panel.

Fig 3: Removing Storage Trays From Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
