51 21 225 Removing and installing/replacing inner door opener on left or right front door

WARNING: This page is about a different car, the 2003 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: To avoid damaging the leather trim and the door opener recess, pull off the door trim panel before removing the front door. Refer to 51 41 000 Removing and installing left or right front door trim panel .

Unlock and unhook Bowden cable (1).

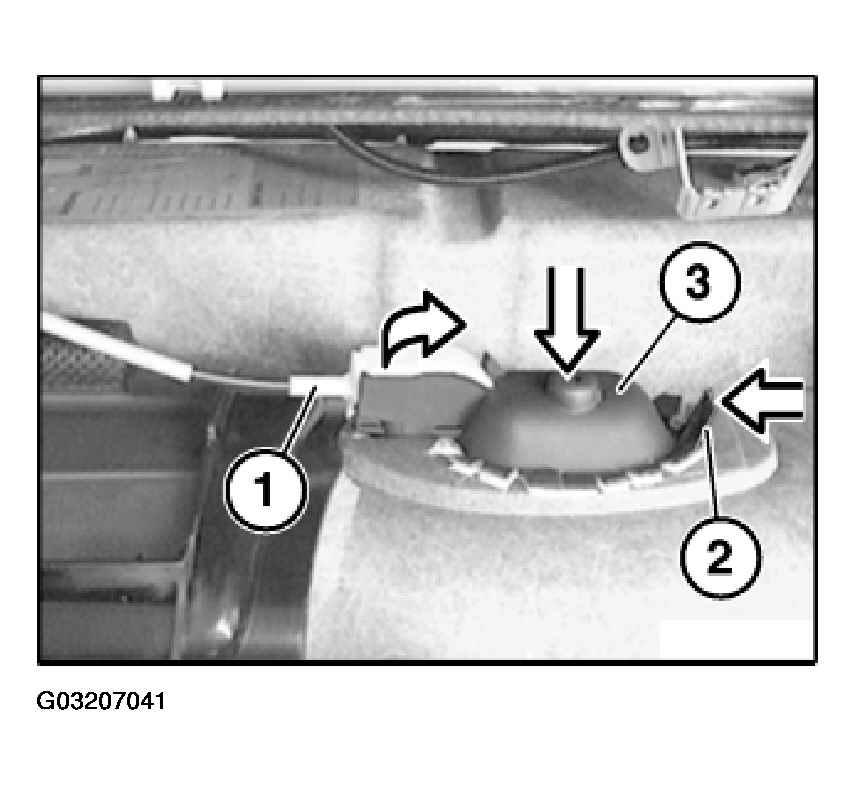

Fig 1: Removing Inner Door Opener

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock (2) on handle recess (3).

Remove handle recess (3) from door trim panel.

Installation:

During installation, press release lever fully onto handle recess.
