72 11 071 Removing and installing/replacing front lower strap fitting (belt tensioner), front passenger seat
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove FRONT PASSENGER SEAT
Installation note:
- Microencapsulated screws (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of hardening)
- Microencapsulated screws must not be retightened
- Clean thread of nut beforehand in event of repeated use

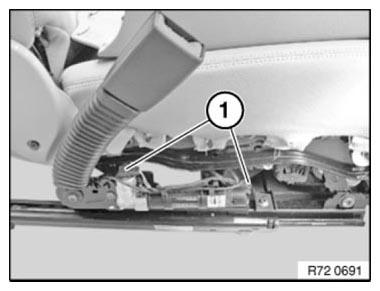

UNLOCK AND DISCONNECT plug connections (1).

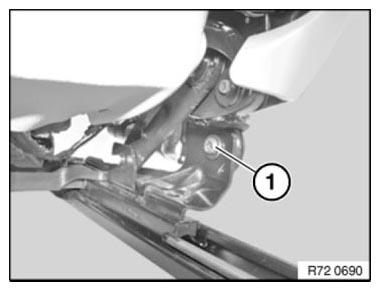

Release screw (1).
Installation note:
Replace screw (1).
Tightening torque 72 11 3AZ .
Remove seat belt tensioner.
Installation note:
Belt tensioner is coded against incorrect assembly.
