72 12 000 Removing and installing or replacing airbag module on front passenger side

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Operations on pyrotechnical devices may only be carried out by authorized experts.

Improper, unauthorized operations may result in serious dangers.

Unauthorized persons are strictly prohibited from performing any operations on this system.

WARNING: Comply with SAFETY INFORMATION for handling airbag system components.

Incorrect handling can lead to airbag deployment and cause injury.

A damaged airbag must be replaced because its protective function is compromised or, in an extreme situation, it can no longer execute its protective function.

Necessary preliminary work:

Disconnect BATTERY NEGATIVE CABLE
Remove GLOVE BOX WITH HOUSING

Release screws from holder.

NOTE: The holder does not have to be removed to access the front screws on the airbag module.

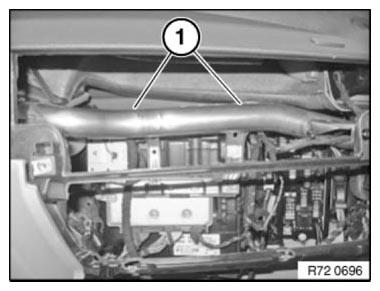

Fig 1: Identifying Holder Screw

G06886665

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (2) and disconnect.

Release screw (1).

Swing control unit out of rubber mount and feed out.

Fig 2: Identifying Plug Connection And Control Unit Screw

G06886666

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock PLUG CONNECTION (1) and disconnect.

Fig 3: Identifying Plug Connection

G06886667

Courtesy of BMW OF NORTH AMERICA, INC.

Release all screws on airbag module.

9 Screw = F01, F02, F03, F04

Tightening torque 72 12 1AZ .

Remove airbag module from dashboard.

Fig 4: Identifying Airbag Module Screws

G06886668

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Shown on F06 in illustration. There may be differences in detail in the case of other vehicles. The number of screws may differ.

NOTE:

If the specified torque is not reached at one threaded fastener, the airbag has to be secured additionally at all bolting points (1).

Drill out all bolting points (1).

Diameter: 4.7 mm

Depth (including airbag module): 15.5 - 16.0 mm

Do not re-use a faulty threaded fastener.

If there is more than one faulty threaded fastener the instrument panel has to be replaced.
