63 13 250 Removing and installing/replacing front left or right side repeater mirror (from 07/2012)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove EXTERIOR MIRROR ON FRONT DOOR
Remove RETAINING RING ON EXTERIOR MIRROR

Release plug connection (1) on central connector (2) and disconnect.

Fig 1: Identifying Plug Connection On Central Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out cable (1).

Feed side repeater (3) in direction of arrow out of mirror housing (2).

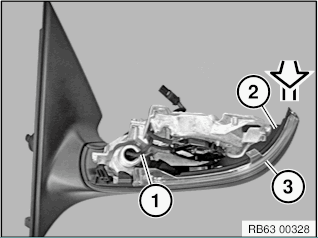

Fig 2: Identifying Side Repeater, Mirror Housing, And Cable

Courtesy of BMW OF NORTH AMERICA, INC.
