63 21 170 Removing and installing/replacing left or right rear light (on rear lid)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove COMPLETE REAR CENTER TRIM

Unscrew nuts (1).

Disconnect plug connection (2).

Remove rear light (3).

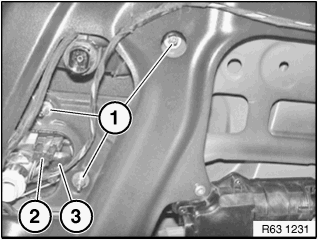

Fig 1: Identifying Rear Light, Connector, And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove BULBS .

If necessary, replace CHROME TRIM .
