51 13 400 Removing and installing or replacing rear center trim

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

If necessary, remove license plate
Remove PANEL FOR TAILGATE

NOTE: Detaching rear center trim is shown on the left side; proceed in same way for detaching on the right side.

Release nut (1) on rear center trim (2).

Tightening torque 51 13 1AZ .

Fig 1: Identifying Rear Center Trim With Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip plastic clips (1) with rear lid opened.

Remove complete rear center trim (2) in direction of arrow.

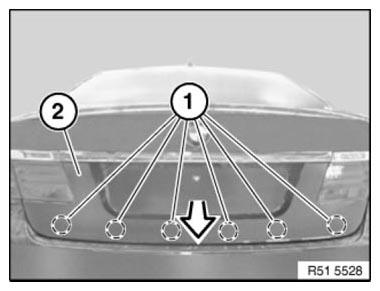

Fig 2: Removing Rear Center Trim With Plastic Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If necessary, replace faulty plastic clips (1).

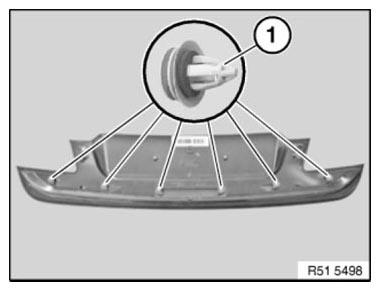

Fig 3: Identifying Plastic Clips

Courtesy of BMW OF NORTH AMERICA, INC.
