35 21 041 Replacing spring for brake pedal

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FOOTWELL TRIM on driver's side

Disconnect return spring (1).

NOTE: Check grommet (2) for damage, replace if necessary.

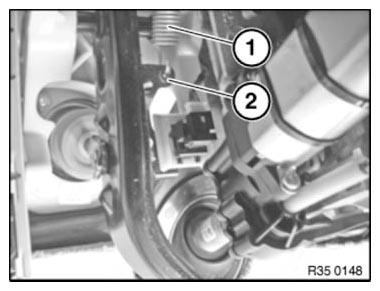

Fig 1: Identifying Return Spring And Grommet

Courtesy of BMW OF NORTH AMERICA, INC.
