41 62 043 Removing And Installing/Replacing Left Hinge For Tailgate
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL
Carry over schematic diagram to the relevant vehicle type.
Necessary preliminary work:
- Remove TAILGATE
- Remove TENSION SPRING/SPINDLE DRIVE
- Remove PANEL FOR STORAGE SHELF
- Remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL

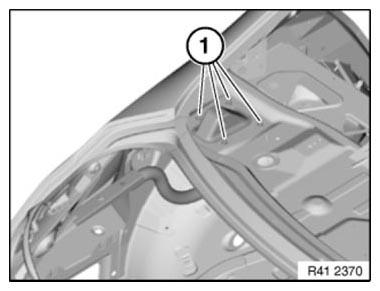

Open screw connections (1) on vehicle.
Remove hinge.
Installation note:
Tightening torque 41 62 2AZ .
ADJUST hinge together with tailgate.
