51 47 151 Removing and installing/replacing left luggage compartment wheel arch panel

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove TRIM FOR TOP TAIL PANEL
Remove LUGGAGE COMPARTMENT STORAGE COMPARTMENT
F02 only, with optional rear air conditioning and initial equipment from 11/2010: Remove luggage compartment partition wall

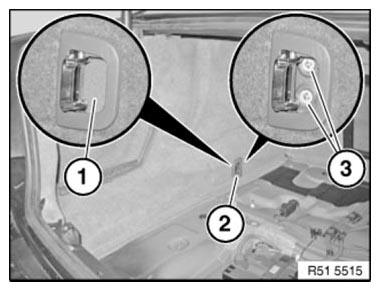

Lever out trim (1) in lashing eye (2) at opening and remove.

Release screws (3) and remove lashing eye (2).

Fig 1: Identifying Trim, Lashing Eye And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

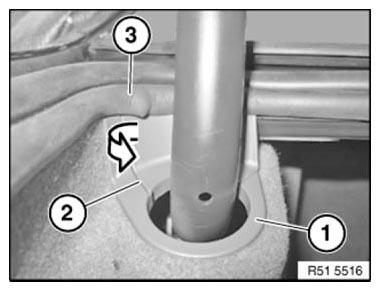

Open holder (1) at opening (2) with a suitable tool.

Lever holder (1) out of seal (3).

Fig 2: Removing Holder Out Of Seal

Courtesy of BMW OF NORTH AMERICA, INC.

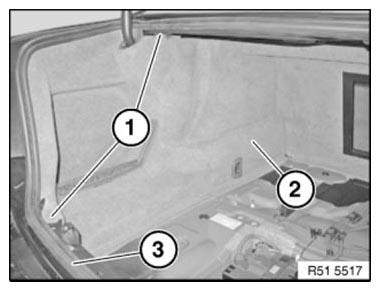

Release expanding rivets (1).

Lever out luggage compartment wheel arch trim (2) from seal (3) and remove.

Fig 3: Identifying Expanding Rivets, Luggage Compartment Wheel Arch Trim And Seal

Courtesy of BMW OF NORTH AMERICA, INC.
