13 54 030 Removing and installing/replacing throttle body (S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Interrogate fault memory of DME control unit. Switch off ignition. Remove manifold for intake air. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (S62) .
Instructions apply to removing and installing both throttle body assemblies on left and right. The illustrations show the left throttle body assembly being removed.

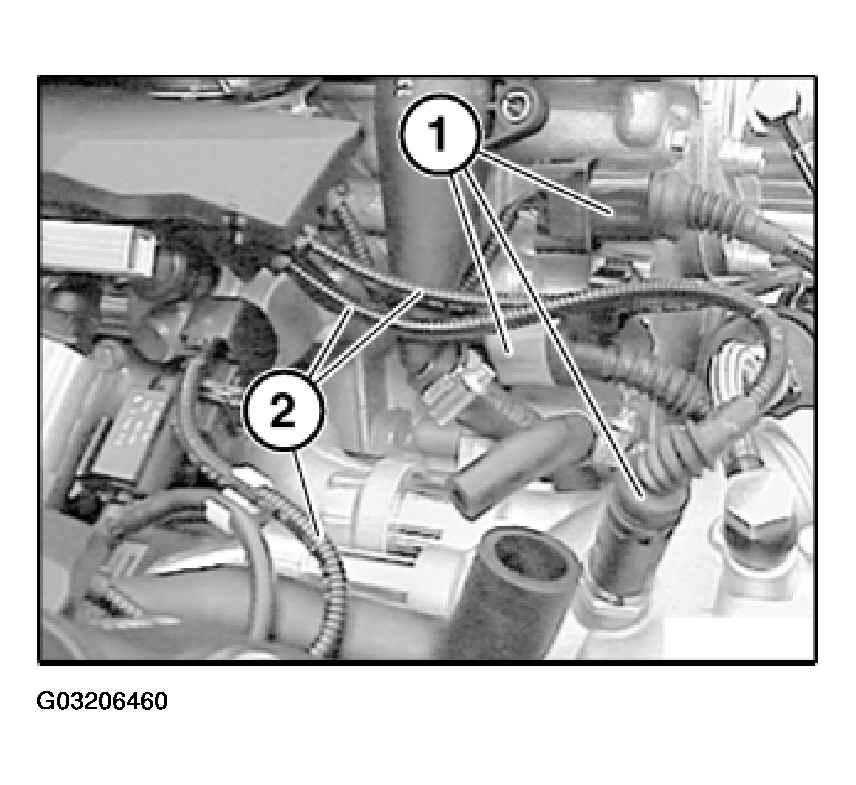

Disconnect plug connections (1).

Unclip cables (2) from cable guides.

Fig 1: Disconnecting Plug Connections
G03206460Courtesy of BMW OF NORTH AMERICA, INC.

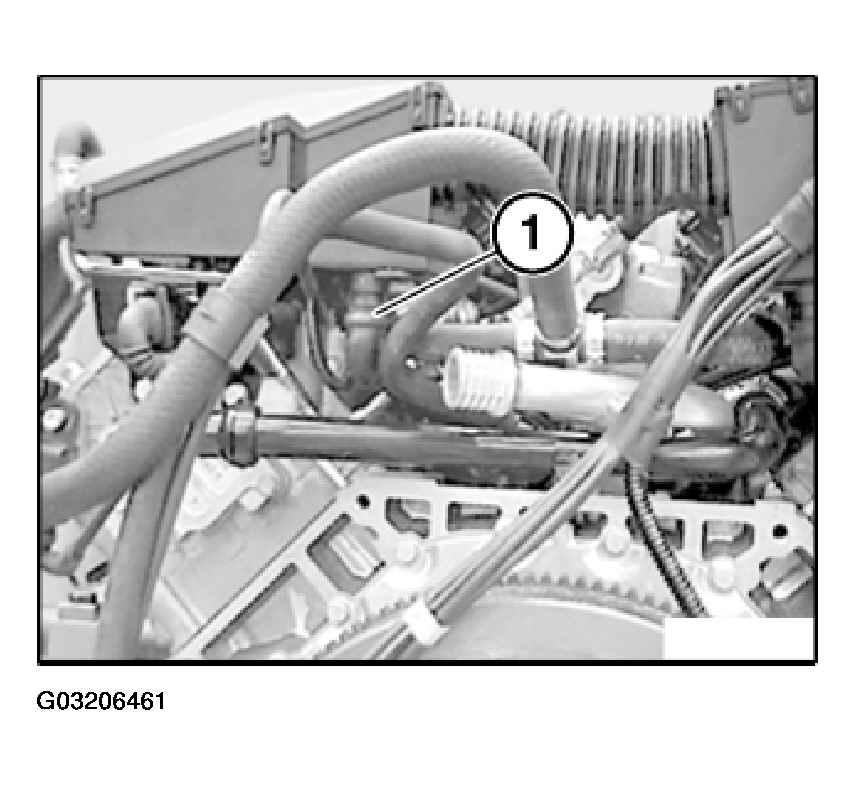

Disconnect plug connections (1) on left knock sensor pair.

Fig 2: Disconnecting Plug Connections On Left Knock Sensor Pair
G03206461Courtesy of BMW OF NORTH AMERICA, INC.

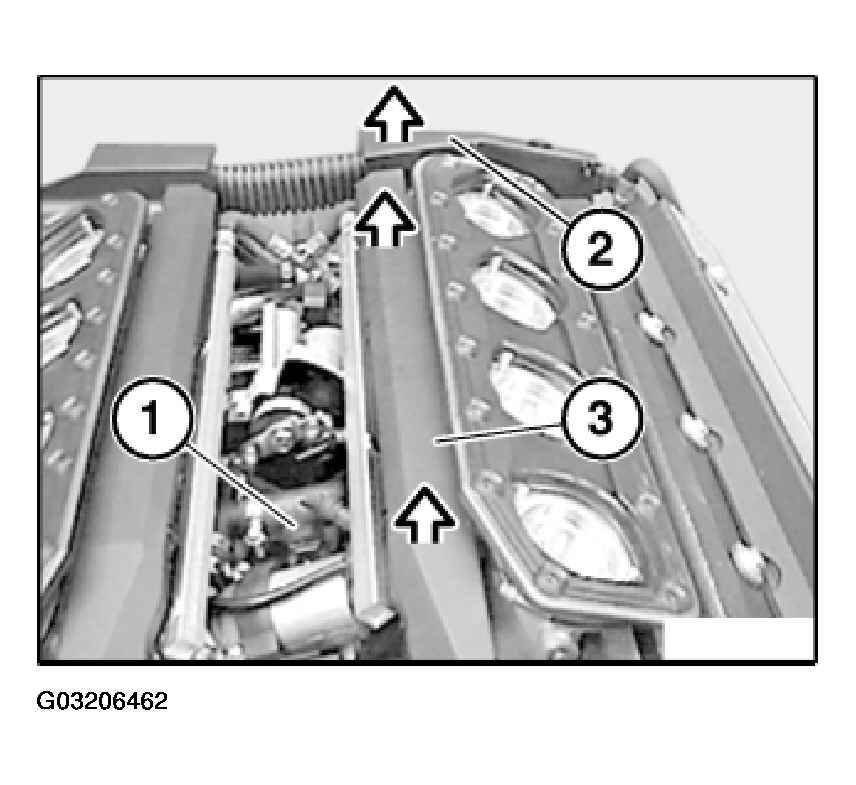

Disconnect plug connection (1) on throttle actuator.

Fig 3: Disconnecting Plug Connection On Throttle Actuator
G03206462Courtesy of BMW OF NORTH AMERICA, INC.

Unhook cable duct (2) from mounts and raise approx. 2 cm.

Installation:

Check seating of rubber grommet on ignition coil cable.

Unclip cable strip (3) from injector valves, push upwards and tie back with cable ties (e.g. to engine hood).

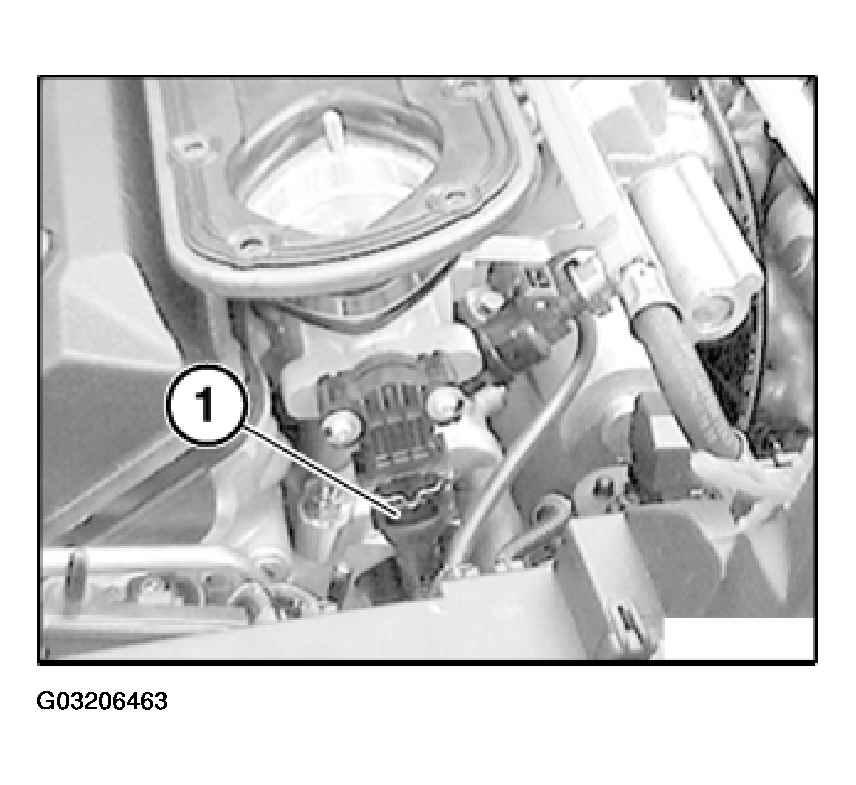

Disconnect plug connection (1) on throttle potentiometer.

Fig 4: Disconnecting Plug Connection On Throttle Potentiometer
G03206463Courtesy of BMW OF NORTH AMERICA, INC.

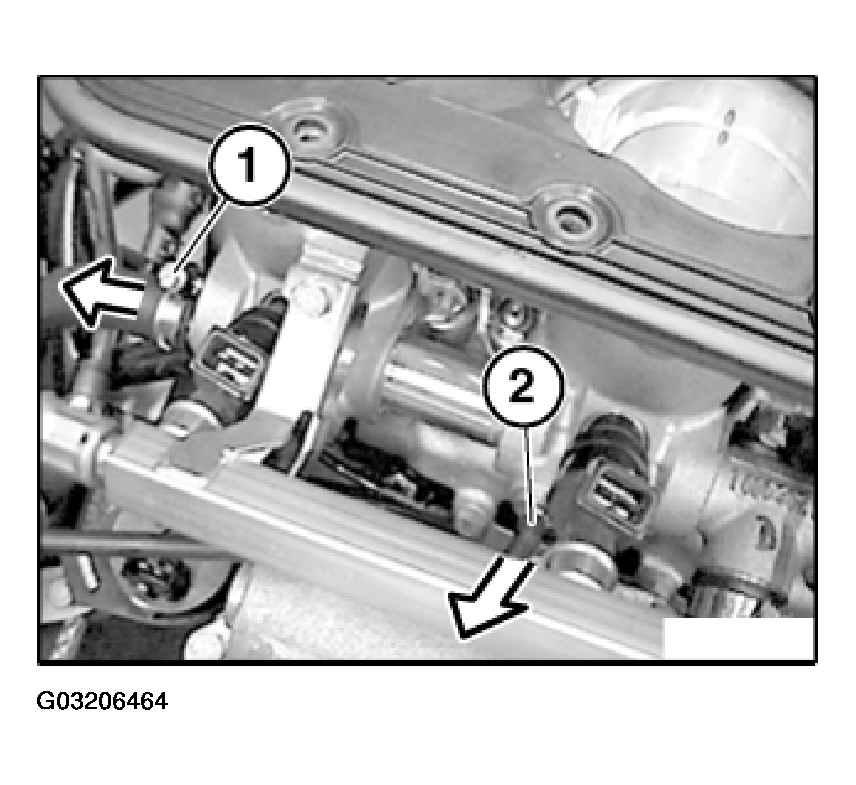

Unfasten hose clip (1) and remove hose.

Pull off vacuum hose (2).

Fig 5: Pulling Off Vacuum Hose
G03206464Courtesy of BMW OF NORTH AMERICA, INC.

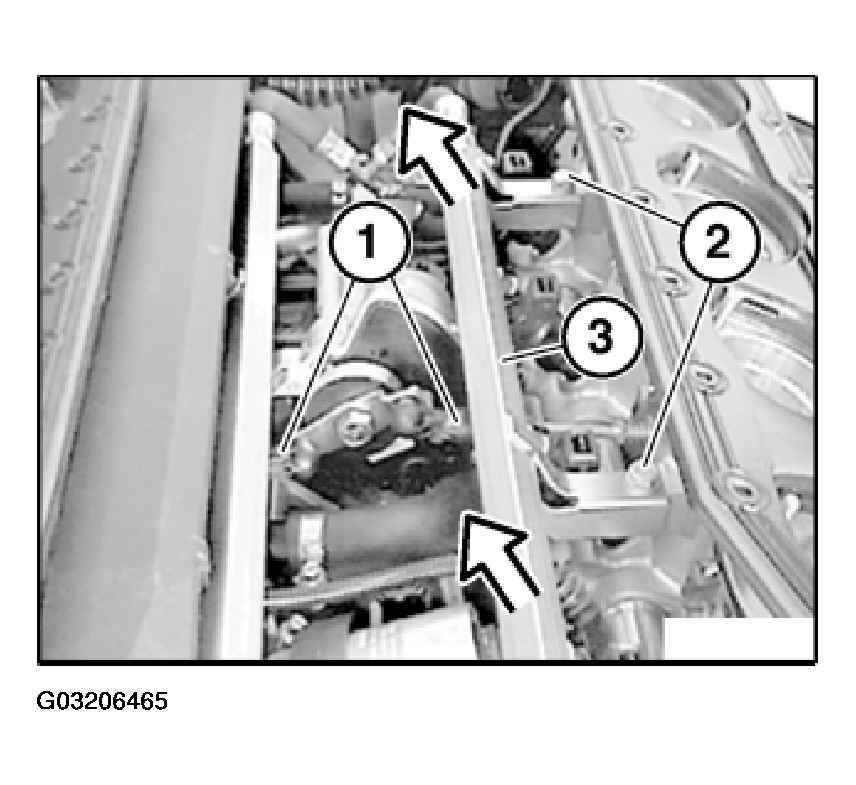

Unhook pull rods (1) at ball heads on servomotor side. Release screws (2).

Fig 6: Unhooking Pull Rods
G03206465Courtesy of BMW OF NORTH AMERICA, INC.

Remove injection pipe (3) together with injector valves towards top.

Installation:

Check O-rings on fuel injectors, replace if necessary. Coat O-rings with anti-friction rubber coating (e.g. petroleum jelly).

Remove and install sealing flange for intake air manifold, refer to 11 61 056 REPLACING SEALING FLANGE FOR LEFT OR RIGHT INTAKE AIR MANIFOLD (S62)  .

Installation:

Adjust throttle basic setting, refer to 13 54 010 PERFORMING THROTTLE BASIC SETTING (S62)  .

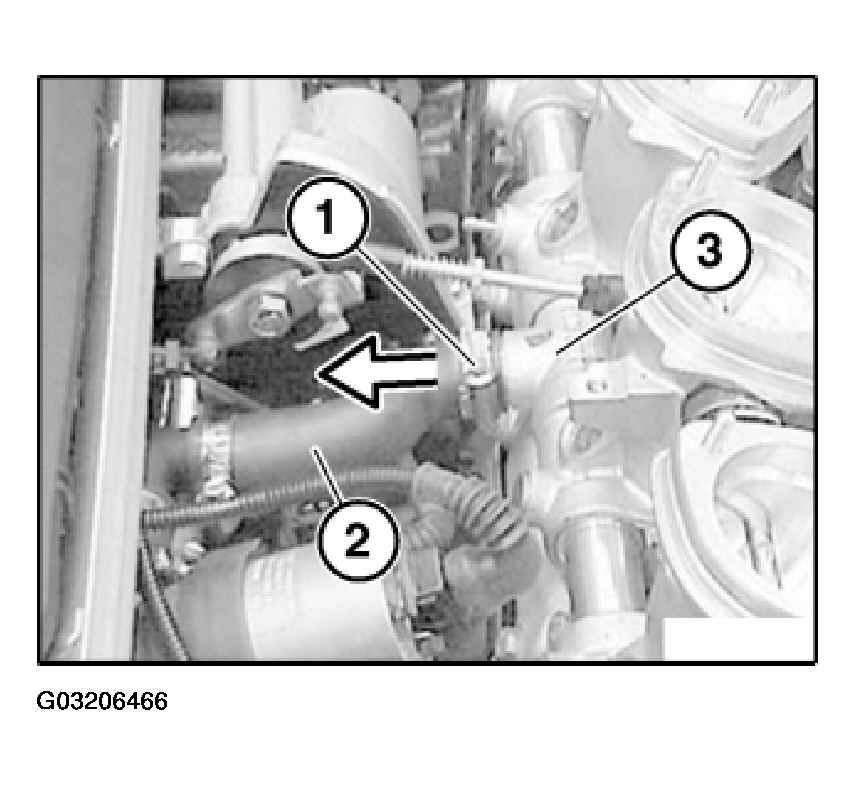

Unfasten hose clip (1).

Fig 7: Detaching Hose From T-Piece
G03206466Courtesy of BMW OF NORTH AMERICA, INC.

Detach hose (2) from T-piece (3).

NOTE: When removing the right throttle body assembly, it is essential to detach two further hoses from the T-piece.

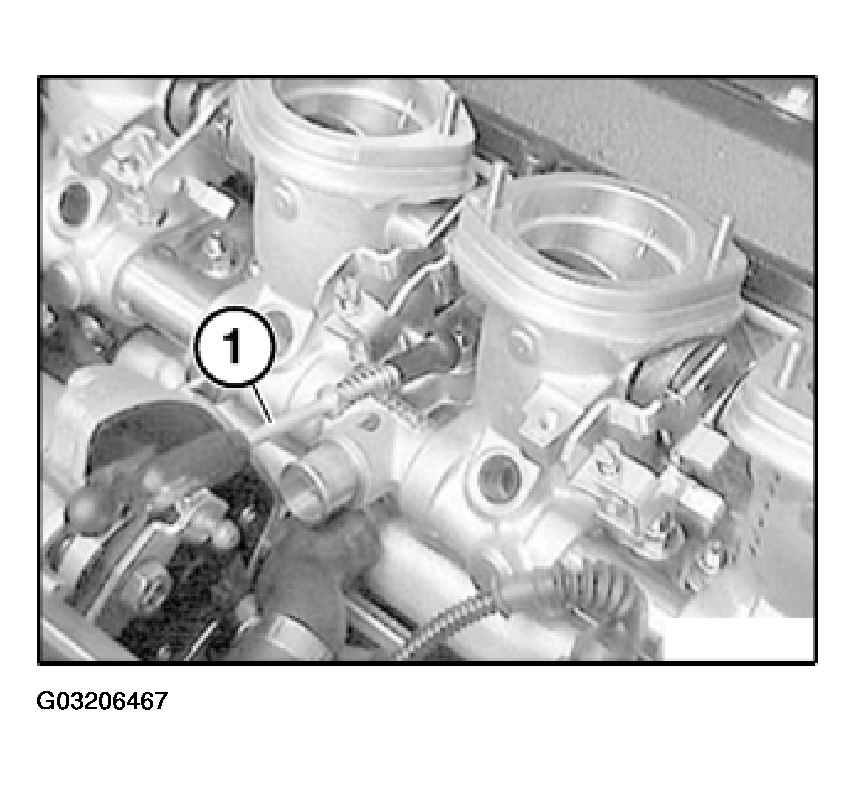

NOTE: If necessary, pull on pull rod (1) to gain better access to nuts.
Fig 8: Locating Pull Rod
G03206467Courtesy of BMW OF NORTH AMERICA, INC.

To release and tighten nuts: Use an articulated socket wrench (11 A/F).

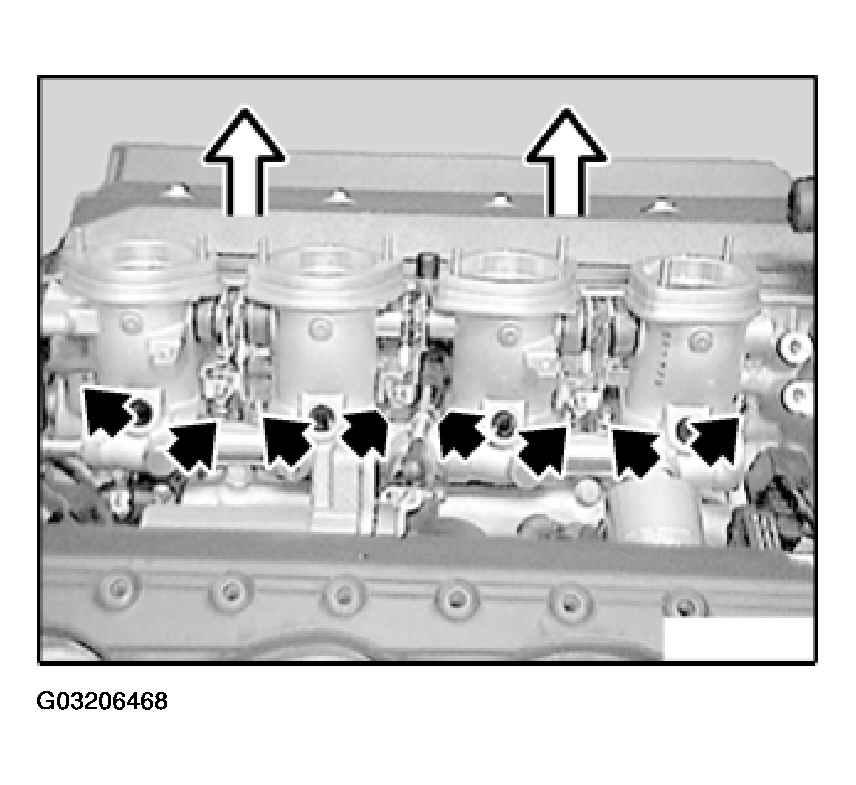

Release nuts on flanges at bottom (8 x in all). Lift off throttle body completely.

Fig 9: Lifting Off Throttle Body
G03206468Courtesy of BMW OF NORTH AMERICA, INC.

Tightening Torque, 13 54 1AZ. Refer to FUEL SYSTEM - TIGHTENING TORQUES .

Installation:

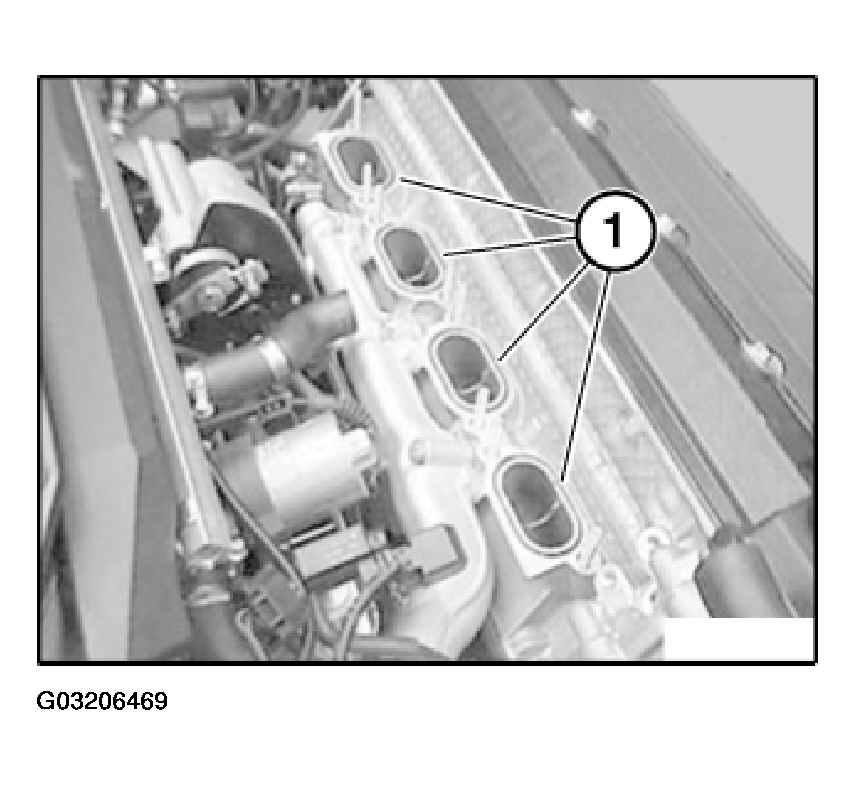

Replace O-rings (1). Coat O-rings with anti-friction rubber coating (e.g. petroleum jelly).

Fig 10: Replacing O-Rings
G03206469Courtesy of BMW OF NORTH AMERICA, INC.

Clean sealing surfaces on cylinder head.

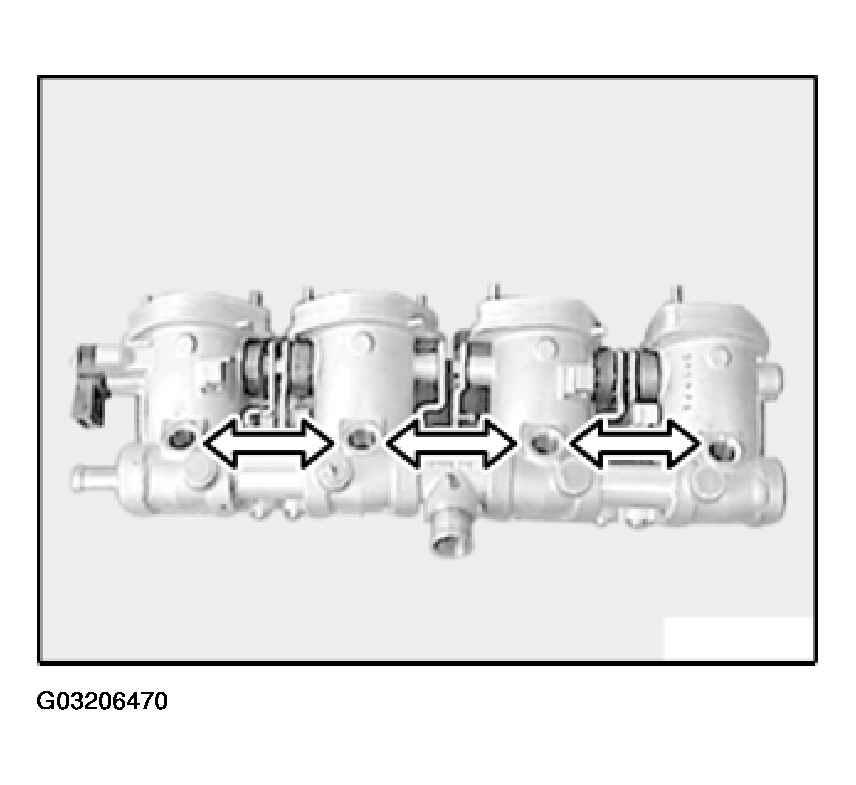

Pull throttle body apart. Check throttles for freedom of movement and if necessary replace throttle body.

Fig 11: Pulling Throttle Body Apart
G03206470Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

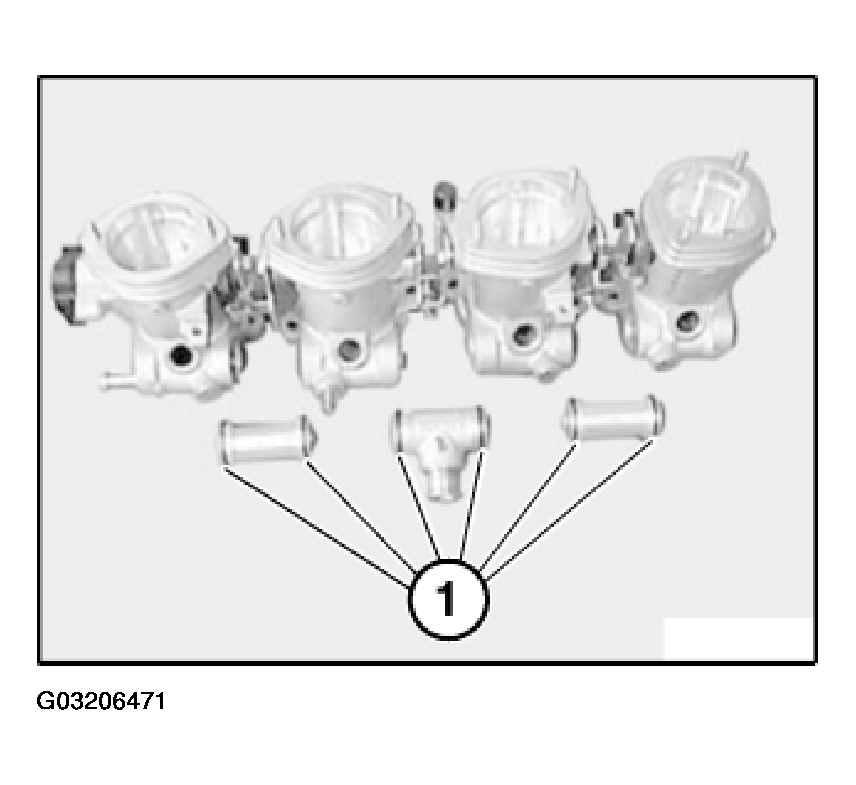

Replace O-rings (1) on connecting tubes and T-piece. Coat O-rings with anti-friction rubber coating (e.g. petroleum jelly).

Fig 12: Replacing O-Rings On Connecting Tubes And T-Piece
G03206471Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

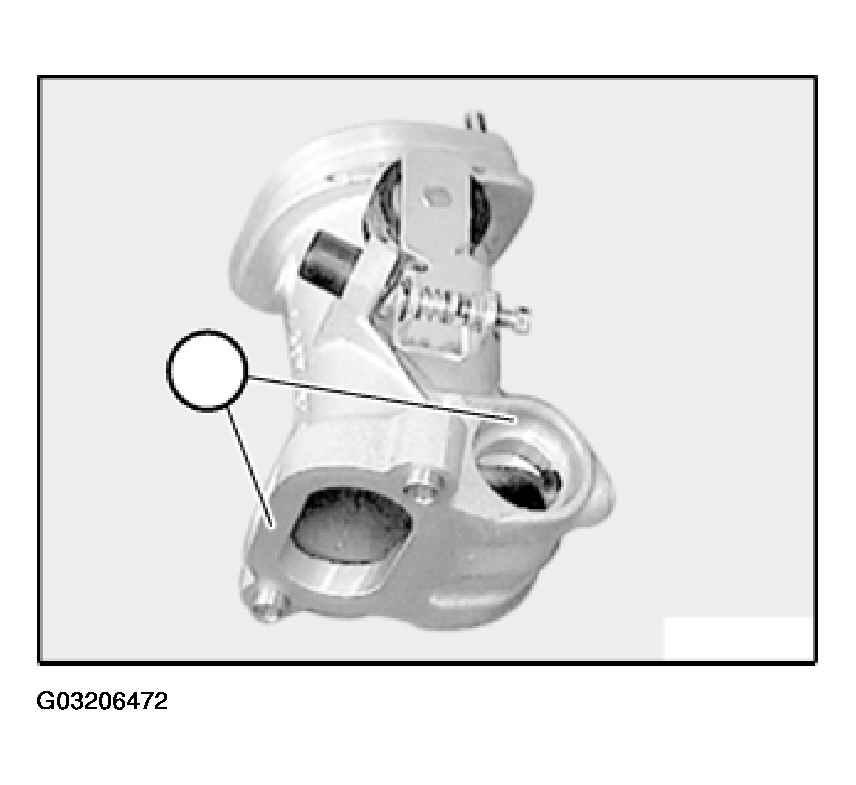

Clean sealing surfaces (1) of throttle body.

Fig 13: Cleaning Sealing Surfaces Of Throttle Body
G03206472Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

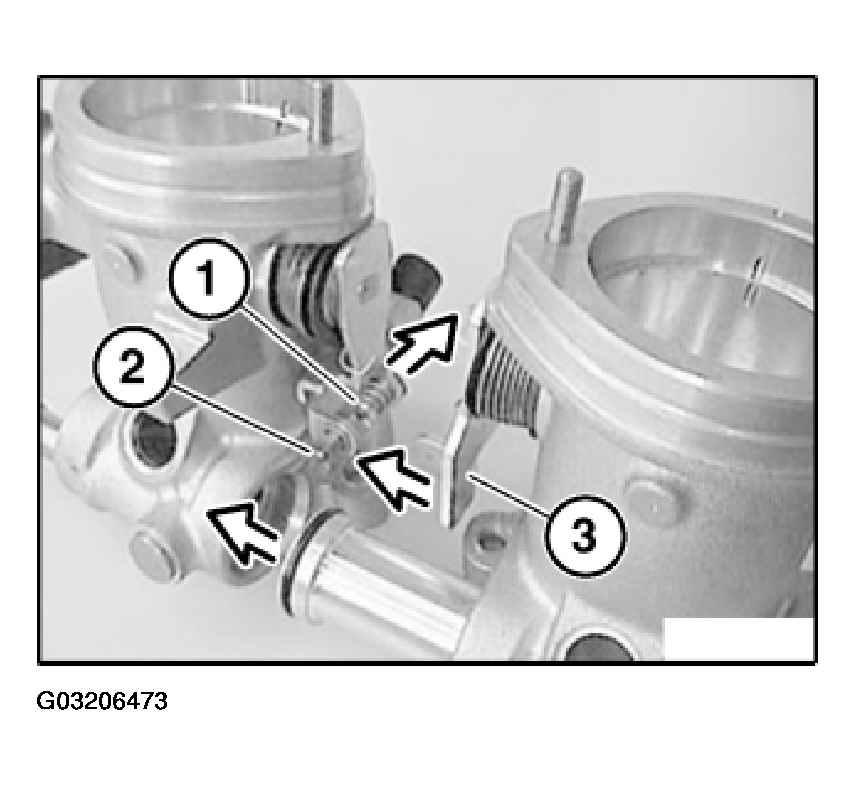

Push spring bolt (1) back a little.

Fig 14: Inserting Throttle Lever
G03206473Courtesy of BMW OF NORTH AMERICA, INC.

Insert throttle lever (3) between adjusting screw (2) and spring bolt (1).
