13 54 010 Performing throttle basic setting (S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Interrogate fault memory of DME control unit. Switch off ignition.

NOTE: The basic setting of the throttles cannot be checked. It must always be set.

NOTE: Remove and install intake air manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (S62) .

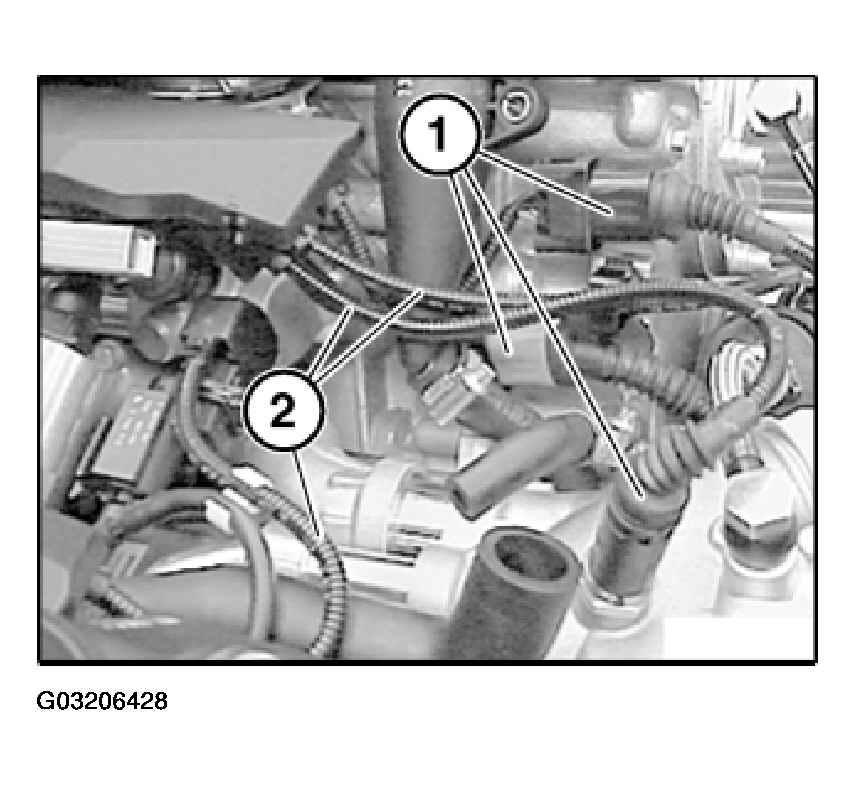

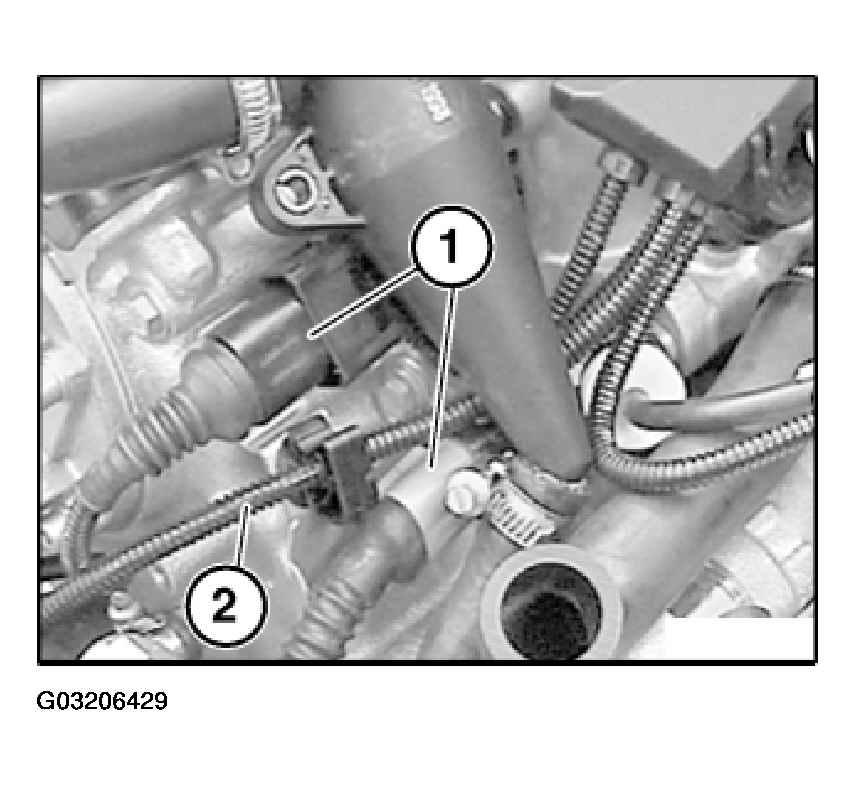

Disconnect plug connections (1). Unclip cables (2) from cable guides.

Fig 1: Disconnecting Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1).

Unclip cables (2) from cable guides.

Fig 2: Unclipping Cables From Cable Guides

Courtesy of BMW OF NORTH AMERICA, INC.

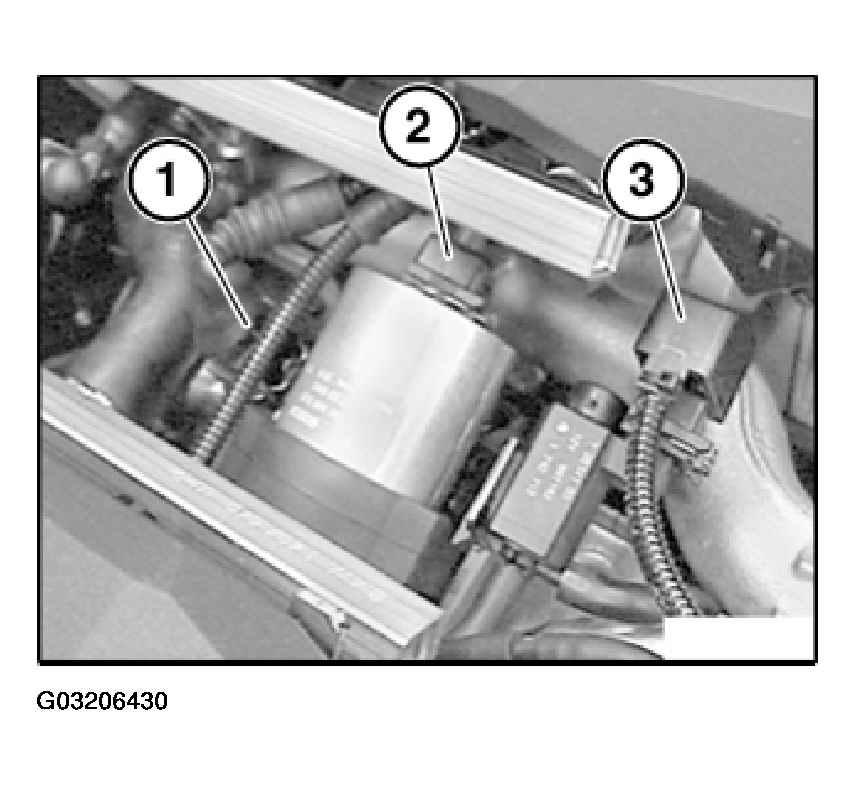

Disconnect plug connection on throttle actuator (1), idle speed control valve (2) and electric changeover valve (3).

Fig 3: Disconnecting Plug Connection On Throttle Actuator

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) of left and right knock sensor pair from cable duct.

Fig 4: Disconnecting Plug Connection Of Left And Right Knock Sensor Pair

Courtesy of BMW OF NORTH AMERICA, INC.

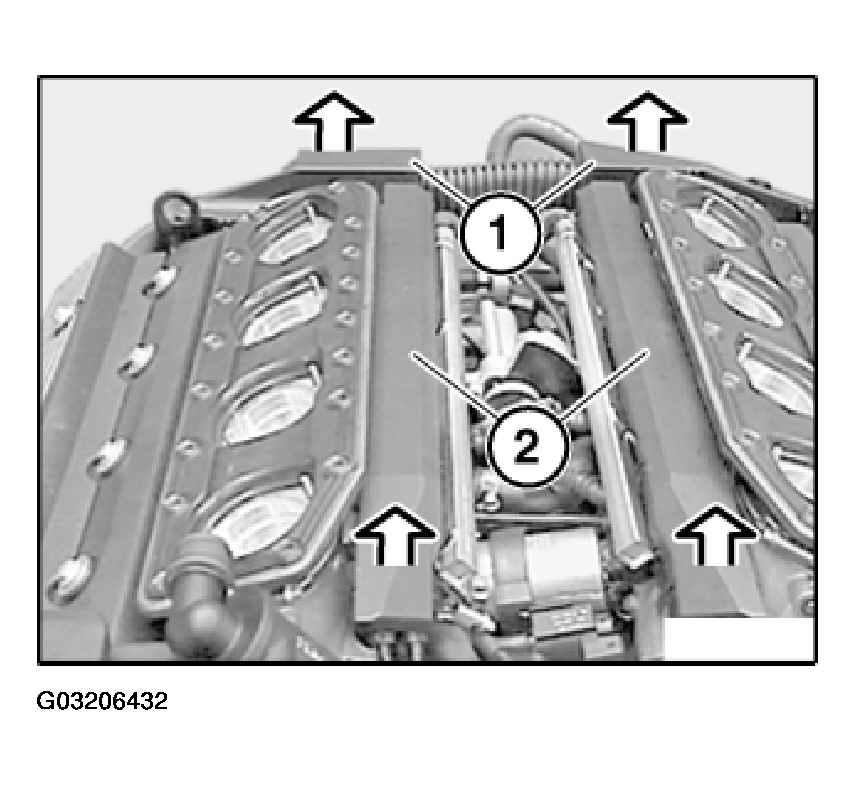

Raise both cable ducts (1) approx. 2 cm.

Fig 5: Raising Cable Ducts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check seating of rubber grommets on ignition coil cables.

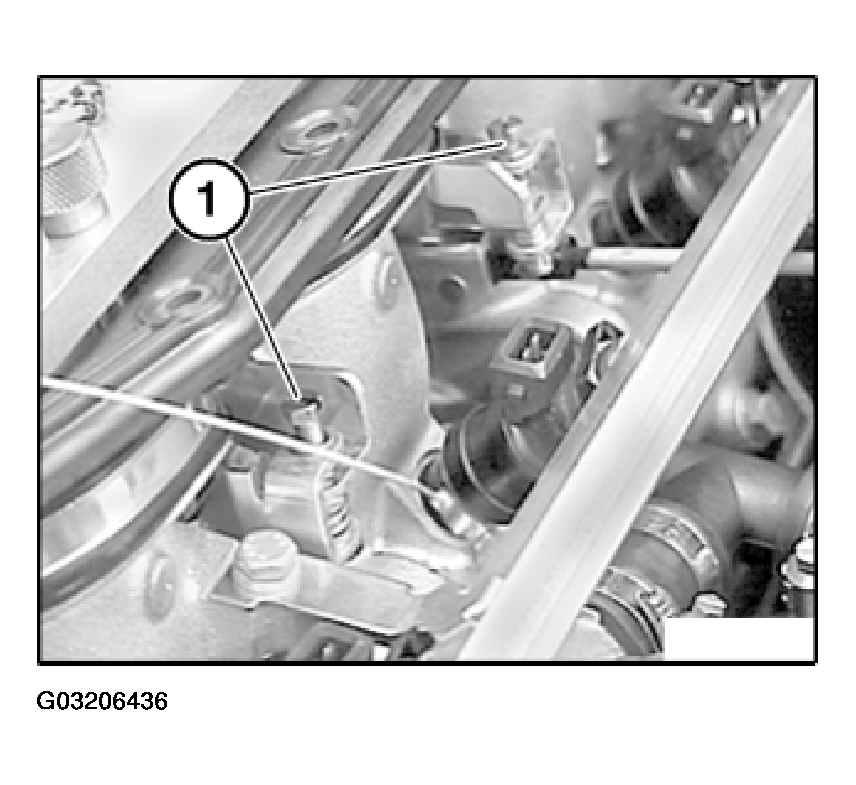

Unclip both cable strips (2) from fuel injectors, tilt up and tie back (e.g. to engine hood).

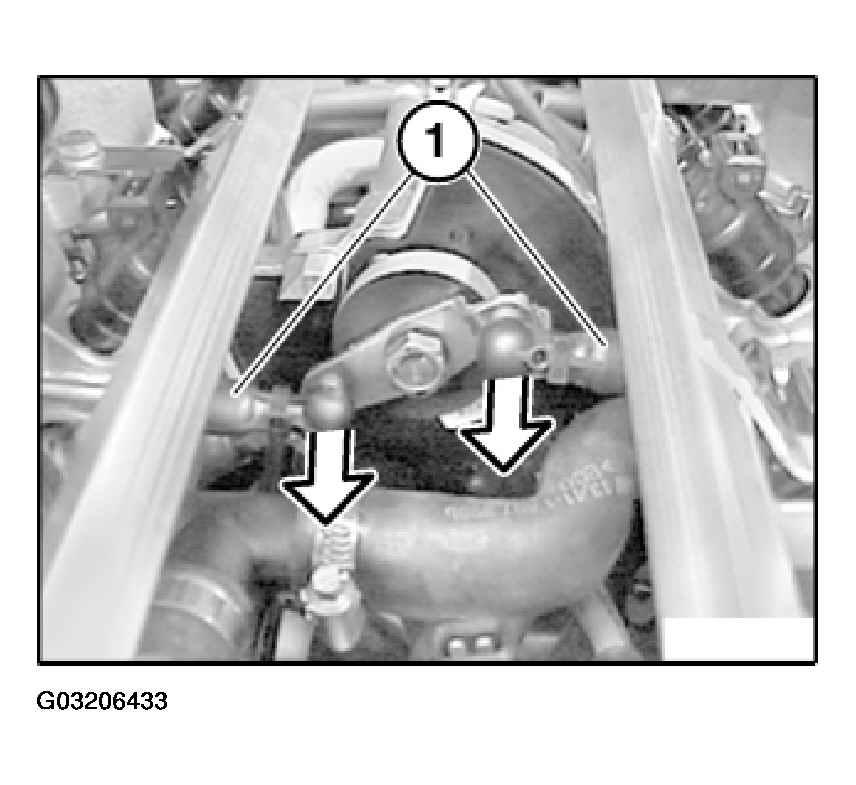

Unhook pull rods (1) at ball heads on servomotor side only.

Fig 6: Unhooking Pull Rods

Courtesy of BMW OF NORTH AMERICA, INC.

Setting throttles 1 and 2:

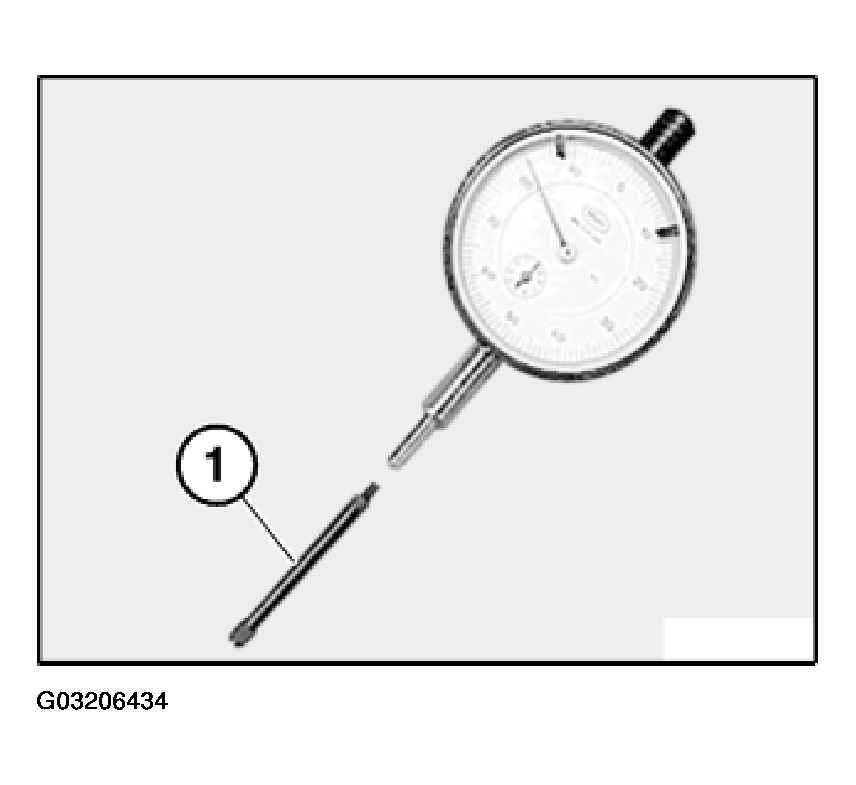

Prepare special tool kit 13 0 150: Insert extension pin (1) into dial gauges.

Fig 7: Inserting Extension Pin

Courtesy of BMW OF NORTH AMERICA, INC.

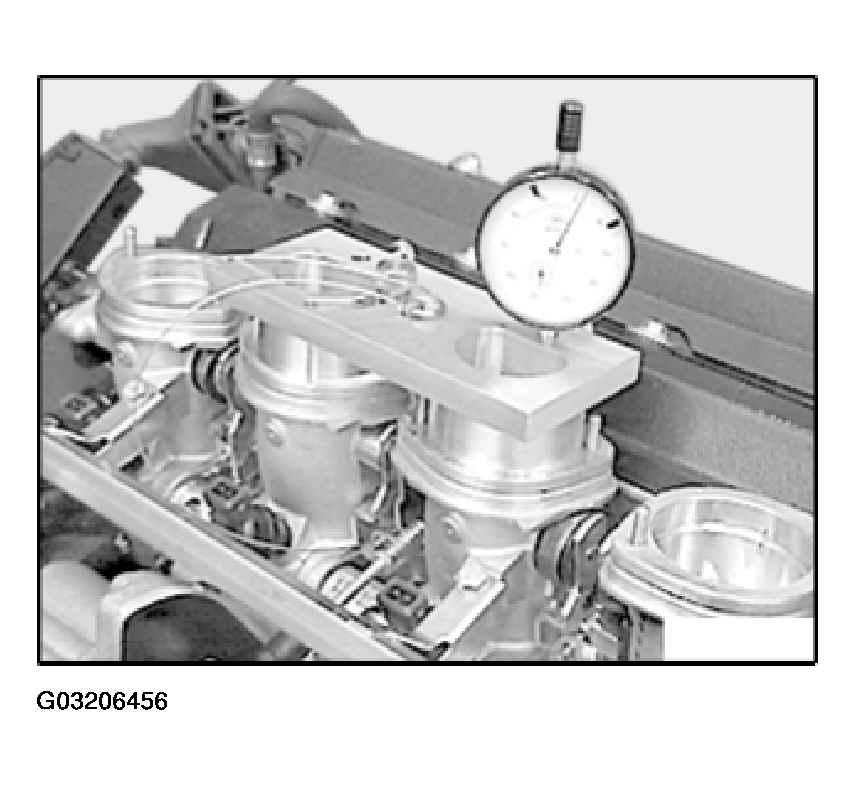

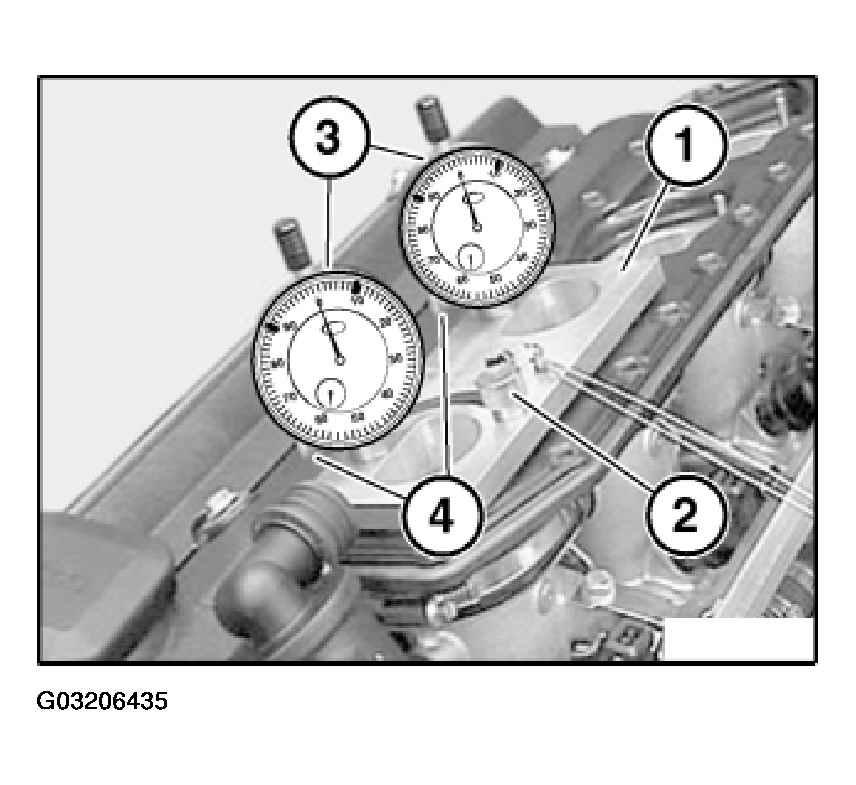

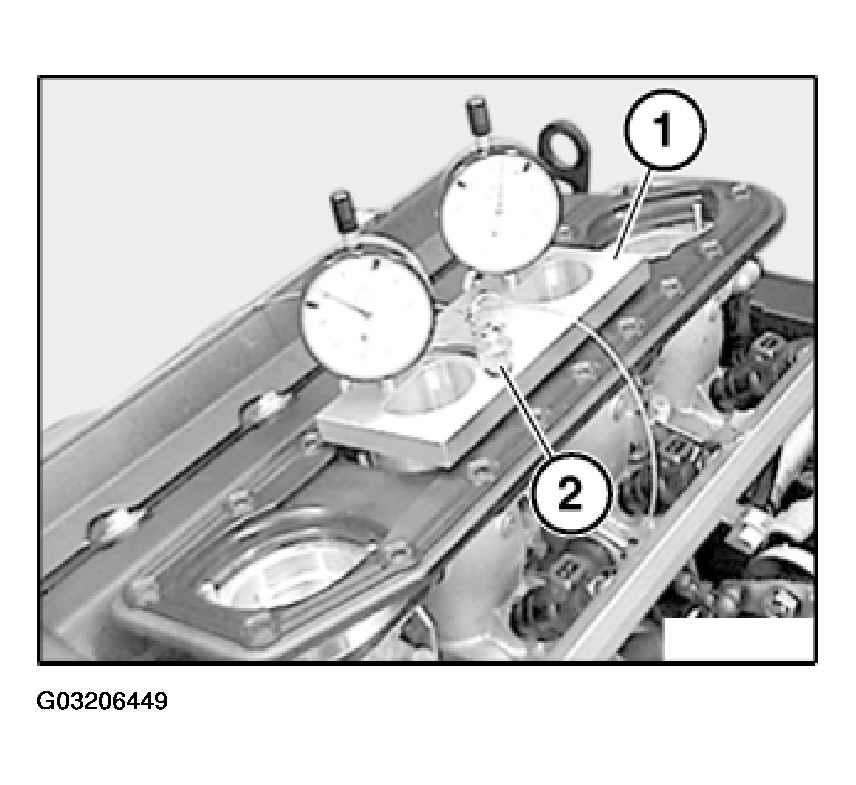

Place dial gauge plate (1) on throttle body of cylinders 1 and 2.

The dial gauge supports must rest on the side of the throttle body facing the cylinder head.

Tighten knurled screw (2) hand-tight.

Insert dial gauges (3) with inserted extension pins into supports on dial gauge plate until small needles point roughly to 5 and large needles point upwards.

Tighten knurled screws (4) hand-tight.

Fig 8: Placing Dial Gauge Plate On Throttle Body Of Cylinders

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: If adjusting screw is difficult to move:

Spray adjusting screw with suitable lubricating oil.
Unscrew adjusting screw and then screw in again.

Work with care to avoid deforming the throttle lever.

Pull on pull rod until adjusting screws are easily accessible.

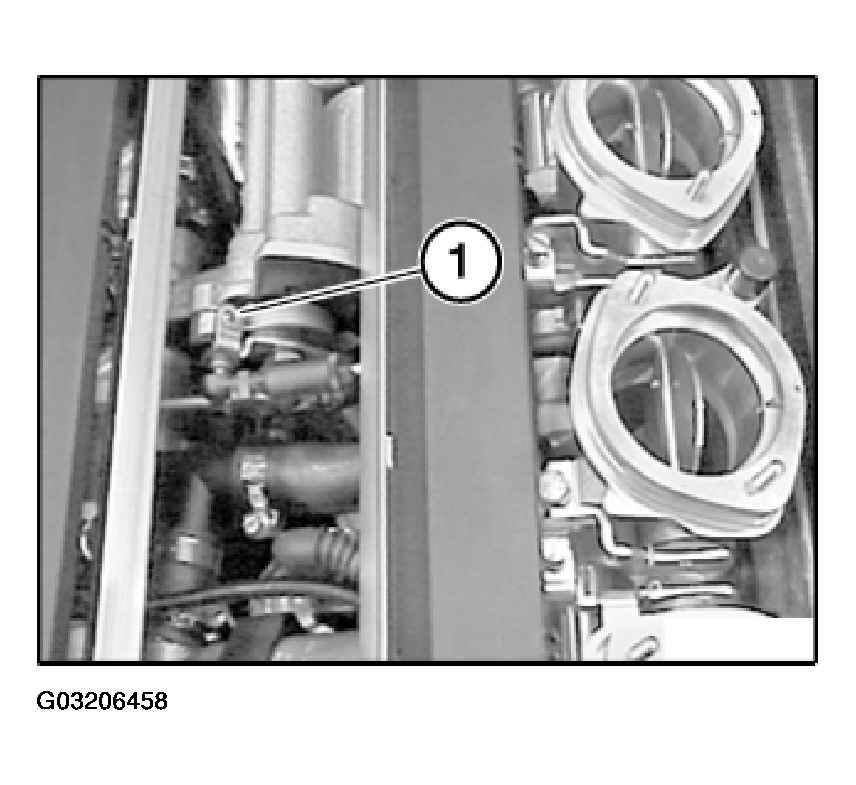

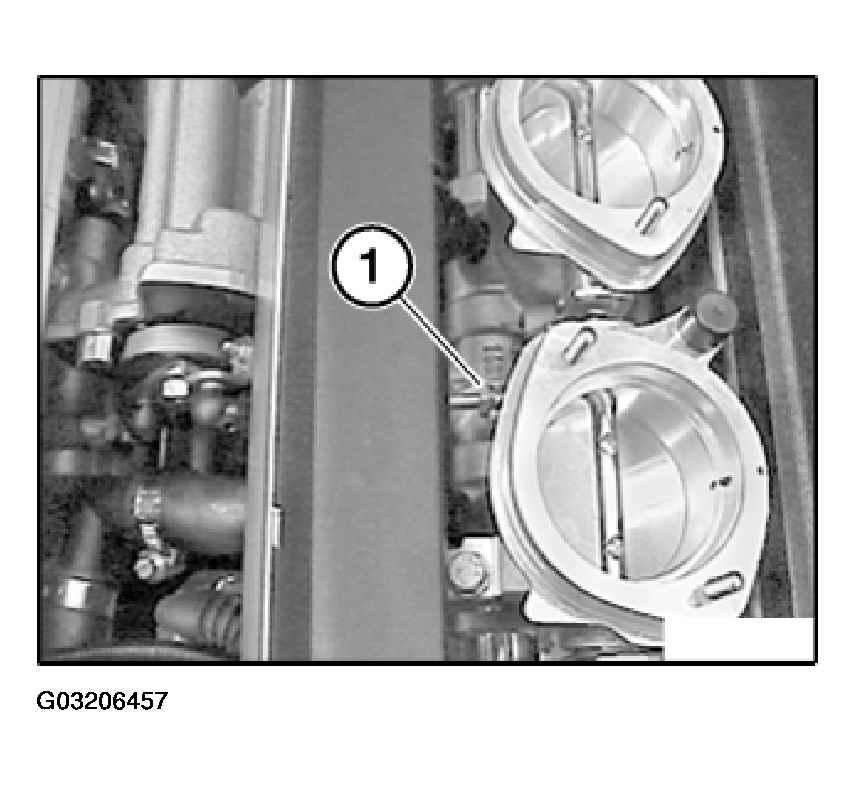

Screw in adjusting screws (1) between throttle body 1 and 2 and throttle body 2 and 3 only until it is possible to insert fork-shaped shim between locking washer of spring bolt and throttle lever.

Fig 9: Locating Adjusting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Work with care to avoid deforming the throttle lever.

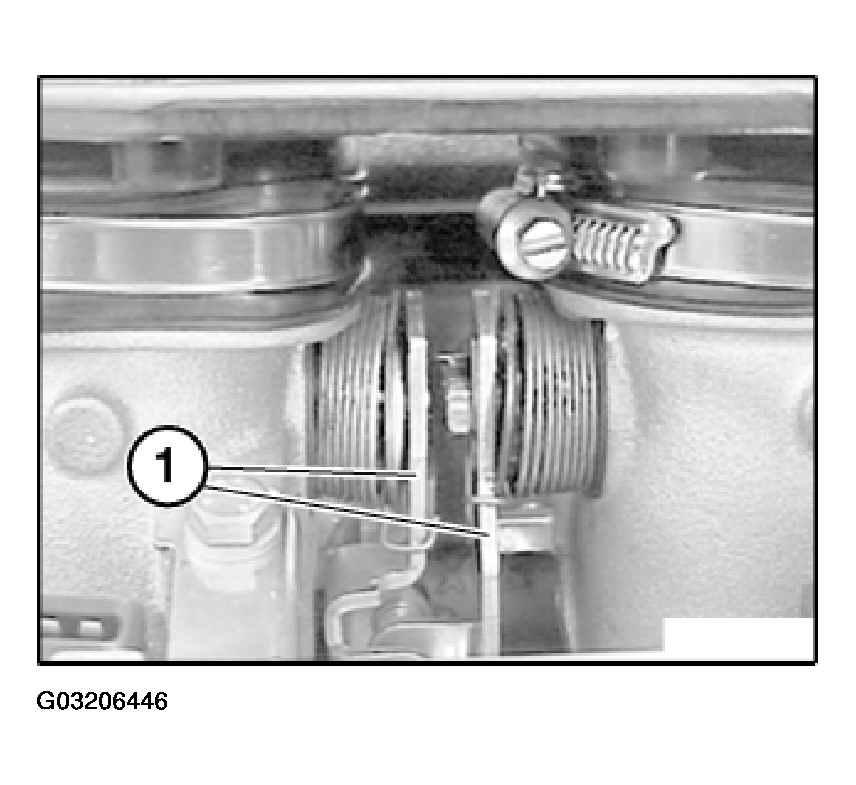

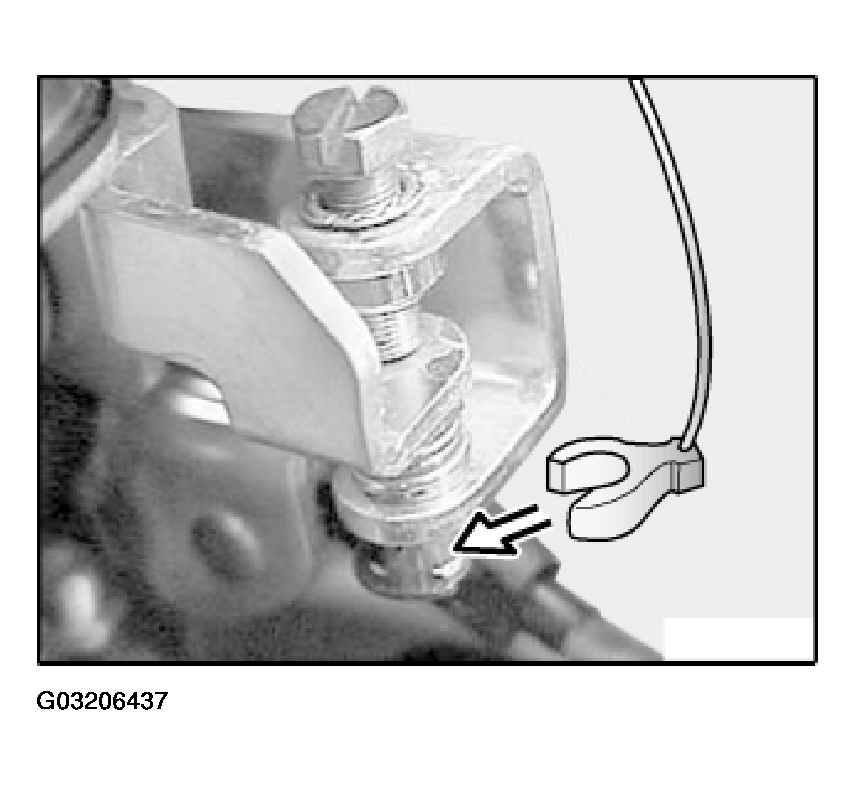

Insert fork-shaped shims between locking washer of spring bolt and throttle lever of both adjusting screws.

Fig 10: Inserting Shims

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Insert shim so that there is a sufficient gap to adjoining components when throttles are closed. To prevent the measurement result from being distorted, it is essential to ensure that the shim can move freely.

Turn adjusting screws back (end of adjusting screw flush with thread insert).

NOTE: Throttle pairs 1/2 and 3/4 are thus disengaged from each other (adjusting screw between throttle bodies 2 and 3).
Throttles 1 and 2 are likewise disengaged from each other (adjusting screw between throttle bodies 1 and 2).
Throttle 1 can be opened a little without throttle 2 being moved and vice versa. When throttle 2 is opened slightly, throttles 3 and 4 are not moved and vice versa. Check disengagement while observing dial gauges and/or throttle levers.

NOTE: If the still engaged throttles 3 and 4 are opened a little and the dial gauge immediately indicates movement in throttle 2 in the process, the adjusting screw between throttle bodies 3 and 4 is unscrewed too far.
Screw in adjusting screw between throttle bodies 3 and 4 until error of insufficient disengagement is rectified.

If now the small needle does not point to 5 and the large needle does not point upwards, correct the height of the dial gauges slightly.

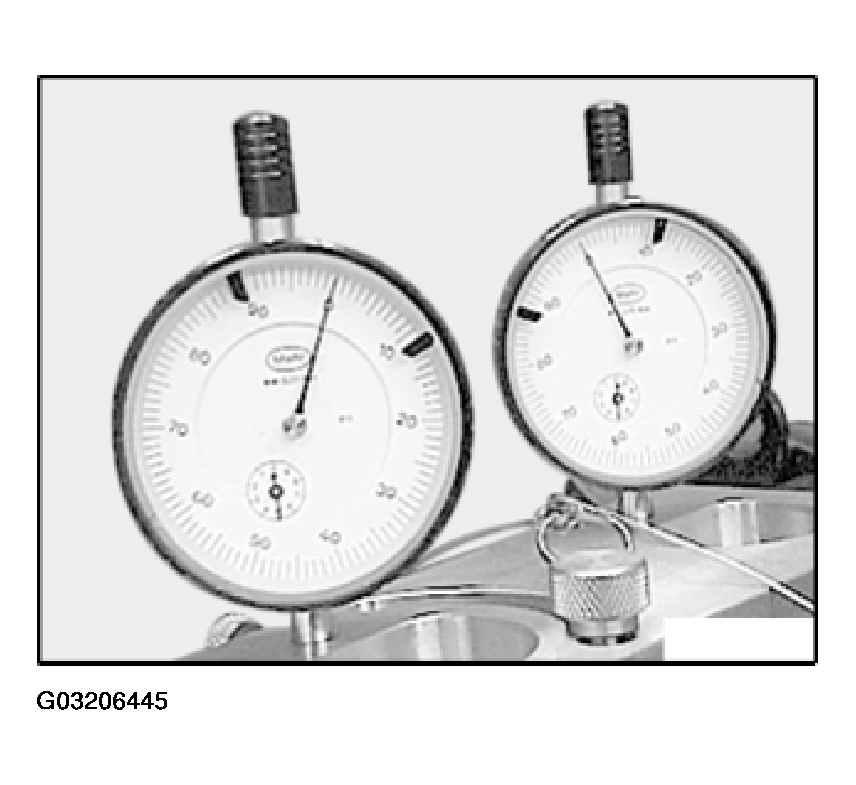

Turn dials on both dial gauges so that large needles point to zero.

Fig 11: View Of Dial Gauges

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Note position of small needles (roughly at 5). Failure to comply may result in an error of a full needle revolution.

Raise throttle levers (1) between throttle bodies 1 and 2 slightly and then release several times to check whether large needles always point to zero.

Fig 12: Raising Throttle Levers Between Throttle Bodies

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, correct dials.

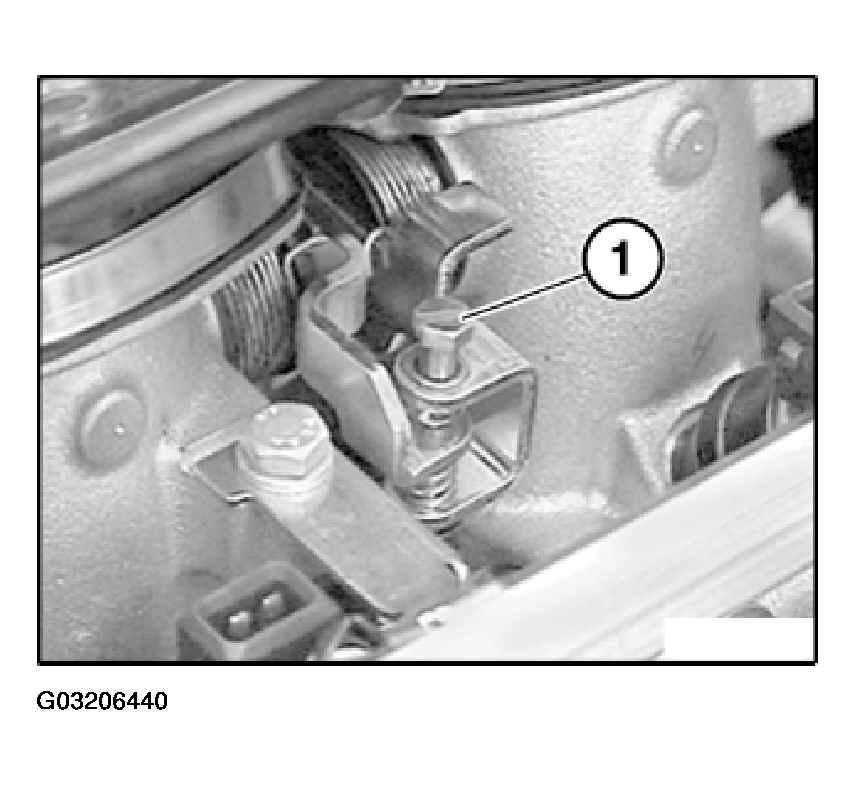

Screw in adjusting screw (1) between throttle bodies 1 and 2 until fork-shaped shim is free.

Fig 13: Locating Adjusting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove shim.

NOTE: Fork-shaped shim at adjusting screw between throttle bodies 2 and 3 remains inserted.

Unscrew adjusting screw between throttle bodies 1 and 2 again until both large dial gauge needles point to zero and small needles are in previous position (roughly at 5).

Raise throttle levers (1) between throttle bodies 1 and 2 slightly and then release several times to check whether large needles always point to zero.

Fig 14: Raising Throttle Levers

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not press throttle levers shut.

If necessary, make correction by turning adjusting screw.

CAUTION: Permissible tolerance is +/- 0.01 mm per dial gauge (space between two strokes on large dial).
Check position of small needles.

Setting throttles 3 and 4:

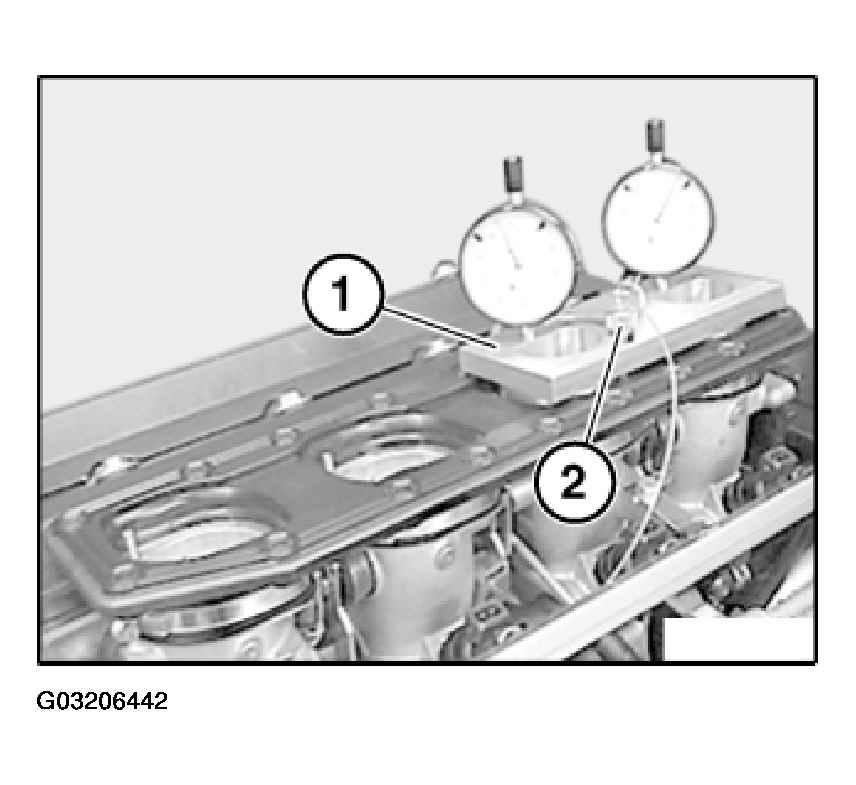

Place dial gauge plate (1) on throttle body of cylinders 3 and 4. Fork-shaped shim at adjusting screw between throttle bodies 2 and 3 remains inserted.

Tighten knurled screw (2) hand-tight.

Fig 15: Placing Dial Gauge Plate On Throttle Body Of Cylinders

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in adjusting screws (1) between throttle bodies 3 and 4 until it is possible to insert fork-shaped shim between locking washer of spring bolt and throttle lever.

Fig 16: Locating Adjusting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Work with care to avoid deforming the throttle lever.

Insert fork-shaped shim between locking washer of spring bolt and throttle lever.

Fig 17: Inserting Shim

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Insert shim so that there is a sufficient gap to adjoining components when throttle is closed. To prevent the measurement result from being distorted, it is essential to ensure that the shim can move freely.

Turn adjusting screws back (end of adjusting screw flush with thread insert).

NOTE: Throttles 3 and 4 are thus now disengaged from each other.
Throttle 3 can be opened a little without throttle 4 being moved and vice versa. When throttle 3 is opened slightly, throttles 1 and 2 are not moved and vice versa. Check disengagement while observing dial gauges and/or throttle levers.

Turn dials on both dial gauges so that large needles point to zero.

Fig 18: View Of Dials

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Note position of small needles (roughly at 5). Failure to comply may result in an error of a full needle revolution.

Raise throttle levers (1) between throttle bodies 3 and 4 slightly and then release several times to check whether large needles always point to zero.

Fig 19: Raising Throttle Levers

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, correct dials.

Screw in adjusting screw (1) between throttle bodies 3 and 4 until fork-shaped shim is free.

Fig 20: Locating Adjusting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove shim.

Unscrew adjusting screw (1) between throttle bodies 3 and 4 again until both large dial gauge needles point to zero and small needles are in previous position (roughly at 5).

Raise throttle levers (1) between throttle bodies 3 and 4 slightly and then release several times to check whether large needles always point to zero.

Fig 21: Raising Throttle Levers

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not press throttle levers shut.

If necessary, make correction by turning adjusting screw.

CAUTION: Permissible tolerance is +/- 0.01 mm per dial gauge (space between two strokes on large dial).
Check position of small needles.

Setting throttle pairs 1/2 and 3/4 to each other:

Place dial gauge plate (1) on throttle body of cylinders 2 and 3. Fork-shaped shim at adjusting screw between throttle bodies 2 and 3 remains inserted.

Tighten knurled screw (2) hand-tight.

Fig 22: Placing Dial Gauge Plate On Throttle Body Of Cylinders

Courtesy of BMW OF NORTH AMERICA, INC.

Turn dials on both dial gauges so that large needles point to zero.

NOTE: Note position of small needles (roughly at 5). Failure to comply may result in an error of a full needle revolution.

Fig 23: Positioning Of Small Needles

Courtesy of BMW OF NORTH AMERICA, INC.

Raise throttle levers (1) between throttle bodies 2 and 3 slightly and then release several times to check whether large needles always point to zero.

Fig 24: Raising Throttle Levers Between Throttle Bodies

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, correct dials.

Screw in adjusting screw between throttle bodies 2 and 3 until fork-shaped shim is free.

Fig 25: Locating Adjusting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove shim.

Unscrew adjusting screw (1) between throttle bodies 2 and 3 until both large dial gauge needles point to zero and small needles are in previous position (roughly at 5).

By pulling on pull rod several times, slightly open throttles and then close again.

Return throttles slowly to stops.

Check whether large needles always point to zero. If necessary, make correction by turning adjusting screw.

CAUTION: Permissible tolerance is +/- 0.01 mm per dial gauge (space between two strokes on large dial).
Check position of small needles.

Setting throttles on cylinder bank 5-8:

NOTE: Set the throttles on cylinder bank 5-8 in the same way as those on cylinder bank 1-4.
Begin setting on throttle pair 8/7.
The description of setting throttles 1 and 2 also applies to setting throttles 8 and 7.
The description of setting throttles 3 and 4 also applies to setting throttles 6 and 5.

Synchronizing cylinder banks with each other:

NOTE: This synchronization must be carried out if the:

pull rod has been replaced
throttle actuator has been replaced

NOTE: Remove the sealing flange so that it is possible to measure the full throttle opening (when setting the full load adaptation stop) with a standard slide caliper.

Remove sealing flange for intake air manifold on left (cylinders 5 to 8), refer to 11 61 056 REPLACING SEALING FLANGE FOR LEFT OR RIGHT INTAKE AIR MANIFOLD (S62) .

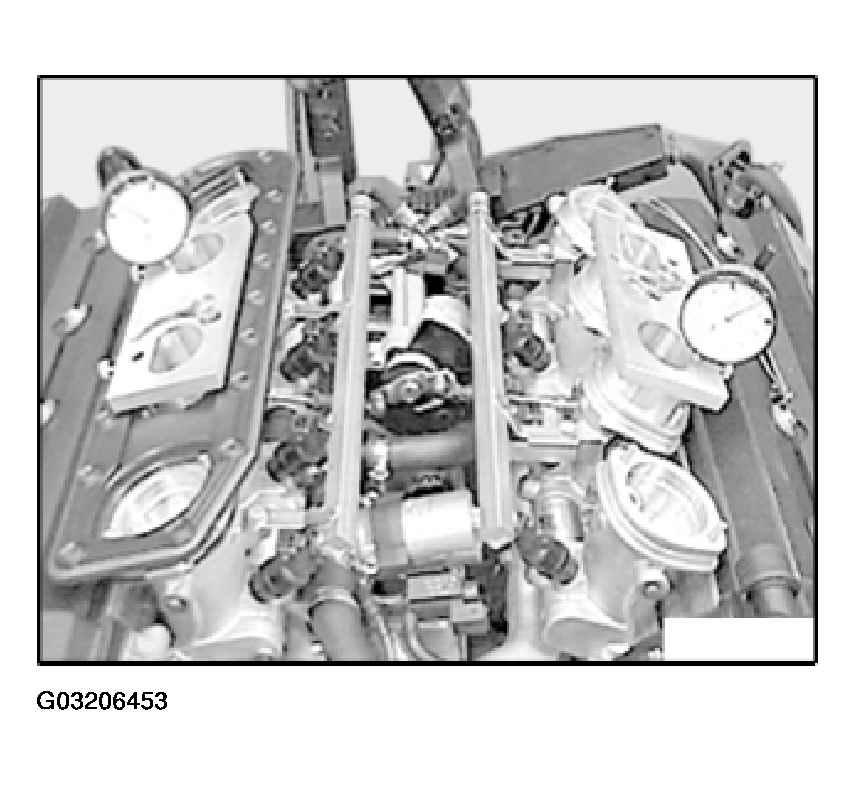

Position dial gauge plates on throttle body of cylinders 2 and 3 and throttle body of cylinders 6 and 7. Mount dial gauges in dial gauge plate supports for measuring at throttle bodies 3 and 6. If necessary, press pull rods off ball heads on servomotor side.

Fig 26: Positioning Dial Gauge Plates On Throttle Body Of Cylinders

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To simplify synchronization, correct height of dial gauges in such a way that large needles point upwards.
Turn dials on both dial gauges so that large needles point to zero.
Gently open and close each throttle bank several times to check if the large needles are always pointing to zero.
If necessary, correct dials.

CAUTION: After unclipping pull rods on throttle side, return throttles slowly to stops.

NOTE: If the pull rod length has to be checked or adjusted or the pull rod has to be replaced, press the pull rod off the ball head on the throttle side. Open throttles to do so. Work carefully, do not bend throttle lever.

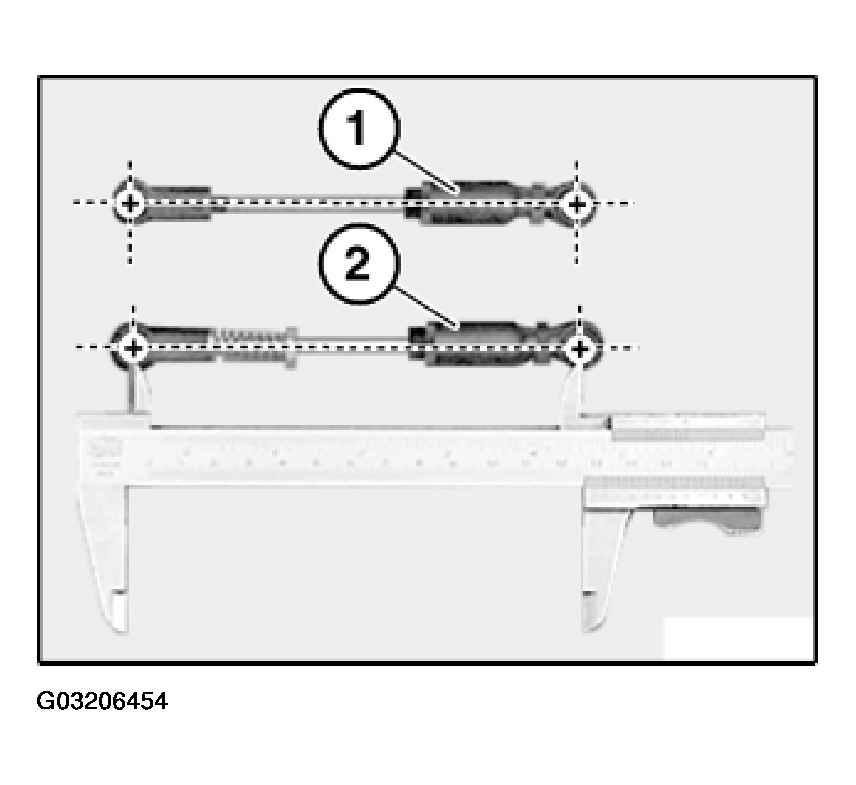

Pull rod length (center distance of ball sockets) is:

Non-adjustable pull rod (cylinder bank 1-4): 131.7 +/- 0.4 mm
Adjustable pull rod (cylinder bank 5-8): 133 +/- 0.8 mm (presetting measurement)

Fig 27: Identifying Pull Rods
Courtesy of BMW OF NORTH AMERICA, INC.

Due to tolerances, the adjustable pull rod is installed on some vehicles for both cylinder bank 1-4 and cylinder bank 5-8.

Further procedure for such vehicles, refer to 13 54 ... SUPPLEMENTARY WORK FOR BASIC THROTTLE SETTING (S62) .

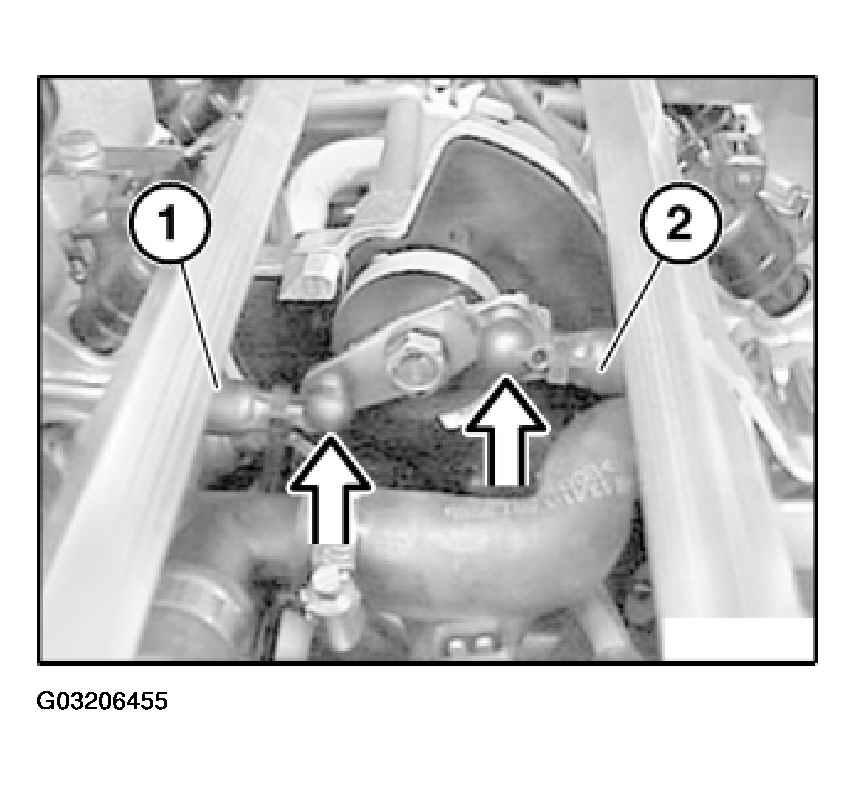

Clip in pull rod (1) on throttle and servomotor sides. Clip in adjustable pull rod (2) on throttle side and rest against ball head on servomotor side. If necessary, correct length of adjustable pull rod (2) by turning hexagon head so that ball socket is centrally aligned to ball head.

Then clip in adjustable pull rod (2) on ball head on servomotor side.

Fig 28: Clipping In Pull Rod On Throttle And Servomotor

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Because of the closing force of the return spring in the servomotor, one or both dial gauge(s) can display a slight deviation from zero (approx. 0.01 mm). Do not correct gauge dials.

Fig 29: View Of Dial Gauge

Courtesy of BMW OF NORTH AMERICA, INC.

Connect servomotor to engine wiring harness.

Activate servomotor by means of DIS Tester or MoDiC to specified value 1 %.

CAUTION: Do not open throttles by hand.
Servomotor shaft with twin lever would thus receive a different radial position. This would result in an incorrect measurement result and incorrect throttle setting.

When the servomotor is activated at 1 %, throttles 3 and 6 are opened to such an extent that the dial gauges indicate a change between 0.2 mm and 0.4 mm. Check whether both dial gauges indicate the same value.

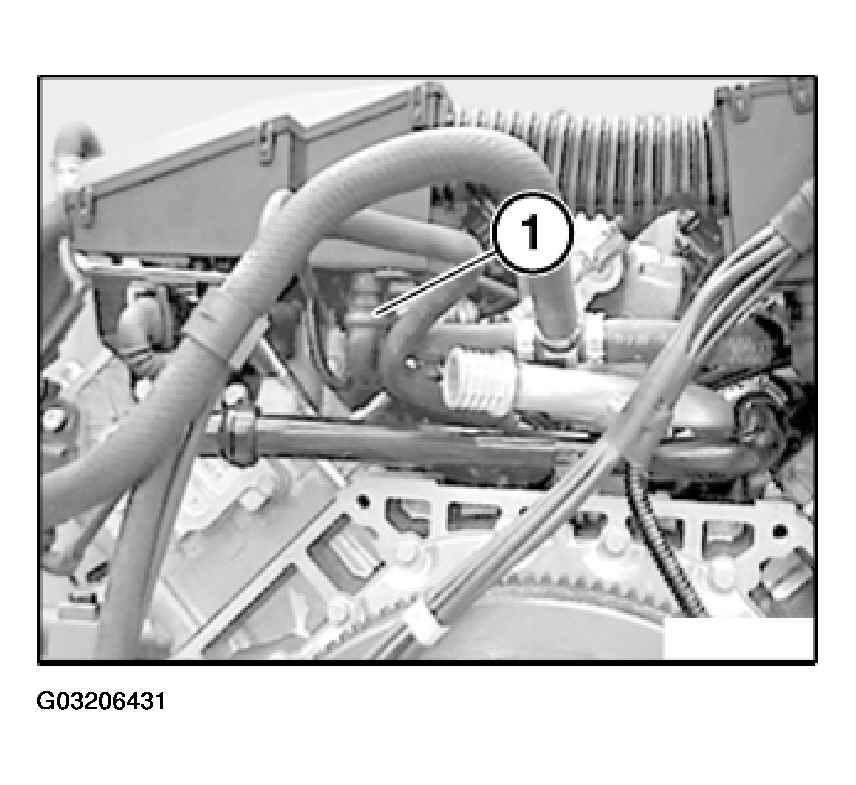

If necessary, turn hexagon head (1) on adjustable pull rod (cylinder bank 5-8) slightly until both dial gauges indicate the same opening value for throttles 3 and 6.

Fig 30: Locating Hexagon Head

Courtesy of BMW OF NORTH AMERICA, INC.

Enter specified value of 0 % and re-enter specified value of 1 %. Check whether both dial gauges indicate the same opening value for throttles 3 and 6.

Deviation between both dial gauges must be less than 0.03 mm.

Adjusting full-load adaptation stop:

Activate servomotor until throttles are fully open and stop screw (1) rests against stop lug.

Fig 31: Locating Stop Screw

Courtesy of BMW OF NORTH AMERICA, INC.

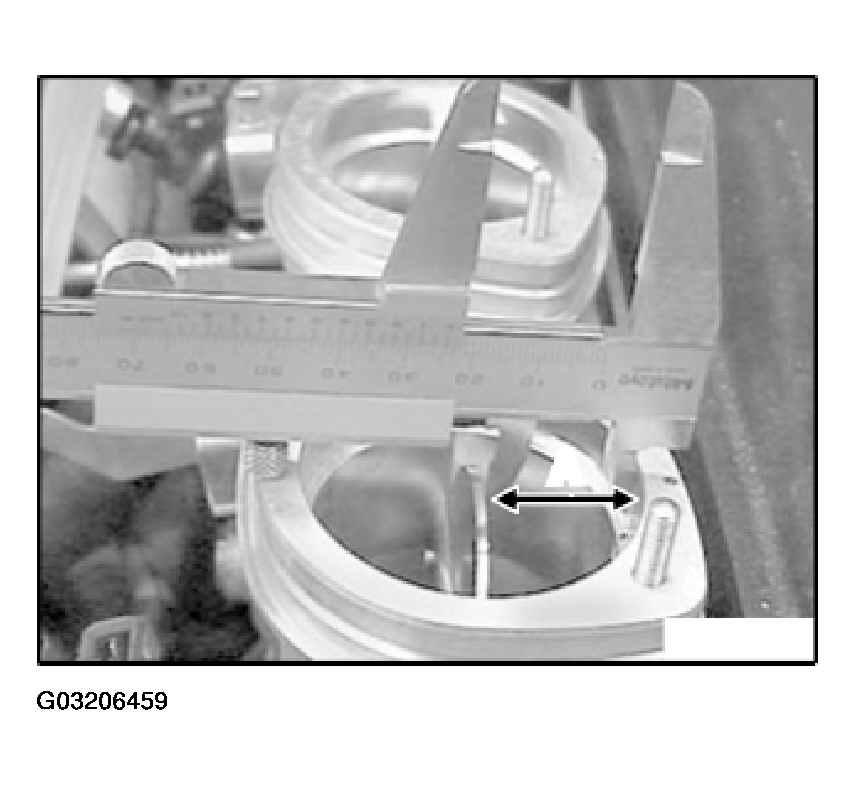

Turn stop screw to set measurement (A) of 24.2 mm +/- 0.5 mm. Carry out measurement on all throttles on cylinder bank 5-8. Activate servomotor several times and check whether measurement (A) is in tolerance range on all 4 throttles.

NOTE: Throttles 5 to 8 are opened here beyond the vertical position.
Throttles 1 to 4 open noticeably less. Do not correct.

Fig 32: Measuring Throttles On Cylinder Bank

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If measurement (A) = 24.2 mm +/- 0.5 mm cannot be adjusted, the non-adjustable pull rod must be replaced by an adjustable pull rod and the supplementary work carried out, refer to 13 54 ... SUPPLEMENTARY WORK FOR BASIC THROTTLE SETTING (S62)

CAUTION: As the engine wiring harness is only partially mounted, fault messages are stored in the DME control unit.

Remove sealing flange for intake air manifold on left (cylinders 5 to 8), refer to 11 61 056 REPLACING SEALING FLANGE FOR LEFT OR RIGHT INTAKE AIR MANIFOLD (S62) .

Assemble engine.

NOTE: Interrogate fault memory of DME control unit.
Check stored fault messages.
Rectify faults.
Now clear the fault memory.
