65 50 165 Removing and installing/replacing trim for rear monitor display at rear (older version)
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with NOTES
on protection against electrostatic damage (ESD protection).
Necessary preliminary work:

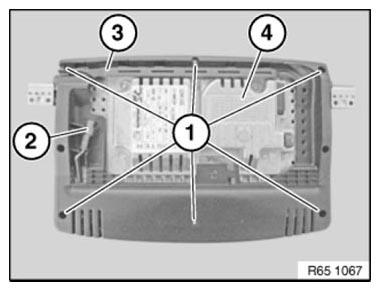

Release screws (1).
Tightening torque 65 50 1AZ .
Remove cover (3) from rear monitor (4), unclipping plug (2) and feed out cable.
Installation note:
Make sure cover (3) is correctly seated on rear monitor (4).
