65 50 125 Removing and installing/replacing left or right rear monitor (older version)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Installation note:

Remove REAR PASSENGER COMPARTMENT MONITOR COVER

Release screws (1).

Remove rear passenger compartment monitor (2) from holder (3).

Installation note:

Make sure rear passenger compartment monitor (2) is correctly seated on holder (3).

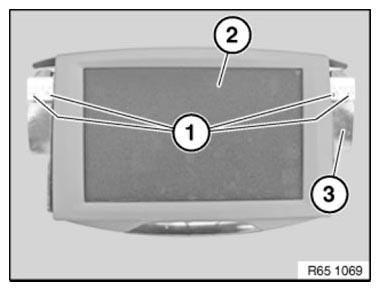

Fig 1: Identifying Screws, Rear Passenger Compartment Monitor And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections and disconnect.

Remove monitor in rear (1).

Fig 2: Removing Plug Connections And Monitor

Courtesy of BMW OF NORTH AMERICA, INC.
