65 50 025 Removing and installing/replacing video switch

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

IMPORTANT: Comply with instructions on HANDLING OPTICAL FIBRES .

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE LEAD
Remove LUGGAGE COMPARTMENT WHEEL ARCH TRIM on left.

NOTE: Video switch is located on the back of the bracket for the TV module.

Release screws (1) and nuts (2).

Remove TV module (3) including bracket.

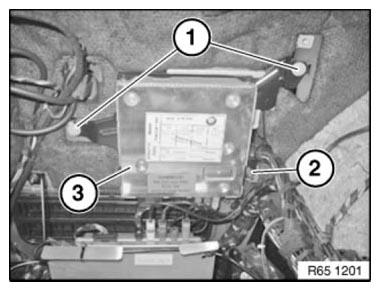

Fig 1: Identifying Screws, Nuts And TV Module

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Unfasten plug connection (2) and disconnect.

Remove video switch (3).

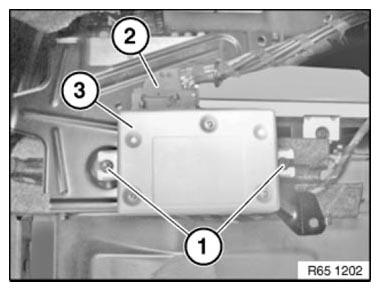

Fig 2: Identifying Screws, Plug Connection And Video Switch

Courtesy of BMW OF NORTH AMERICA, INC.
