65 50 030 Removing and installing/replacing TV module
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION)
.
IMPORTANT:
Comply with instructions on HANDLING OPTICAL FIBRES
.
Necessary preliminary tasks:
- Clamp off BATTERY NEGATIVE LEAD .
- Remove LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

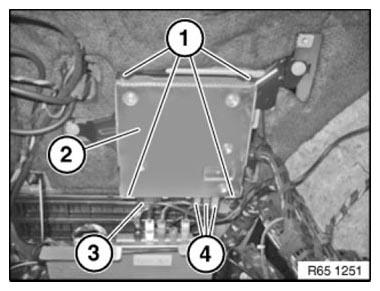

Release screws (1).
Remove TV module (2).
Unlock and detach plug connections (3 and 4).
Installation:
Make sure plug connections (4) are in correct color sequence.
