66 31 006 Removing and installing (replacing) ACC sensor

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This service information is valid for the entire F-series with the new ACC sensor.

For previous version, refer to REMOVING/INSTALLING/REPLACING SHORT-RANGE SENSOR (2009-2010) and REMOVING/INSTALLING/REPLACING LONG-RANGE SENSOR (2009-2010) .

Necessary preliminary tasks:

Remove the ornamental GRILLE FOR THE BUMPER PANEL (CENTER) .

Loosen screws in marked area on the rear side of the ACC sensor (1).

Tightening torque 66 31 1AZ .

Unfasten plug connection (2) and disconnect.

Remove ACC sensor (1).

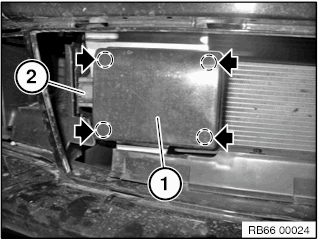

Fig 1: Removing ACC Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

If applicable, ADJUST THE ACC SENSOR .

Replacement:

Carry out VEHICLE PROGRAMMING AND ENCODING
Carry out ADJUSTMENT OF ACC SENSOR
