26 11 100 Removing and installing three-hole flange

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:

The slide-in nut must be replaced by a new one.

The sunk nut already has a screw locking.

After the propeller shaft has been screwed into the rear axle final drive (sunk nut), a hardening time of at least 2 hours  is absolutely necessary.

The hardening time may be extended at lower temperatures!

Failure to comply with these instructions may cause serious damage!

Necessary preliminary work:

Since the three-hole flange, the flexible disc and the propeller shaft are balanced as a single unit, the balance quality of the propeller shaft, flexible disc and three-hole flange may be compromised slightly when the three-hole flange is replaced.

IMPORTANT:

Before removing propeller shaft:

The three-hole flange and the propeller shaft must be reassembled in the same position.

Mark three-hole flange (1), flexible disc (2) and propeller shaft (3) in one plane.

Installation note:

Replace ZNS bolts and self-locking nuts.

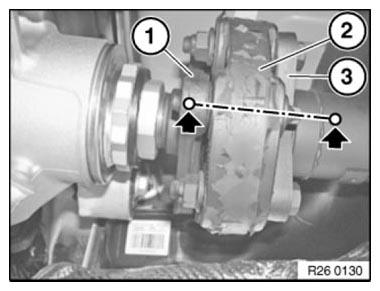

Fig 1: Marking Three-Hole Flange, Flexible Disc And Propeller Shaft In One Plane
G06894872Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT:

The sunk nut must be opened against direction of travel in clockwise direction.

If an attempt is made to open the sunk nut in direction of travel in clockwise direction, the sunk nut is automatically screwed in further and the insert collar of the 12-edge flange nut is severely damaged.

If the insert collar of the flange nut was damaged, the propeller shaft can no longer  be secured using a new sunk nut and the rear axle differential must be replaced.

Release insert nut against direction of travel in clockwise direction  with special tool 33 5 040 and 33 5 070 .

Grip with special tool 23 0 020 .

Release three-hole flange (1) from bevel pinion.

Tightening torque 26 11 6AZ .

Fig 2: Removing Three-Hole Flange From Bevel Pinion Using Special Tool 23 0 020
G06894873Courtesy of BMW OF NORTH AMERICA, INC.

Remove retaining clip (1) and gasket (2).

Installation note:

Retaining clip and gasket must be replaced.

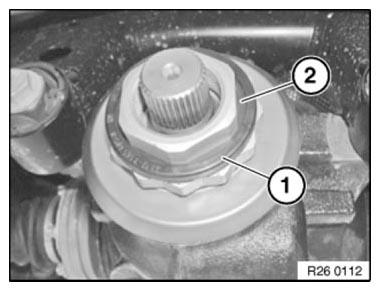

Fig 3: Identifying Clip And Gasket
G06894874Courtesy of BMW OF NORTH AMERICA, INC.

Remove insert nut (1).

Installation note:

Insert nut must be replaced.

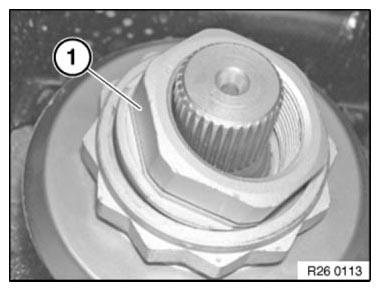

Fig 4: Identifying Insert Nut
G06894875Courtesy of BMW OF NORTH AMERICA, INC.

Before installing three-hole flange:

Clean insert collar (1) on flange nut and gearing on bevel pinion (2).

Fill insert collar (1) with grease.

See SPECIFIED GREASE .

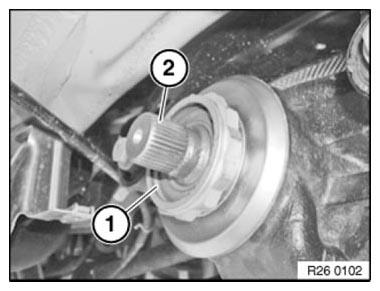

Fig 5: Identifying Collar And Bevel Pinions
G06894876Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Thread of flange hub must not  be contaminated with grease.

Clean thread (1) of flange hub to remove adhesive residues.

Clean hub teeth (2), then coat with grease.

See SPECIFIED GREASE .

Fig 6: Identifying Thread Of Flange And Hub Teeth
G06894877Courtesy of BMW OF NORTH AMERICA, INC.

Place flange nut (1) with seal in insert collar of flange nut.

Install retaining clip (2).

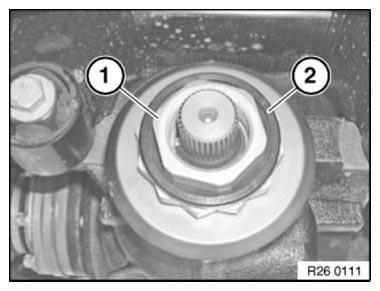

Fig 7: Identifying Flange Nut With Seal And Retaining Clip
G06894878Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT:

The bihexagonal flange nut must not be used for bracing.

Failure to comply with this instruction may result in serious damage to the rear axle final drive.

IMPORTANT: Insert nut must be screwed into place within 5 minutes.

Tightening torque 26 11 6AZ .

Slide drive flange (1) to the limit position onto insert nut and secure.

Fig 8: Sliding Drive Flange Onto Nut
G06894879Courtesy of BMW OF NORTH AMERICA, INC.
