26 11 051 Replacing flexible disc for front propeller shaft

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove PROPELLER SHAFT at transmission and center bearing.

NOTE: To protect universal joints, tie back propeller shaft in area of center mount.

Release screws and remove flexible disc (1) from propeller shaft.

Tightening torque and angle of rotation: 26 11 2AZ .

IMPORTANT: Replace ZNS bolts and self-locking nuts.

Installation note:

During installation arrows (2) on circumference of flexible disc must point to flange arms (3).

Fig 1: Locating Screws Of Flexible Disc
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Instead of conventional rubber flexible disks, F series also use aluminium flexible discs, which are also called EGG (constant velocity joints).

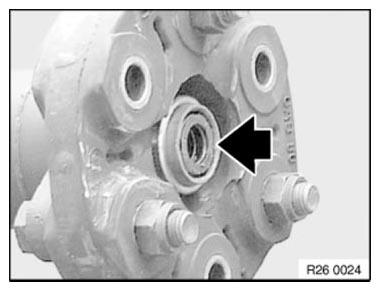

Fig 2: Locating Centering Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check centering mount.

Replace damaged CENTERING MOUNT .

Grease centering mount. See SPECIFIED GREASE .

Fig 3: Locating Propeller Shaft Centering Mount

Courtesy of BMW OF NORTH AMERICA, INC.
