52 24 420 Replacing backrest shell for rear seat

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove ARMREST FOR REAR SEAT BACKREST
Remove GUIDE SLEEVES FOR HEAD RESTRAINTS

NOTE: Removal operation is shown on left side.
Carry out removal on right side in the same way.

Disconnect all retainers.

Lever out cover welt in marked area with plastic wedge.

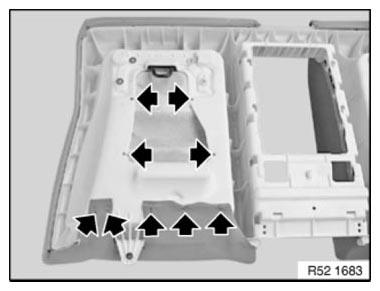

Fig 1: Locating Retainers

G06895729

Courtesy of BMW OF NORTH AMERICA, INC.

Fold back cover in upper area.

Disconnect retainers underneath.

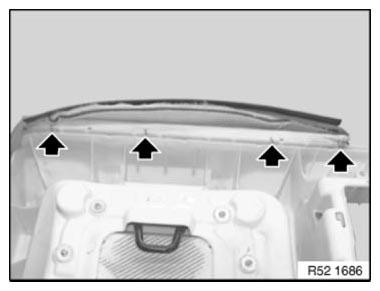

Fig 2: Locating Retainers Underneath

G06895730

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove all remnants of retainers.

Bend new retainers to shape with special tool 52 0 050 .

Disengage cover from backrest frame.

Remove cover with padding from backrest shell.

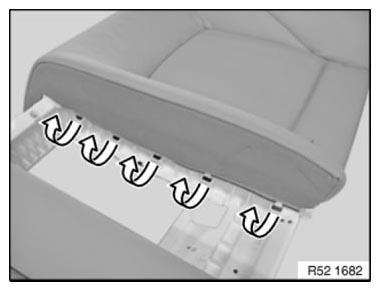

Fig 3: Removing Cover With Padding From Backrest Shell

G06895731

Courtesy of BMW OF NORTH AMERICA, INC.
